Pressure Control Pilots

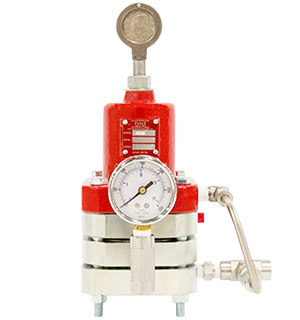

The PC48 Pressure Control Pilot is a rugged, economical pressure control pilot. It can be used anywhere pressure control of high pressure gas is required. When used in conjunction with a control valve it may serve as either a back pressure regulator or pressure reducing regulator. It can also be used to send a signal when the sense pressure goes above or falls below a given set point. The standard PC48 is available as reverse acting. It functions by sensing a high pressure signal and outputting a low pressure signal when the high pressure signal falls above the set point. A direct acting option is also available and works by outputting a low pressure signal when the high pressure signal rises above the set point. For sour service a NACE option is available.

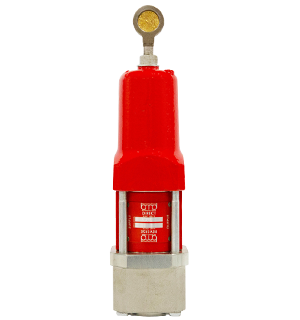

The PC88 Pressure Control Pilot is a rugged, economical pressure control pilot. It can be used anywhere pressure control of high pressure gas is required. When used in conjunction with a control valve it may serve as either a back pressure regulator or pressure reducing regulator. It can also be used to send a signal when the sense pressure goes above or falls below a given set point. The PC888 is available as direct acting or reverse acting. The action is field reversible. The PC88 Direct functions by sensing a high pressure signal and outputting a low pressure signal when the high pressure signal rises above the set point. The PC88 Reverse outputs a low pressure signal when the high pressure signal falls below the set point. For sour service a NACE option is available.

Click here to purchase Pressure Control Pilots in the MurCal web store.
