Relief Valves
ASME certified relief valves well-suited for overpressure protection of production equipment. Innovative design features ensure long-lasting set pressure repeatability and bubble-tight shutoff.

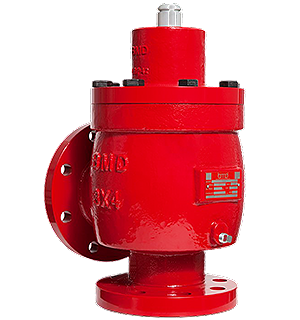

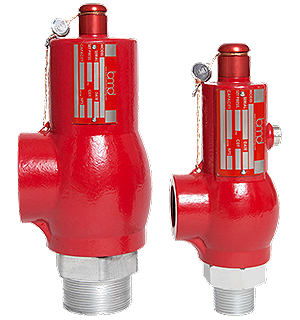

RV10 Safety Relief Valve
The RV10 Safety Relief Valve is well-suited for overpressure protection of production equipment, including compressors, scrubbers, separators, pipelines, or anywhere overpressure protection may be required.
The RV10 design incorporates a non-rising stem to give the disk full guidance while opening and closing. The non-rising stem coupled with the valve’s soft-seat design ensures long-lasting set pressure repeatability and bubble-tight shutoff. The shorter stem also makes the valve more compact, making it ideal for requirements where space may be an issue.
The RV10 is ASME certified for gas and liquid service and in available in NPT and flanged connections. Flanged sizes meet API 526 dimensions. The RV10 Series covers set pressure ranges from 15-3000 psi (103-20684 kPa) with orifice sizes ranging from D to Q. Orifice sizes exceed API minimum areas for increased flow rates.
The RV10 is manufactured in accordance with the ASME Boiler and Pressure Vessel Code, capacity tested and certified by the National Board, and meets the requirements of Section VIII, Division 1 of the ASME Code.
National Competitors: Mallard 5126/5127, Norriseal 2026/2027A
Benefits of Choosing BMD: Rugged, Compact, Freezeless, Easy Maintenance, Low-Temp Option, NACE Option
Literature
RV10 Brochure (11.06.19)
Relief Valve Cross Reference Guide
