20P-K-400-D2111 Pressure Gage, Johnston Sweeper Custom Dial (05351280)
20P-K-400-D2111 Special; Pressure Gage: "Johnston Sweeper" custom dial; NC/NR. (05351280)

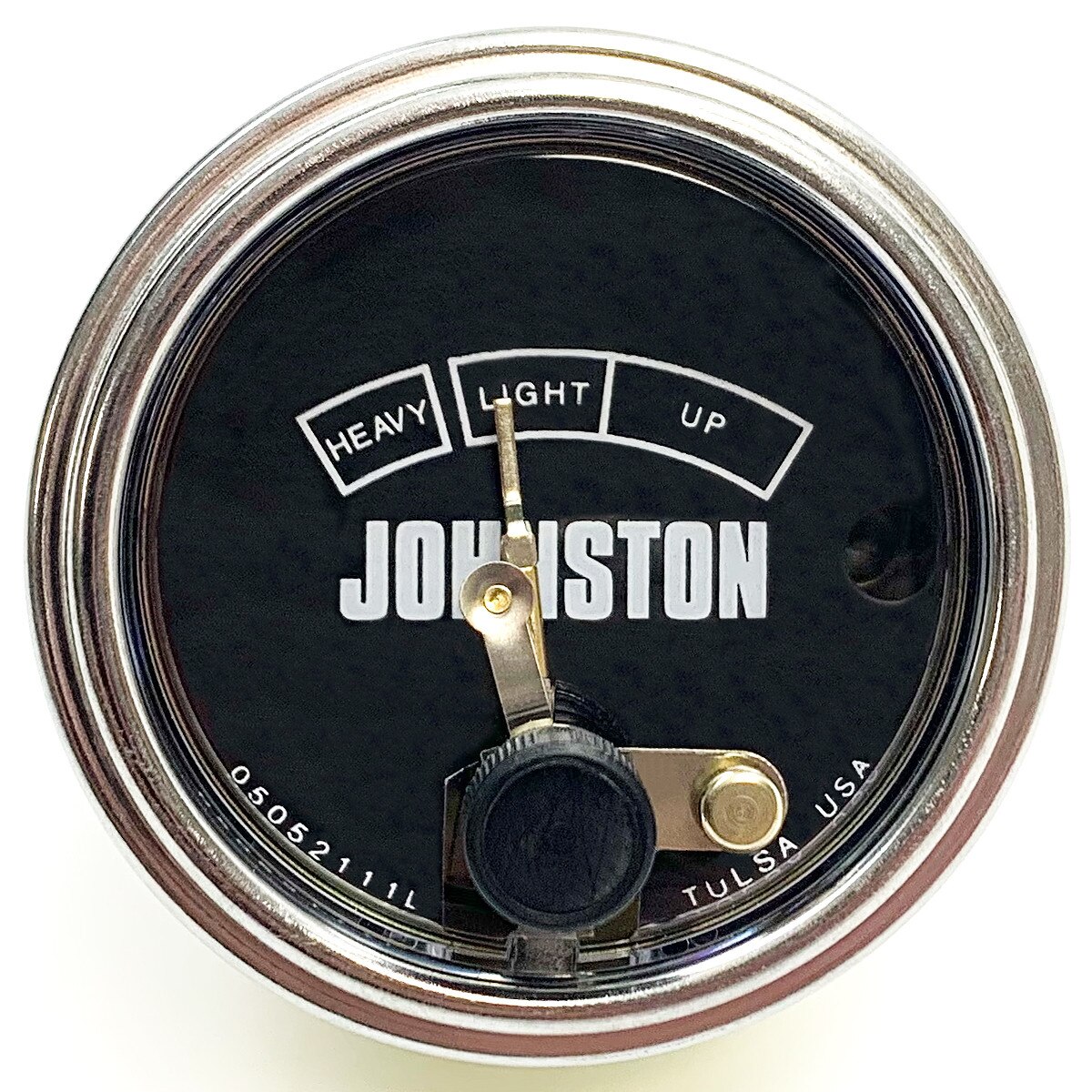

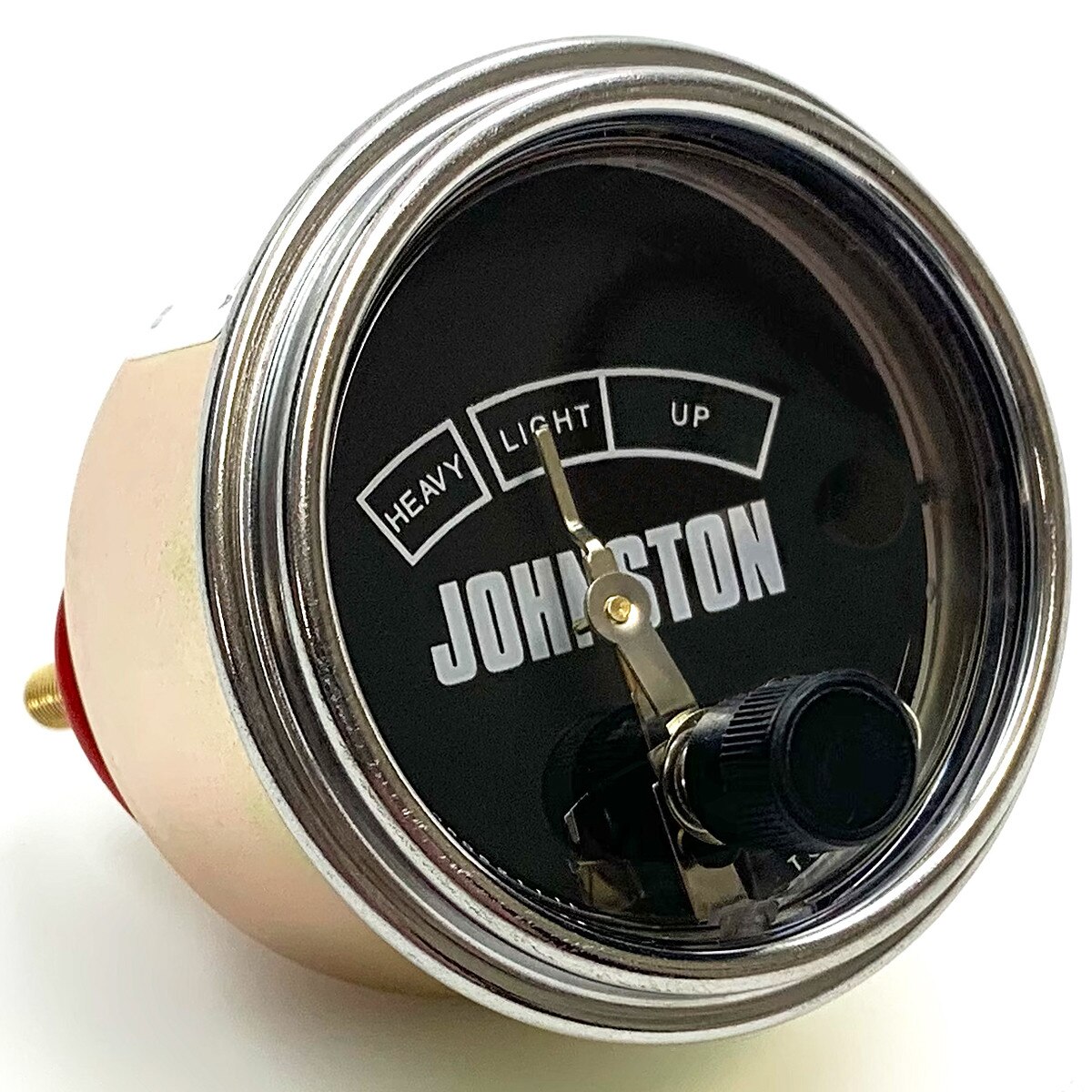

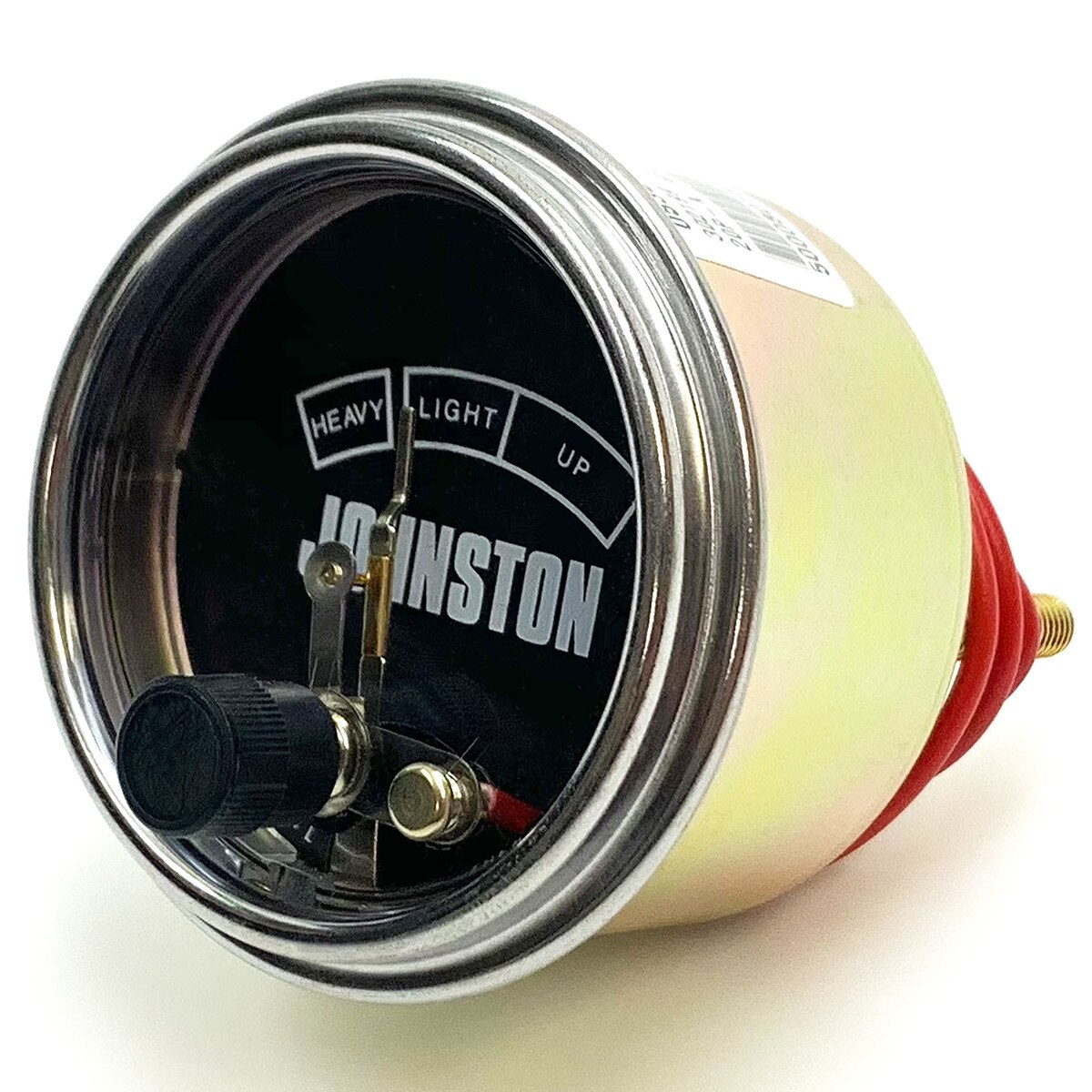

The 20P-K-400-D2111 is a 2" Pressure Swichgage® featuring an adjustable contact with a knob for easy adjustment. This pressure instrument, built with a custom dial specifically for Johnston Sweeper, has a range of 0-400 psi.

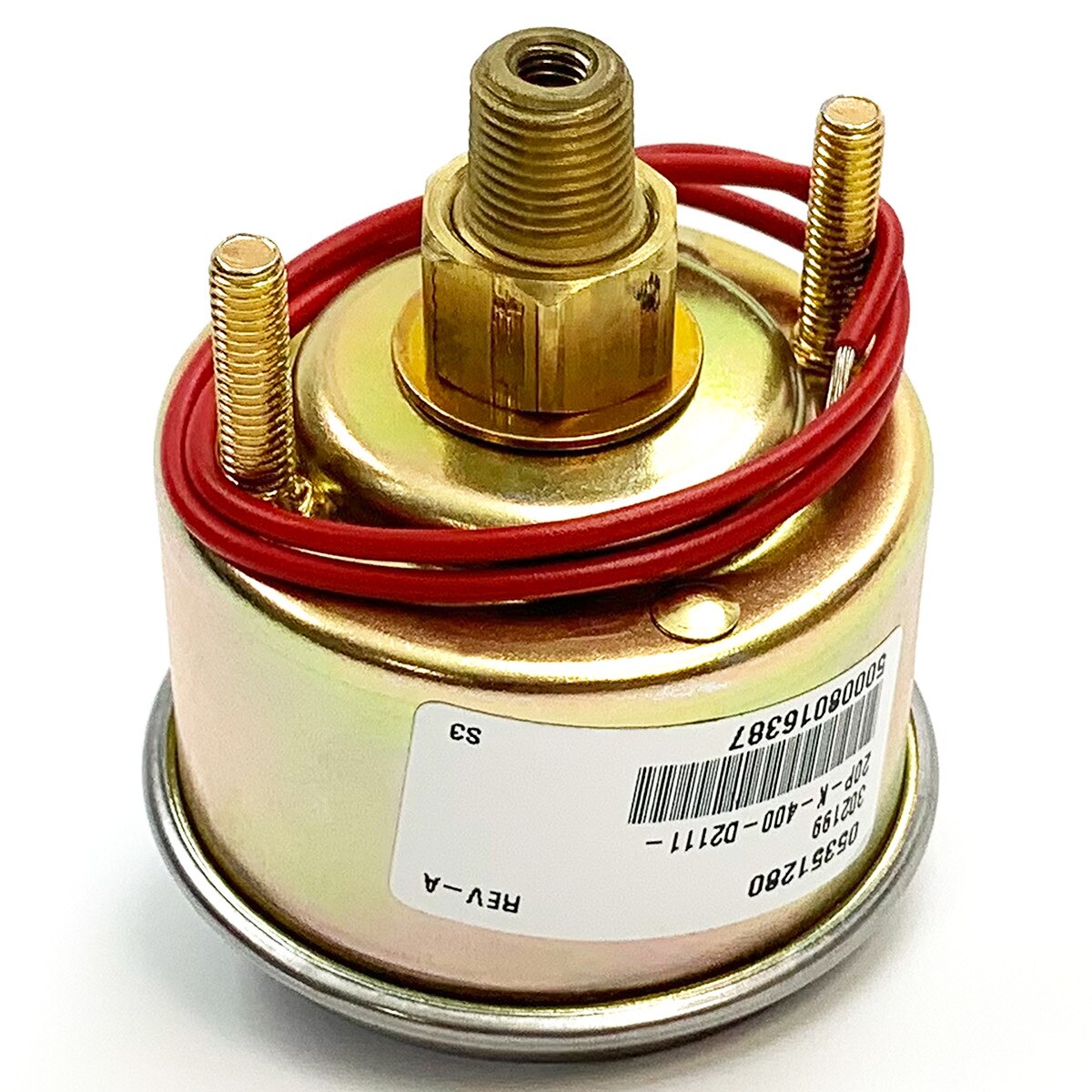

The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
Inside the 20P-K-400-D2111, the gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the case and have a self-cleaning motion to ensure electrical continuity. This popular instrument features a beryllium copper diaphragm, a 1/8-27 NPTM brass process connection, and exceeds SAE standards.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
