A25P-OS-75 2.5" Pressure Swichgage® (05704365)
A25P-OS-75 2.5" Pressure Swichgage®; Oil Sealed 0-75 PSI (05704365)

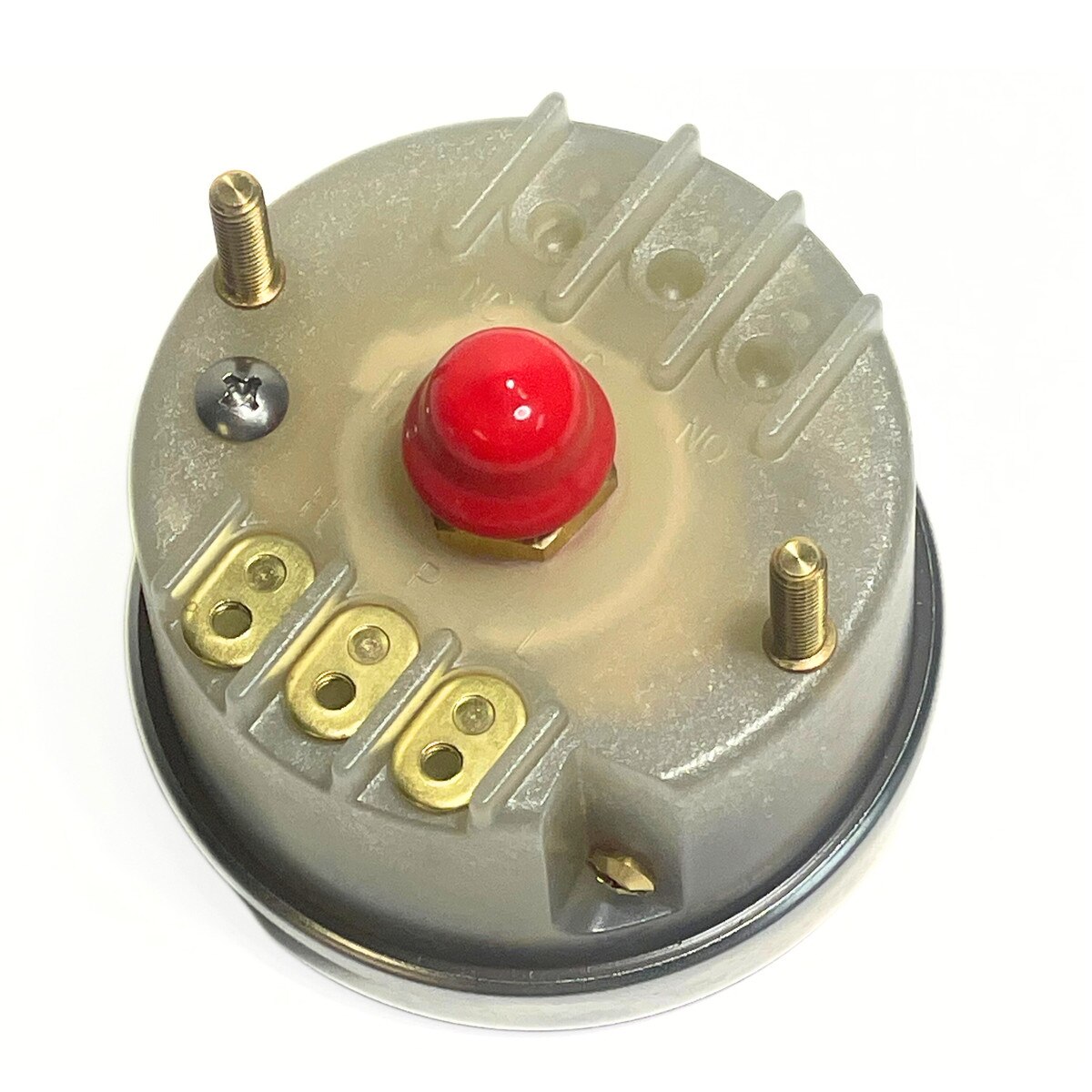

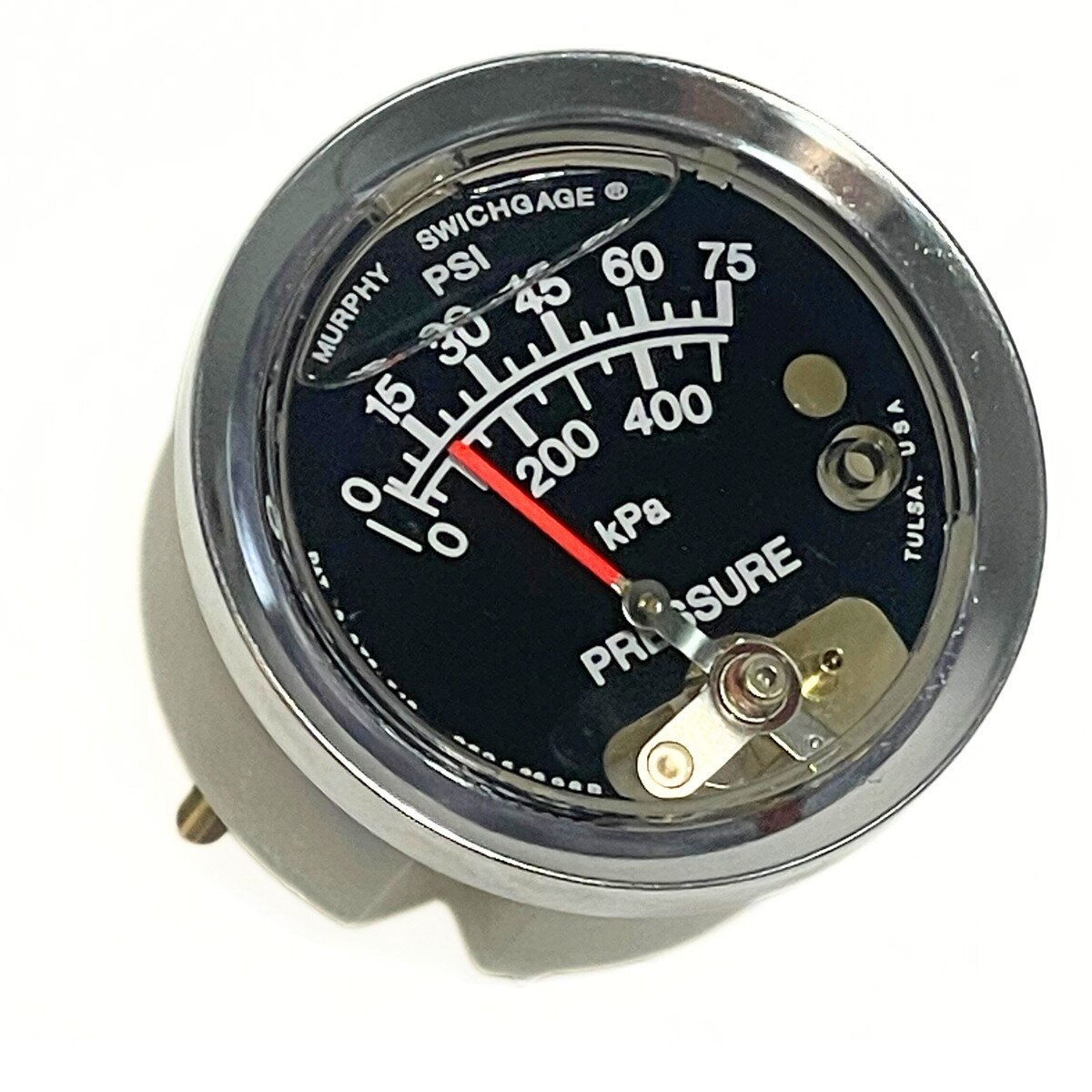

The A25P-OS-75 Pressure Swichgage® is a 2.”5 dial, oil sealed, diaphragm-actuated pressure-indicating gage, with built-in electrical switches for tripping alarms and/or shutdown devices. This dual-scale instrument has a range of 0-75 psi. These rugged instruments are face sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel and O-ring seals. These gages are sealed from the external environment. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
