A25TEF-UC-320-10-1/8 Temperature Swichgage® (10706672)

(0)No Reviews yet
SKU: A25TEF-UC-320-10-1/8 (10706672)
For Price & Availability Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

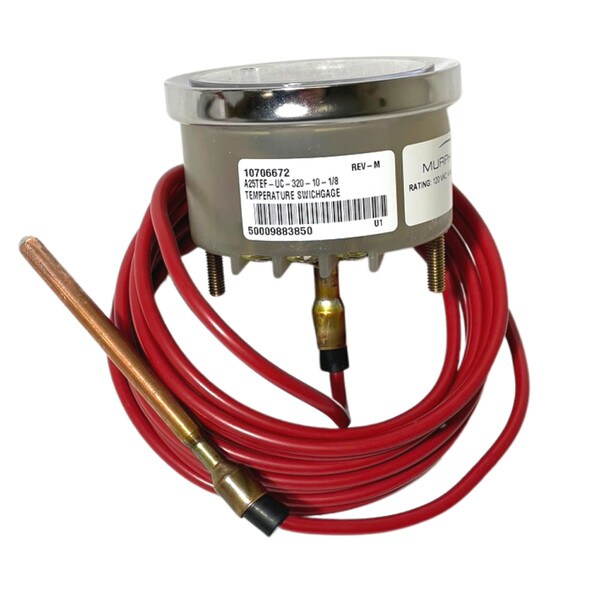

A25TEF-UC-320-10-1/8: 2.5" Temperature swichgage w/ internal SPDT snap-switch; 160-320 temp; 10ft lead; 1/8" NPT (10706672)

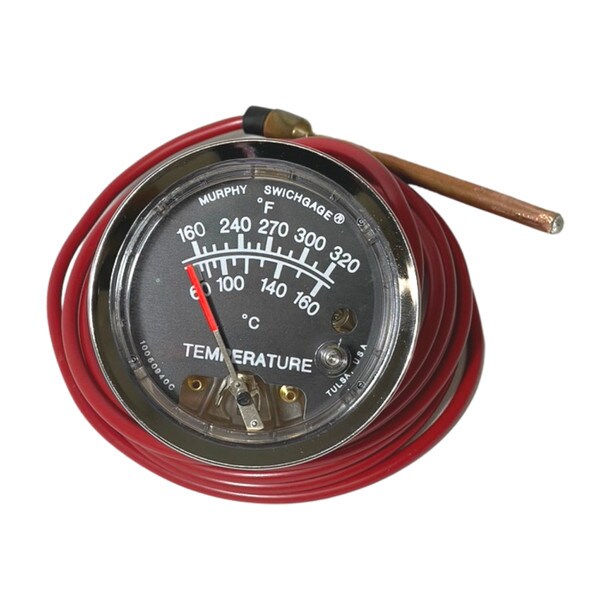

A25TEF-UC-320-10-1/8 Temperature Swichgage® is a diaphragm-actuated, 2-1/2” (64 mm) dial temperature-indicating gage, with a built-in electrical switch for tripping alarms and/or shutdown devices. This rugged, built-to-last instrument is fully sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel, and O-ring seals.

This vapor actuated gage features a sealed twelve foot (12’) capillary tube, a sensing bulb, and a 32-160°F (0-71°C) temperature range.

“E” suffix = has an internal snap-acting SPDT switch.
“F” suffix = includes FS ground stud.
UC = Temperature Bulb Style C (10010061)

For series A25T, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are isolated from ground. They have a self-cleaning motion to enhance electrical continuity. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.



  1. Sales Bulletin
  2. Installation Instructions
  3. Sensing Bulb/Scale/Capillary Length Combinations
  4. Thermowell Specifications
