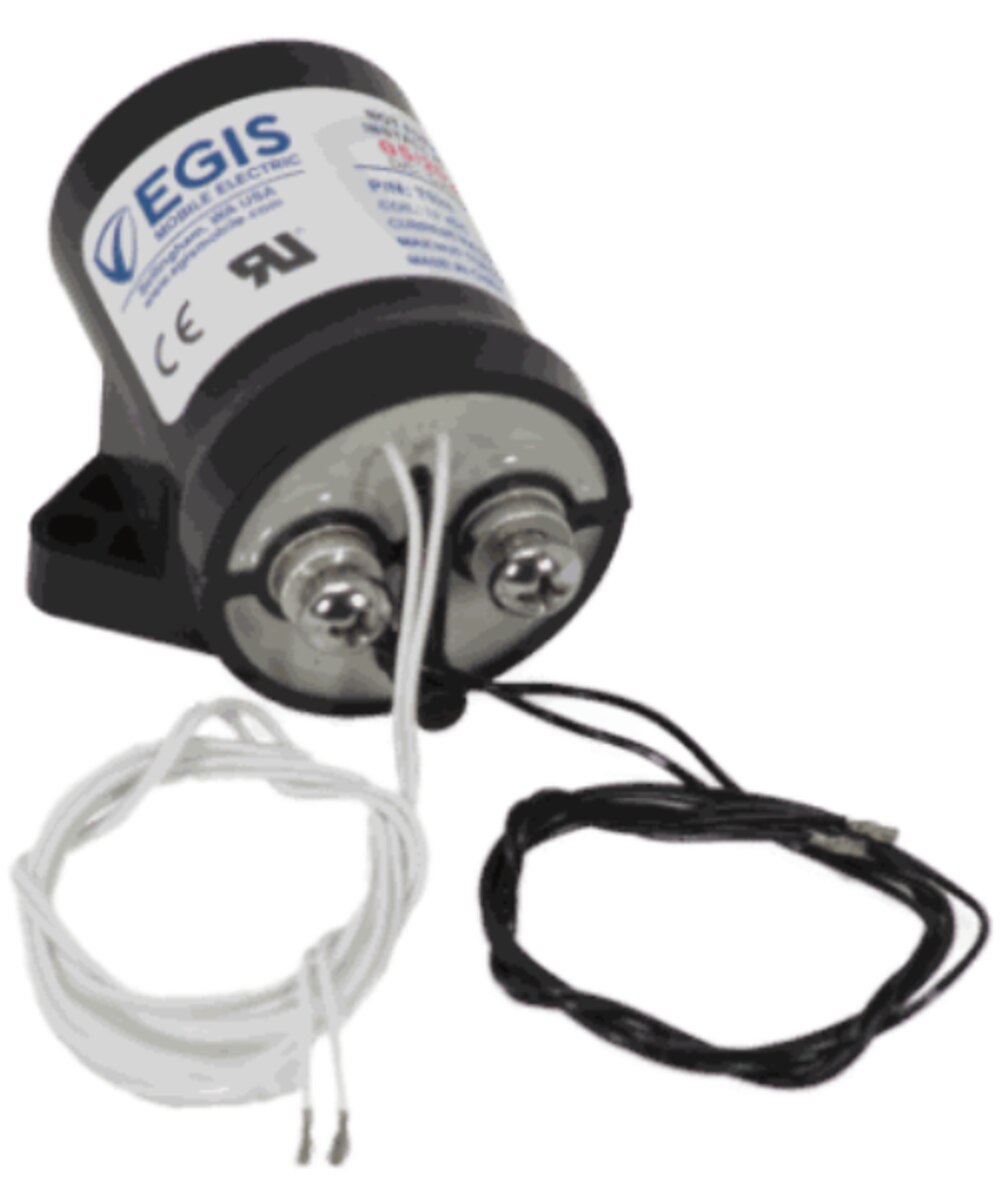

EGIS Contactor (7026B)

EGIS Contactor, 100A, 24V, w/ Aux Contacts (7026B)

Reduce Installation Costs and Weight by eliminating large cable runs to manual switches through robust remote switching of high ampere engine and auxiliary loads.
Ensure Flawless Operation for the Life of the Installation with a hermetically sealed contactor sealed against dust and moisture.
High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.
Get Positive Confirmation of Relay On/Off State with optional auxiliary contacts that support remote status indication.


Features:


• Ignition Protected safe for installation in closed compartments with potential explosive gases.
• High Electrical Switching Endurance delivers 6,000 cycles at 250A / 450V, 100,000 cycles at 250A / 14V.
• High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc).
• Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.
• 4 Year Industry Leading Warranty.

Literature:

Sales Bulletin


MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
