MCJDR100 Power Unit Panel 12/24VDC (4025046)
Details
MCJDR100 Power Unit Panel 12/24VDC (4025046)

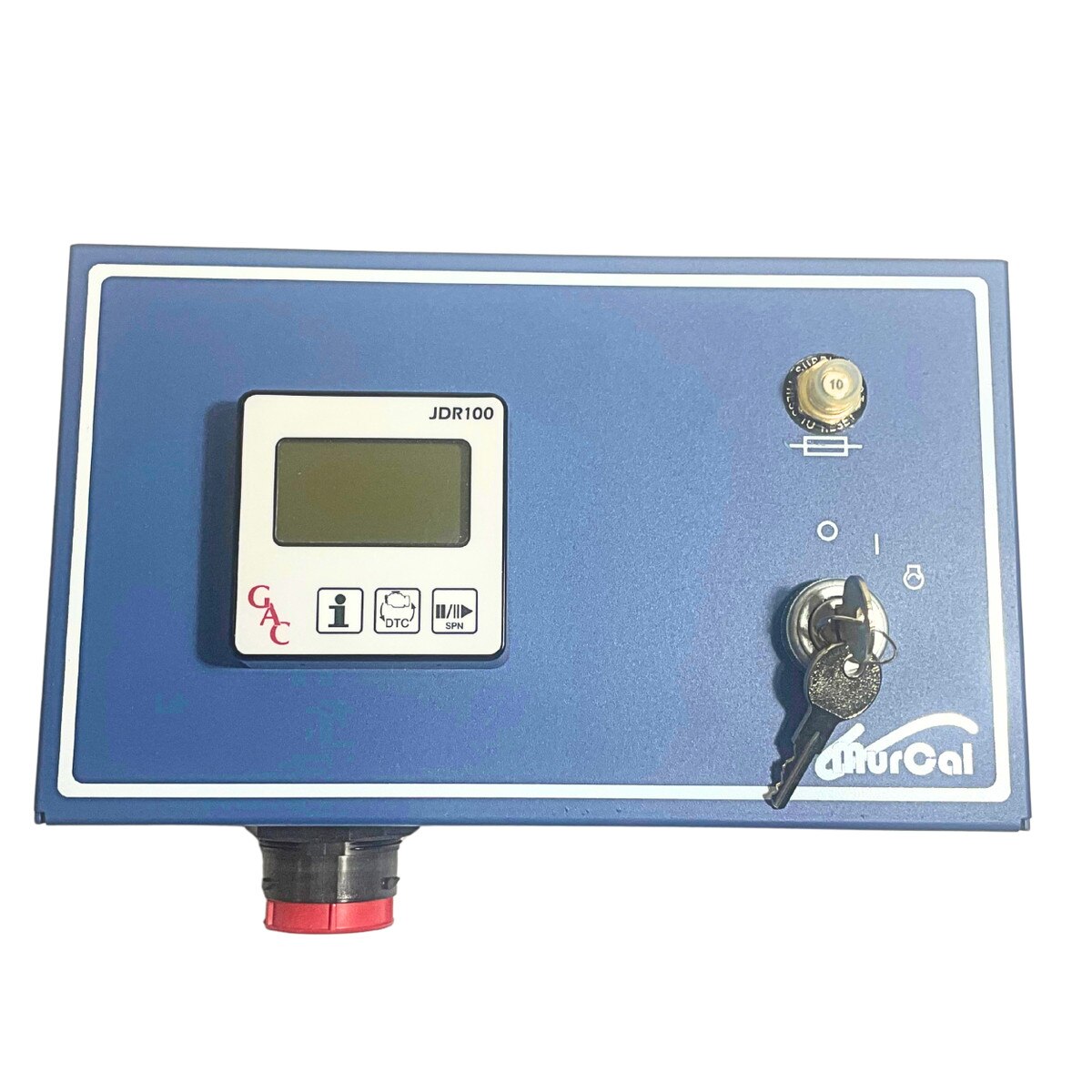

MurCal’s MCJDR100 Power Unit Panel is a 12/24 Volt engine panel that combines several features that enhance the JDR100 reader in terms of functionality and environmental protection. The MCJDR100 Power Unit Panel is a two-piece, powder-coated metal enclosure that measures 10” W x 6”H x 4” D, and features:
1. Governor's America Corp JDR100 SAE J1939 Diagnostic Trouble Code (DTC) Reader
2. 4 (Four) Position Keyswitch: ACC, OFF, ACC/IGN, START; with spring return, key boot, and anti-restart.
3. 10A Panel Mount Breaker
4. 4 (Four) Shockmount Assemblies, CM x ½"
JDR100 SAE J1939 Diagnostic Trouble Code (DTC) Live Engine Parameter Reader
GAC’s JDR series of J1939 data readers, are low-cost universal devices that allow users to read Diagnostic Trouble Codes (DTC’s). More advanced models allow users to monitor standard J1939 engine parameters, and or monitor and control Tier-IV diesel particulate regeneration function. The JDR devices are designed for Electronic Engines (ECMs) and devices equipped with J1939 compatible Electronic Control Units (ECU).
JDR100 builds on the JDR050, displaying 6 live engine parameters by default: RPM, Oil Pressure, Coolant Temperature, Fuel Level, Battery Voltage, Engine Run Hours, as well as J1939 stop, warning, malfunction, and protection status messages.
