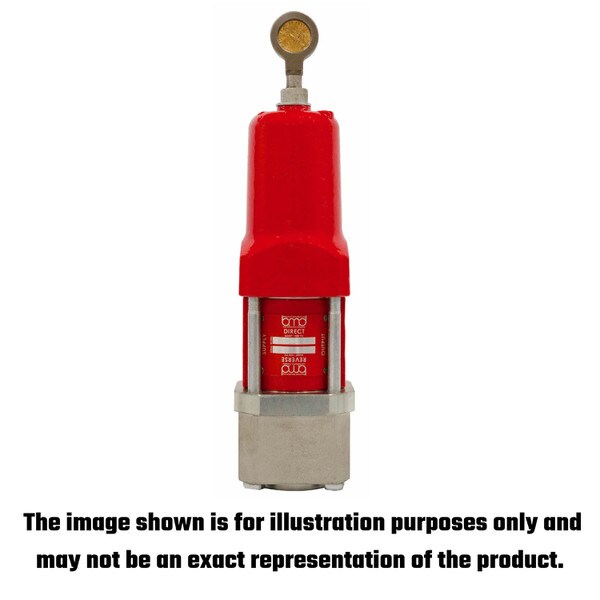

PC88 Pressure Control Pilot, Reverse Acting, Vitona Seals, 75-750 psi (PC88-1RV)

bmd - PC88 Series Pressure Control Pilot, Reverse Acting, Steel Body Bonnet and Base, Stainless Steel Internals, Nylon Reinforced Viton Diaphragm, Viton Seals, 75-750 psi (PC88-1RV)

The PC88 is a rugged, economical pressure control pilot. It can be used anywhere pressure control of high pressure gas is required. When used in conjunction with a control valve, it may serve as either a back pressure regulator or pressure reducing regulator. It can also be used to send a signal when the sense pressure goes above or falls below a given set point.
The PC88 is available as direct acting or reverse acting. The action is field reversible. The PC88 Direct functions by sensing a high-pressure signal and outputting a low-pressure signal when the high pressure signal rises above the set point. The PC88 Reverse outputs a low-pressure signal when the high pressure signal falls below the set point.

Literature:

MurCal is an Authorized Distributor of BMD products.

MurCal provides experienced application and product support, before and after the sale.
