PV1100-T PowerView® 1100-T (78700636)

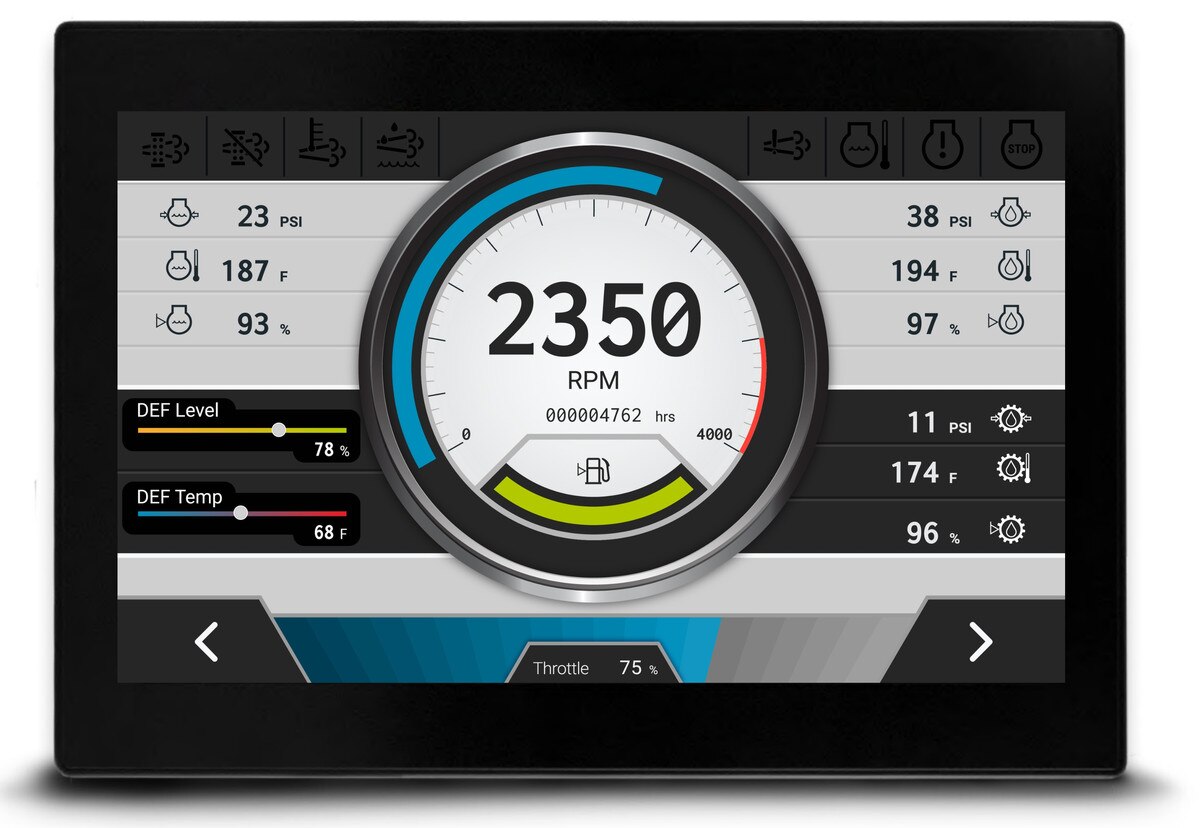

PV1100-T PowerView® 1100-T Touch, Non-connected, Landscape (78700636)

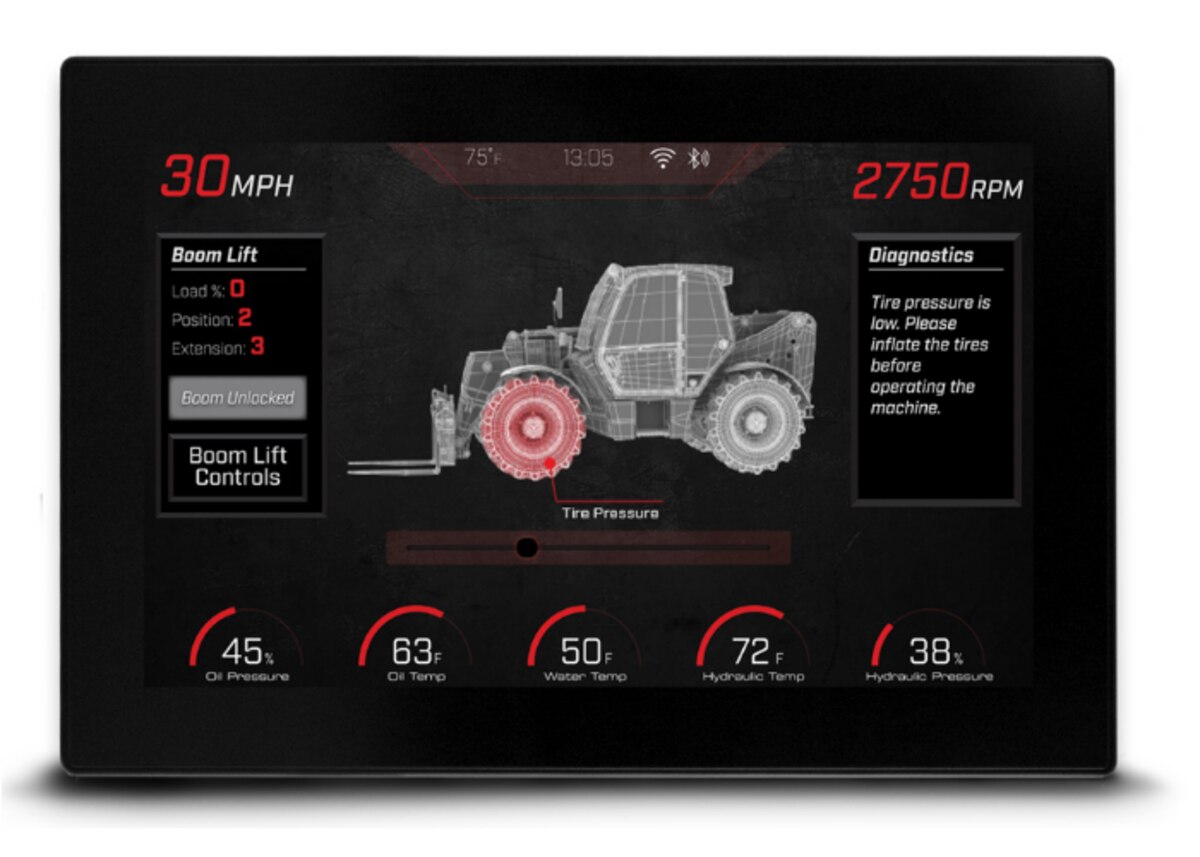

Murphy brings a whole new experience to your applications with the PowerView® 1100-T. This large 10.6-inch display features a high-speed processor that allows you to bring even more into your application.
In addition to providing vital engine information, the PV1100 packs an infotainment hub in the cab with media playback from your phone via USB. It also boasts AM/FM stereo, Bluetooth and Wi-Fi connectivity.
The full-featured, configurable display integrates engine, transmission and diagnostic information into an easy-to-read operator interface. The 10.6-inch screen, with glove touch, can easily be viewed, even in full sunlight. The display’s bonded LCD and rugged design make it a perfect solution for all types of environments and applications.
The PV1100 is available in portrait or landscape configurations. Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio® software, purchased separately.

Specifications:

• Computing
  • Processor: Renesas^® R-Car M2 with Arm^® Cortex^®-A15 dual-core processor @ 1.5 GHz (32-bit)
  • Operating System: QNX^® Realtime Operating System
  • Storage: 8 GB flash memory
  • RAM: 512 MB DDR3-SDRAM
  • Graphics: Renesas graphics processor
• Display
  • Screen Size: 10.6 inches (231.36 mm × 138.82 mm)
  • Type: LVDS TFT LCD with LED backlight, 24-bit color
  • Resolution: 1280 × 768
  • Contrast Ratio: Typ. 1000:1
  • Brightness: 1000 cd/m2
  • Surface: Anti-glare
  • Touch Panel: Projected capacitive (PCAP) with glove touch
• Hardware
  • Real Time Clock: Available with battery backup
  • Connectors:
    • (2) AMPSEAL 23 pin (main)
    • (1) AMPSEAL 35 pin (on some variants)
    • (1) M12 5 pin (on some variants)
    • (1) USB pigtail
    • (1) Antenna jack (on some variants)
  • Video Input: (3) NTSC/PAL (single channel viewable)
• Communication
  • CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
  • Serial: RS-485 serial (Modbus: master or slave)
  • USB: USB 2.0 full speed host
• Electrical
  • Operating Voltage: 6 – 36 VDC, reverse polarity protected
  • Outputs:
    • (1) 500 mA switched low-side
    • (1) Frequency output (2Hz – 3KHz)
  • Inputs:
    • (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
    • (5) Discrete digital, active-high
    • (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
• Environmental
  • Operating Temperature: -40˚C to +70˚C (-40˚F to +158˚F)
  • Storage Temperature: -40˚C to +85˚C (-40˚F to +185˚F)
  • Protection: IP66 and IP67, front and back, for outdoor use
  • Vibration: 3.9 Grms (10 – 350Hz), 3 axes (ISO 15003)
  • Shock: ±50G in 3 axes
  • EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU


Literature:

1. Sales Bulletin
2. Format USB Flash Drive to FAT/FAT16

Video:
