PowerView® U120 with DAB (78700701)
PowerView® U120 with DAB - PV-U120L-TSA5-QDAB-1 (78700701)

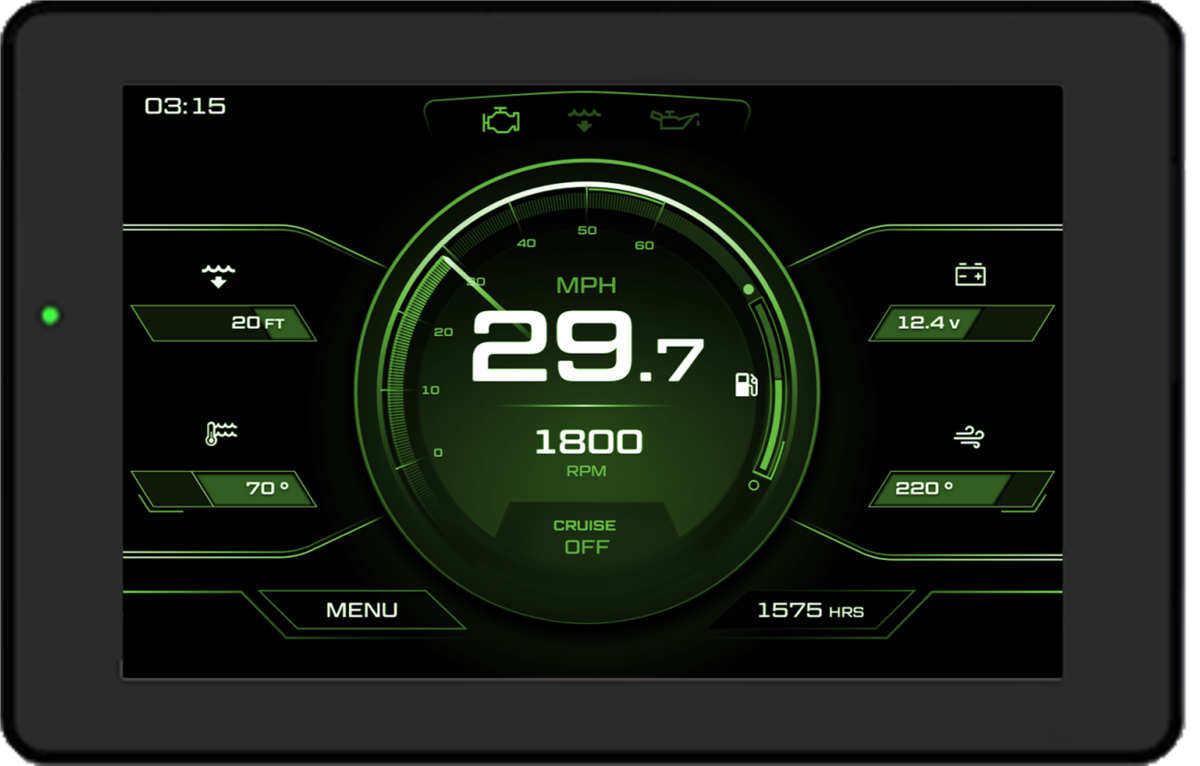

Enovation Controls PowerView® U120 is a premium 12-inch programmable color display for rugged marine/recreation applications, upgrading the PV1100 with enhanced performance.
It features a Renesas R-Car M2 dual-core Arm Cortex-A15 processor at 1.5GHz running QNX Realtime OS, with 1GB RAM and 16GB eMMC storage (double the PV1100).
The 1280x800 TFT LCD offers 1000 nits brightness, IP67 anti-glare PCAP glove touch, and supports 4x analog video inputs plus A2B audio with DAB/AM/FM radio.
Connectivity includes 2x CAN J1939, USB 2.0, RS-485, WiFi, 100MB M12 Ethernet, and Bluetooth 5.0, alongside 5x digital/3x analog inputs (0-5V/2-20mA) and frequency I/O. Rated for 6-36VDC operation from -30°C to +70°C, it meets IP67 protection, SAE J1113 EMI, 50G shock, and ISO 15003 vibration standards. Key upgrades: higher resolution, dual video streams, and expanded audio capabilities.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
