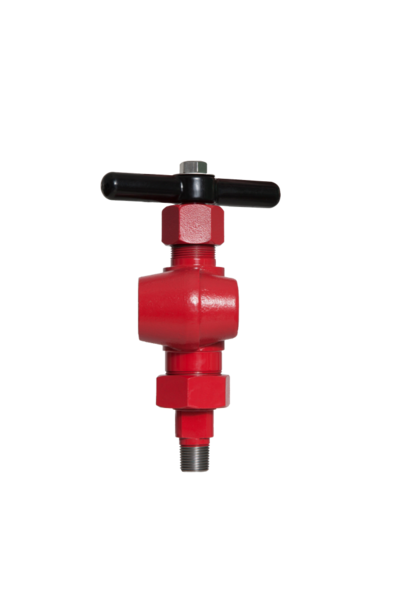

BMD - GV20 Gauge Valve, 3*4” Tank Union, 1/2” FNPT Glass Connection (GV20-F2)

BMD - GV20 Gauge Valve 3/4 Tank Union 1/2 FNPT Glass Conn. (2X/Box) (GV20-F2)



BMD’s GV20 gauge valves offer ease of installation and compatible with all armored flat-glass level gauges


POWER FEATURES



• Designed to be used with BMD’s LG20 Level Gauges
• Also compatible with all armored flat-glass level gauges
• FNPT glass connections and union tank connections make for easy installation and removal



SPECIFICATIONS



• Connections:
  • Glass Connection: 1/2” FNPT
  • Tank Connection: 1/2” and 3/4” Union



Features:



• Safety Shutoff: Stainless ball check upstream of the seat shuts off medium flow in the event of glass breakage.
• Ergonomic Handle: Sturdy 0.75” diameter tee handle for ease of use and comfortable operation.
• Offset Design: Body and drain connections are offset from the tank connection for easy glass cleaning.
• NACE Compatible: Wetted parts conform to NACE MR-01-75 specifications for sour gas service.


Literature:

Sales Bulletin

For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
