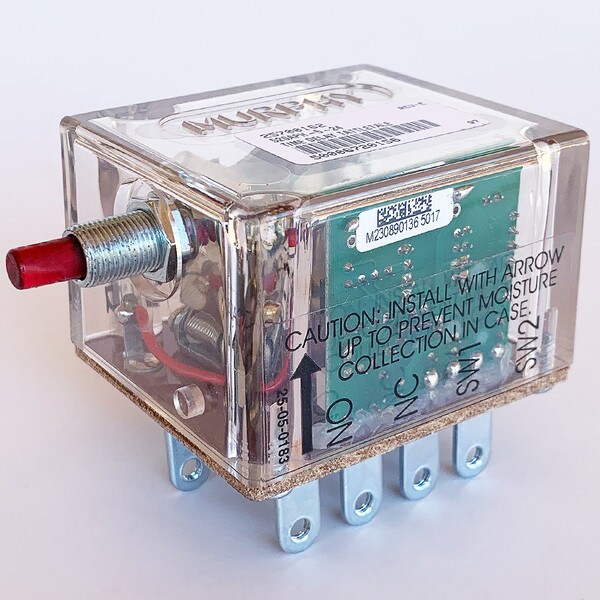

520APH-5-24 Tattletale® (25700162)
520APH-5-24: Time Delay Tattletale®; 5 second time delay; 24 VDC (25700162)
Allows for Swichgage and/or N.C. contacts to be wired closed loop (in series). Any contact open or Swichgage contact close in the circuit shunt trips it with 5 second time delay before trip on one Swichgage contact input but immediate trip on the second Swichgage contact input.
Typical use is for immediate stop of engine from oil pressure or coolant temperature but delayed shutdown from alignment switches on center pivot irrigation system.
Contacts 10 amps 24 V. 14 amp fuse.
