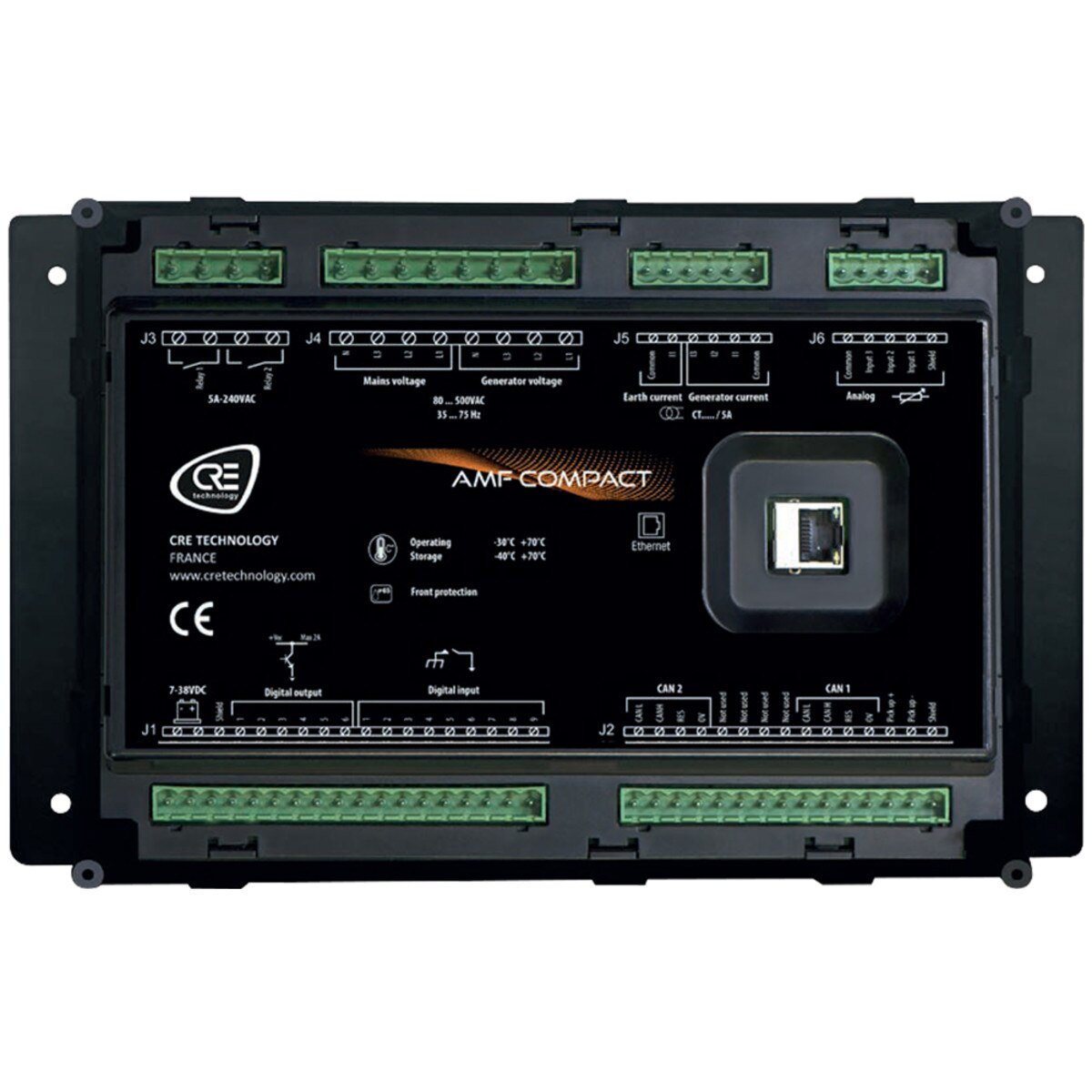

CRE - AMF COMPACT CORE Version w/ DIN Rail kit (A56-AMF-10)

Automatic and Manual Mains Failure Unit with graphic display.
CORE Version with DIN Rail Kit (A56-AMF-10)

The AMF COMPACT is one controller of a complete range for Energy sources and power plant management: Generators, Mains, Photovoltaic, Batteries storage, Tie breakers. This controller is dedicated to a large variety of standby diesel or gas generators, offering an automatic management of transfer switch on mains failure, as well as monitoring, control and protection of engine, alternator and power Bus bars. It offers flexibility and time saving thanks to its simple wiring, all features included (no option), and easy programming

This model of the AMF Compact is a core base mounted version and compatible with i4Gen touchscreen color display range.


Features:

• Complete engine control of diesel, gasoline or gas generators (preheating, pre-glow, ignition, start/stop…).
• Alternative or consecutive multiple starter management.
• Warm-up and cool down at idle or nominal speed.
• Remote start and test mode available On/Off load.
• Compatible with all J1939 electronic engines.
• Automatic management of the standard frames.
• New: Possibility to create and configure up to 10 customized J1939 frames (read and write).
• Management of DTC and DPF/SCR (Tier 4 final and Stage 5 engines.
• Engine ECU address automatic detection. Sniffer/Spy function to analyze the CAN frames. Start/Stop control, speed, 50/60Hz selection.
• Mains failure detection and changeover.
• Override mode (protections inhibition + dedicated hourmeter) following NFE 37-312 certification.
• Non-essential load trip control on overload or under frequency (Load shedding).
• Battery boost management.
• Configurable maintenance cycle.
• 3 password levels: end user, technician, advanced technician.

Literature


1. AMF Compact Sales Bulletin
2. Generator Control Solutions Bulletin
3. AMF Compact Technical Documentation
4. Harness Information Technical Documentation
5. Application Note - Analog Input Wiring
6. Setting Up Murphy Senders in the CRE Controller
7. Technical Documentation: Ethernet Connection Instructions
