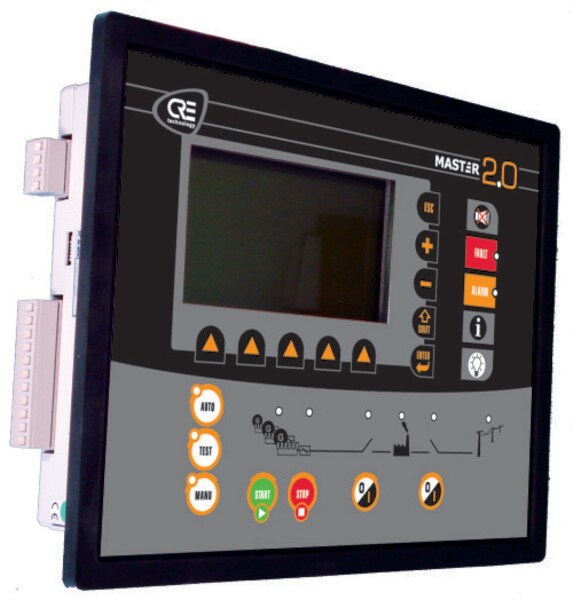

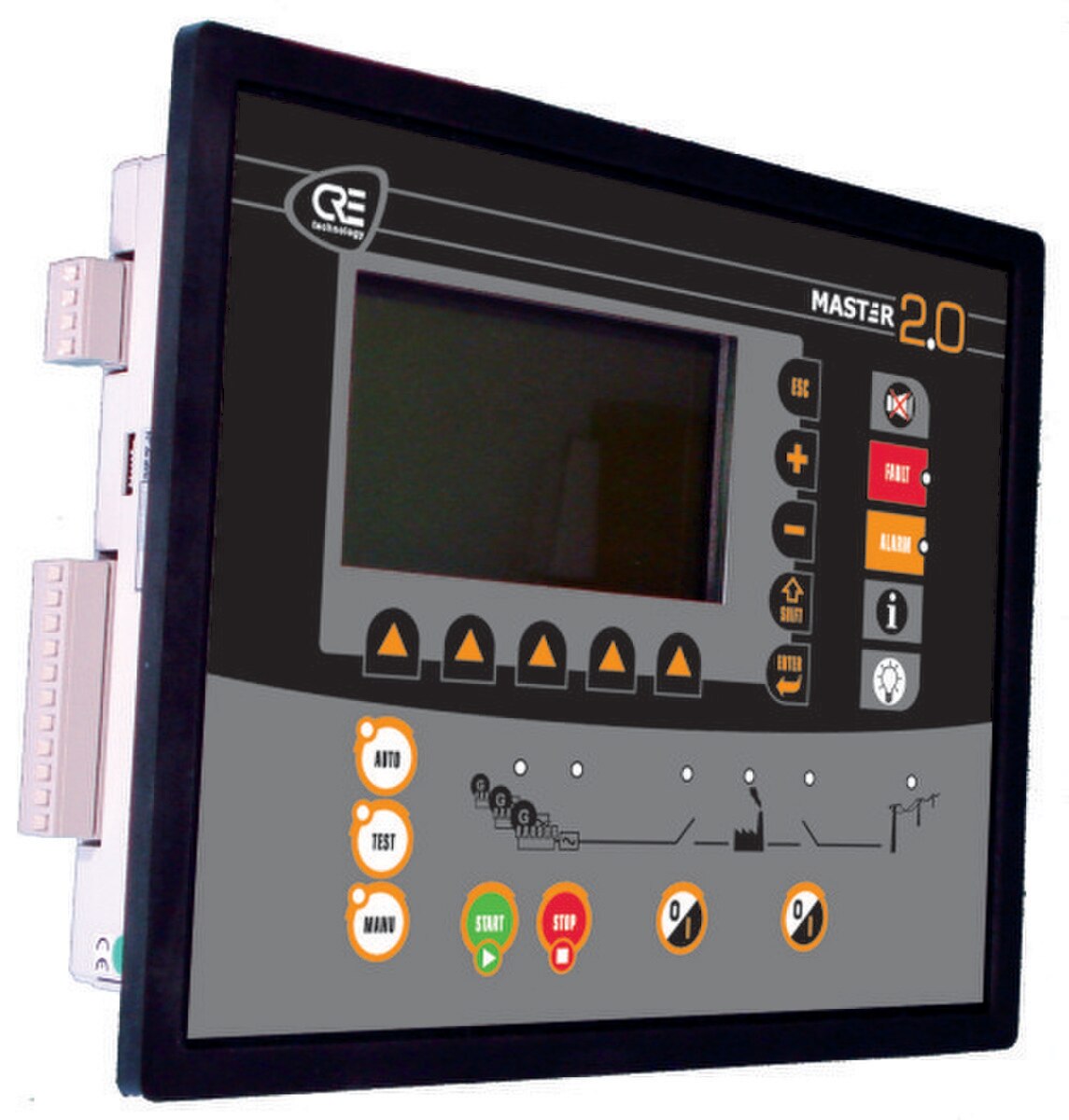

CRE - MASTER 2.0 (A54Z0)

CRE - MASTER 2.0 All-in-one mains paralleling unit with integrated PLC (A54Z0)

The Master 2.0 is a power plant controller for gensets in parallel with one or several mains.

This “all-in-one” unit includes all necessary functions:

• Multi mains management
• Three phase mains failure detection
• Electrical protection
• Electrical parameters display
• Manual and automatic paralleling with mains (frequency, phase and voltage)
• kW power management with several modes:
  • No break changes over with load transfer
  • Permanent paralleling in base load
  • Permanent paralleling in peak shaving mode
• Power factor control when paralleling with mains.
• Dyn11 capabilities (HV phase compensation)
• Analog control for all load sharing modules.

Literature:

Sales Bulletin
