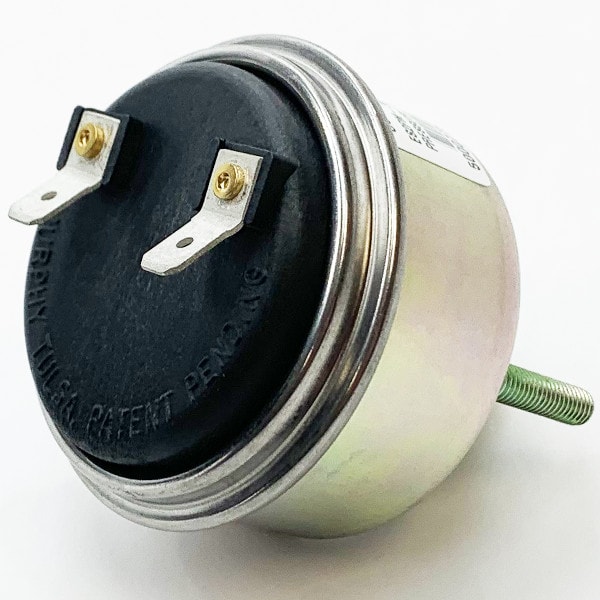

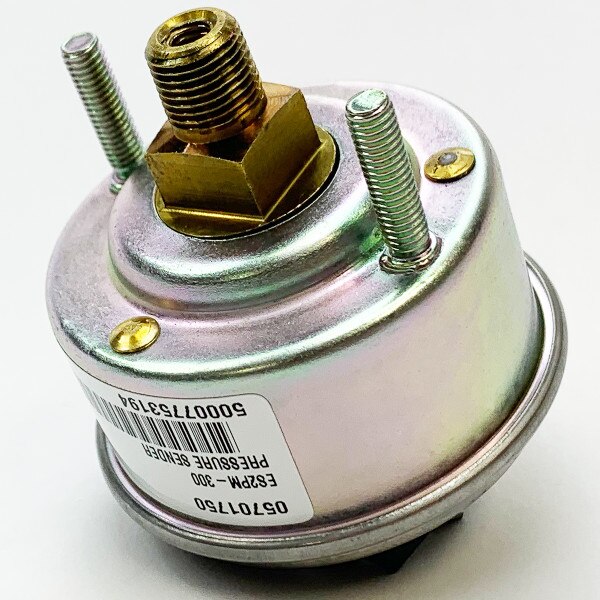

ES2PM-300 Electric Pressure Sender (05701750)

ES2PM-300: 2 Wire Electric Pressure Sender; 300 psi max (05701750)

The ES2PM-300 Pressure Sender is a 2-wire ungrounded pressure sender for use with electric pressure gages. Rated at 300 psi maximum. The manufacturer recommends mounting off-equipment. Ideal for marine applications.

The ES2PM-300 is designed to be used in conjunction with our EG Series Swichgage® Instruments as well as CAN I/O modules.

NOTE: Always provide proper circuit protection with fuses or circuit breakers.

Literature:

1. Sales Bulletin
2. Electric Gage Series Brochure
3. Installation Instructions (1999)
4. Installation Instructions (2008)
5. Installation Instructions for Off-Equipment Mounting Kit #30000213 of Gear Oil Pressure Sender
6. Resistive Table for Electric Gage Pressure Senders
