CRE - GENSYS Compact Prime Core (A56-PRIME-10)

GENSYS Compact Prime: Paralleling Controller with Integrated Programming Version with DIN Rail Kit

The GENSYS COMPACT PRIME CORE is one controller of a complete range for Energy sources and power plant management: Generators, Mains, Photovoltaic, Batteries storage, Tie breakers. This controller is dedicated for generators used in power plant applications requiring synchronizing, active and reactive load sharing and electrical/mechanical protections. It offers flexibility and time saving thanks to its simple wiring, and easy programming.

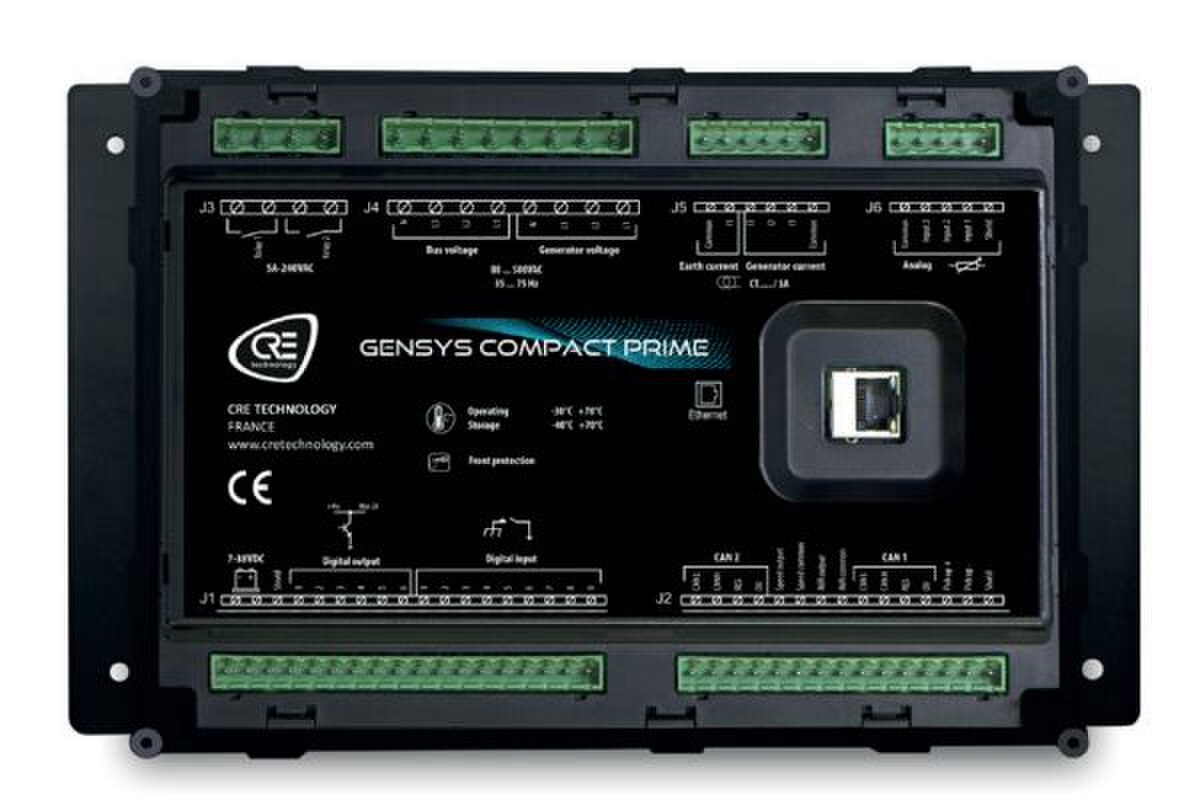

The Compact Prime is available in both a switchboard panel mounted version with display, or a core base mounted version. It’s also compatible with the i4GEN touchscreen color display. This model is configurable from its front panel display, from i4GEN, or through the free CRE software.

This paralleling controller offers complete engine control of your diesel, gasoline or natural gas gensets, which includes preheating, pre-glow, ignition and start/stop functions. Warmup and cool down can occur at idle or nominal speed. You also have capabilities for alternative or consecutive multiple starter management. Best yet, the Contact Prime is compatible with all J1939 electronic engines.

Features:

   •  Remote start and test mode available ON/OFF load
   •  Isochronous and Iso-voltage active & reactive load sharing
   •  Fixed kW/KVAR load or droop mode
   •  Frequency and voltage control compensation for generators with droop governors and/or AVR/DVR
   •  Synchronization and dead bus management
   •  Static synchronization: gensets breakers closing without excitation
   •  Dynamic synchronization: frequency, phase & voltage synchronization
   •  Synch check (ANSI 25) + phase sequence protection
   •  New optimized PID loop with exceptional performance in synchronization, KW and KVAR control
   •  Override mode (protections inhibition + dedicated hour meter) following NFE 37-312 certification
   •  Non-essential load control on overload
   •  Battery boost management
   •  Configurable maintenance cycle
   •  Two password levels

Literature


1. GENSYS Compact Prime Sales Bulletin
2. GENSYS Compact Range Comparison Sheet
3. Paralleling Solutions Bulletin
4. Harness Information Technical Documentation
5. GENSYS Compact Prime Technical Documentation
6. GENSYS Compact Prime Wiring Diagram
7. Application Note - Analog Input Wiring
8. GENSYS Compact Prime Case Study: Production Power Plant Application
9. Setting Up Murphy Senders in the CRE Controller
10. Technical Documentation: Ethernet Connection Instructions
