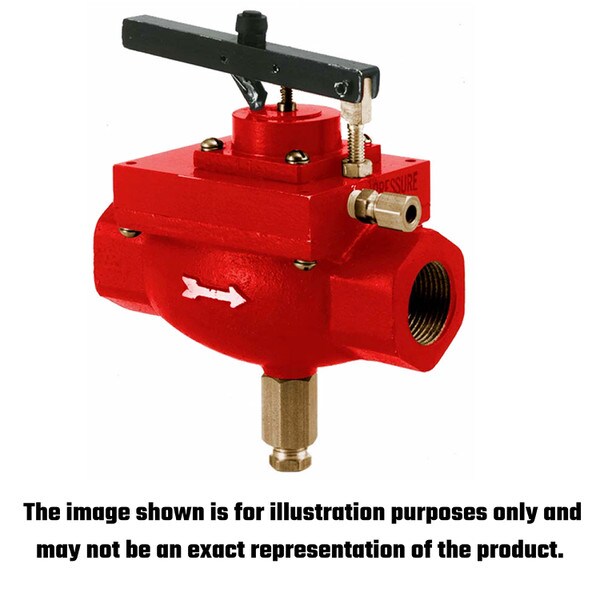

M5180-P-2 Pneumatic Gas Valve (55700021) *SPECIAL ORDER ITEM*
M5180-P-2: 2" Pneumatic Gas Valve - steel body instead of aluminum (55700021)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———
The Murphy Pneumatic Valve M5180-P-2 is for 2-inch (52 mm) gas lines. It automatically opens at 5 psi (35kPa) [0.34 bar] and fully opens the seat at 15 psi (21 kPa) [.21 bar]. The valve can be manually opened with the lever and latch against inlet pressure of 100 psi (689 kPa) [6.89 bar]. The latch will release after pilot pressure reaches 11 psi (17kPa) [17 bar].
PRODUCT SPECIFICATIONS:
- Murphy Part No.: M5180-P-2
- Series: M5180-P
- Valve Body: Steel
- Valve Seat: Buna-N
- Valve Inlet Pressure (Maximum): 100 psi (689 kPa) [6.89 bar]
- Parts Exposed to Gas Line Flow: Aluminum (Steel optional); Buna-N; 302, 303, 304, and 416 stainless steel
- Control Diaphragm: Flexweave polyester fabric and Buna-N elastomer
- Control Pressure (Maximum): 80 psig (552 kPa) [5.52 bar]
- Applications: For 2-inch (52 mm) gas lines
