MCGSP-Gensys Compact Mains GenSet Panel (7520014)

MCGSP-Gensys Compact Mains GenSet Panel

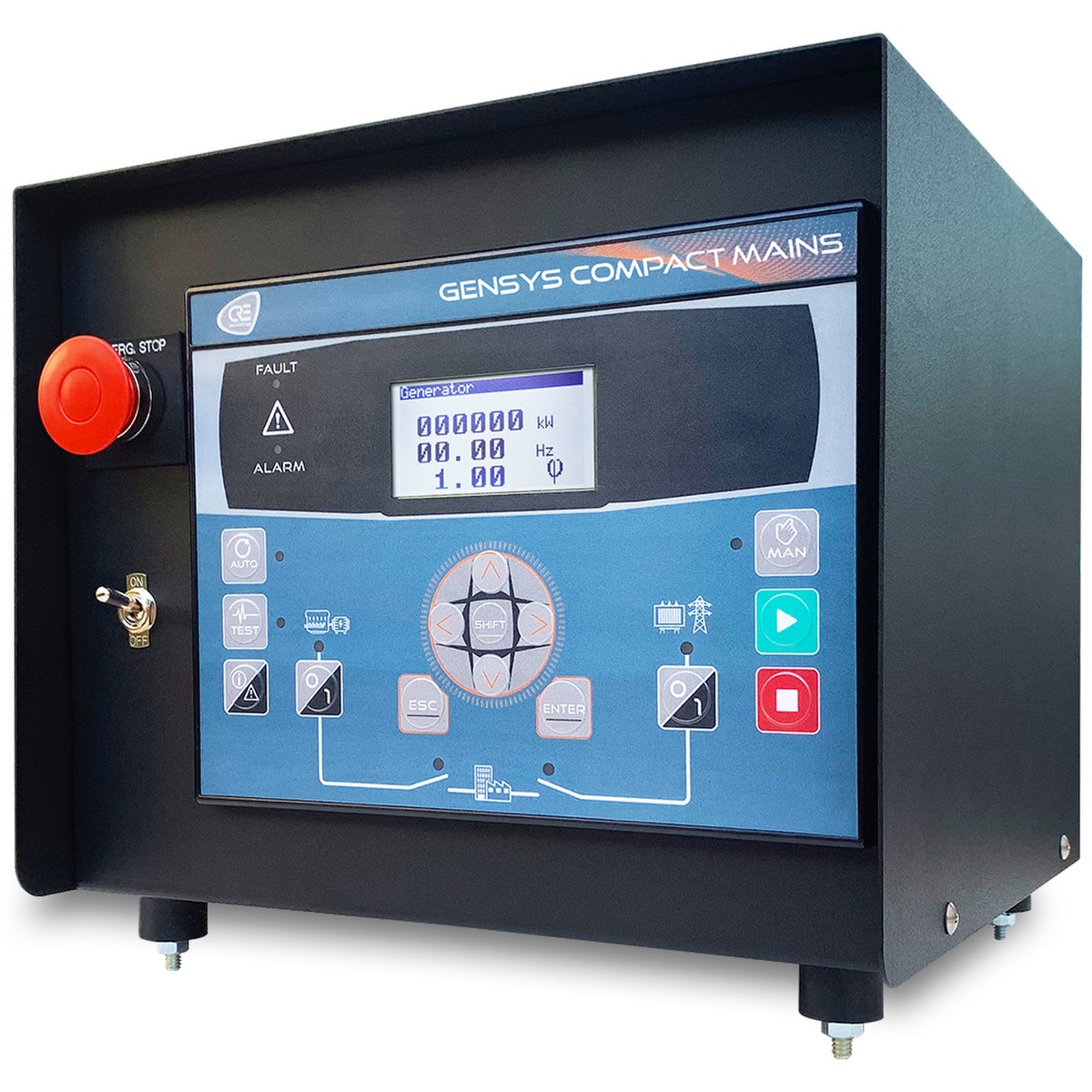

The MCGSP-Gensys Compact Mains GenSet Panel is a complete panel solution that takes the CRE Gensys Compact Mains GenSet Controller to a new level. To complement the controller, we’ve added eight (8) 100mA 600VAC fuses for AC wiring, a convenience terminal block for wiring functions (see terminal block exhibit A), an on/off toggle switch, a push/pull red mushroom emergency stop button, and shock mounts. All components are mounted comfortably inside a custom designed metal enclosure with a matte black/fine texture powder coat finish.

This panel facilitates the CRE Gensys Compact Mains GenSet Controller. The Gensys Mains, a switchboard panel mounted version with display, is dedicated to a large variety of standby diesel or gas gensets, offering isolated speed and AVR outputs along with three (3) isolated communication ports: two (2) for CANbus, and one (1) for Ethernet. The controller offers flexibility and time savings due to its simple wiring, diverse feature set, thoughtful engineering and easy programming.

The control panel includes Engine Oil Pressure and Engine Coolant Temperature Sending Units to help simplify your installation process.

Necessary Functions Include:

  •  Manual or automatic generator control
  •  Automatic start/stop depending on mains failure or external request
  •  kW peak shaving or kW base load mains paralleling with PF control
  •  Automatic frequency & phase synchronization (differential frequency meter + synchroscope)
  •  Engine parameters: oil pressure, water temperature, speed, and hour meter

Features:

  •  Complete engine control of diesel, gasoline or gas gensets (preheating, pre-glow, ignition, start/stop)
  •  Alternative or consecutive multiple starter management
  •  Warmup & cool down at idle or nominal speed
  •  Remote start and test mode available ON/OFF load
  •  Compatible with all J1939 electronic engines
  •  Mains failure detection and No Break changeover with adjustable load transfer time and paralleling time
  •  Possibility of Operator mains transfer validation (G59)
  •  Mains permanent paralleling in Fix load and PF control. Isochronous & Iso-voltage or Droop mode
  •  Frequency and voltage control, compensation for generators with droop governors and/or AVR/DVR
  •  Synchronization: Frequency, Phase & Voltage synchronization (Synch display available on screen). Synch Check (ANSI 25) + Phase sequence protection
  •  New optimized PID loop with exceptional performance in synchronization, KW and KVAR control
  •  Override mode (protections inhibition + dedicated hour meter) following NFE 37-312 certification
  •  Non-essential load control on overload
  •  Battery boost management
  •  Configurable maintenance cycle
  •  2 password levels

Literature


1. MCGSP-Gensys Compact Mains GenSet Panel Sales Bulletin
2. GENSYS Compact Mains Sales Bulletin (CRE)
3. GENSYS Compact Mains Technical Documentation (CRE)
4. Setting Up Murphy Senders in the CRE Controller
5. Technical Documentation: Ethernet Connection Instructions
