ML300 w/Enclosed PV300 (32700210) *SPECIAL ORDER ITEM*

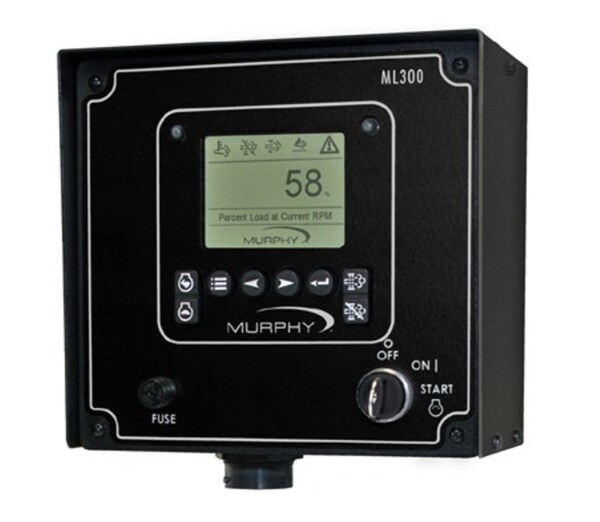

ML300 MurphyLink® Series Panel 12/24V Enclosed Panel with PowerView™ Model 300 Display and 4-.75 in. Rubber Isolated Shockmounts (32700210)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 10 Weeks For Delivery Of This Product
———
The Murphy Enclosed Panel ML300 includes the new PowerView PV300, a robust, multifunction control panel that provides advanced monitoring of electronic engines designed to meet Tier 4/Euro Stage IV emissions requirements.
The model PV300-P monitors multiple engine and machine parameters on an easy-to- read 3.8-inch (97 mm) QVGA monochrome LCD. The panel is capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown with integrated throttle control.
The PV300 provides monitoring of Tier 4/Euro Stage 4 compliant electronic engines, monitors multiple J1939 parameters and provides basic engine alarm/shutdown with integrated throttle control.
Throttling communicates through TSC1 on the J1939 CAN network. The regeneration commands for inhibit and forced-regeneration communicate through J1939 CAN protocol.
PRODUCT FEATURES:
- Tier 4/Euro Stage IV ready
- Superior Display Visibility Even in Bright Sunlight
- Back-Mounted Display for Seamless Panel Integration
- Integrated CAN Communication Using SAE J1939
- Rugged Enclosure Using Industry Standard Deutsch Connectors
- Circuit Protection and Diagnostics
