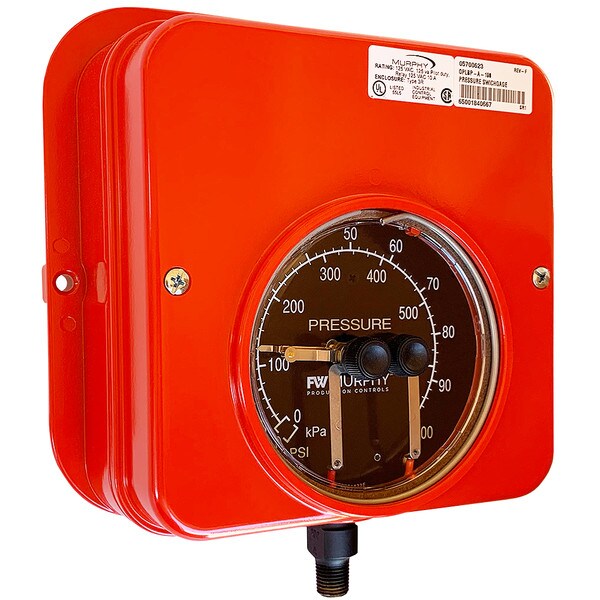

OPLBP-A-100 Pressure Swichgage® (05700623)
OPLBP-A-100: 4-1/2" Pressure Gage and Swichgage Instrument w/ internal latching control relay; Bronze Bourdon Tube; 0-100 psi; 120 VAC (05700623)
The OPLBP-A-100 surface mounting 4.5" Pressure Swichgage® is a specialized version of the OPL series designed for start-stop operation of engines and electric motors, with a range of 0-100 psi (0 - 689 kPa) [0 - 6.89 bar]. The pilot-duty limit switches are connected to an internal latching control relay for ON/OFF automation; 120 VAC.
The OPLBP-A-100 has a weatherproof die cast aluminum case, a clear polycarbonate lens, a 1/4 NPT process connection, a grade A phosphor bronze bourdon tube (brass tip/silver brazed) and a brass socket.
Literature
MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
