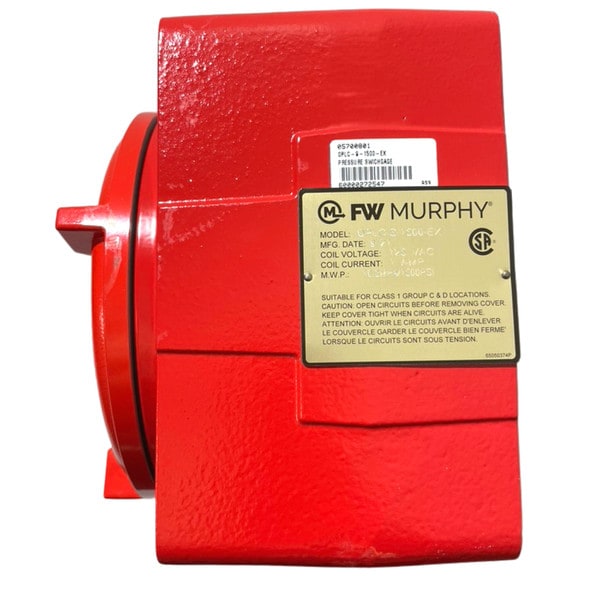

OPLC-S-1500-EX Pressure Swichgage® (05700801)
OPLC-S-1500-EX: 4.5" Stainless Pressure Swichgage®; surface mount w/ low limit lockout switch; 0-1500 psi; Explosion-proof case. (05700801)

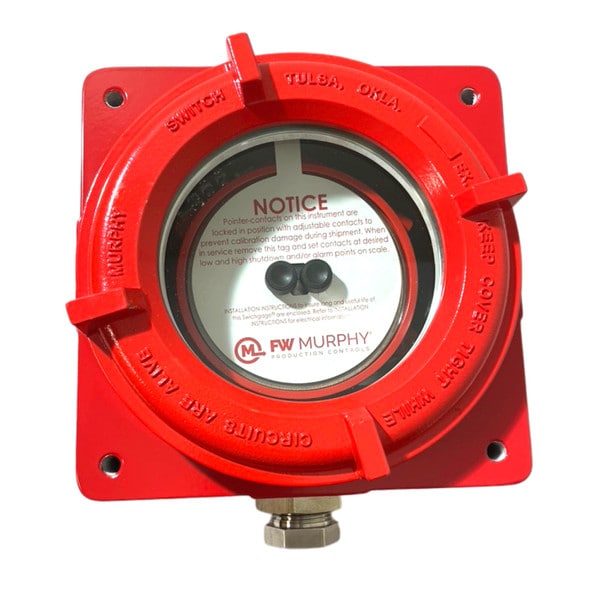

The Murphy Explosion-Proof 0-1500 PSI Surface Mount Pressure Swichgage with Low Limit Lockout Switch OPLC-S-1500-EX is a combination pressure indicating gage with adjustable low and high limit switch. This limit switch can be wired directly to electric pilot circuits to operate alarms, shutdown or start/stop of engines and electric motors. The OPLC-S-1500-EX features a 4-1/2 in. (114 mm) dial for easy viewing. Adjustable limit switch is accessible from the front of the gage and the contacts have a self-cleaning motion to enhance electrical continuity.
The OPLC is a surface mount, indicating, pressure gage and switch. Adjustable high and low limit, ungrounded contacts are used to operate alarm, shutdown or start-stop circuits. Pointer closure against either of the adjustable contacts completes the pilot-duty circuit.
An SPST toggle switch is provided to override the low limit contact for equipment startup. Suitable for engines or electric motors with appropriate Murphy magnetic switch or transformer relay assembly.
FEATURES:
- 4-1/2 in. (114 mm) Dial
- Surface Mount Version
- Low Limit Lockout Switch
- Combination Indicating Gage and Critical Pressure Limit Switches
- High and Low Pressure Limit Contacts Are Visible and Adjustable
- Class I, Division 1, Groups C & D hazardous applications
- 316 Stainless Steel Bourdon Tube
- Explosion-proof: Swichgage enclosed within explosion proof case; Class I, Div. 1, Groups C & D
PRODUCT SPECIFICATIONS:
- Part No.: OPLC-S-1500-EX
- Range: 0–1500 psi (0–10.34 MPa) [0–100 bar]
- Case: Die cast aluminum; weatherproof
- Contacts: 1 SPDT; Center off ; 2 A, 30 VDC, 1 A, 125 VAC pilot duty
- Dial: 4-1/2 in. (114 mm) white on black, dual scaled psi /kPa
- Gage Accuracy: ±2% for the first and last quarters of the scale, the middle half is ±1%
- Geared Movement: 302 and 304 stainless steel
- Lens: Optically clear polycarbonate
- Pointer: High visibility with a pointer calibration hub

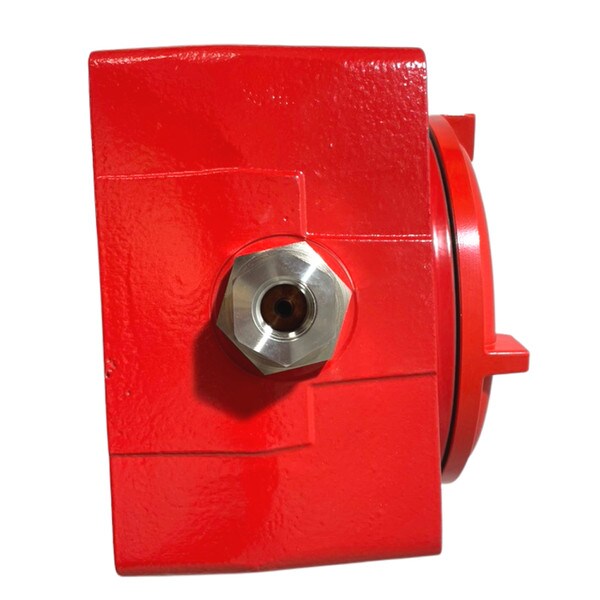

- Process Connection: 1/4 NPT
- Tube Type: Drawn C-Tube
- Range Selection Limits (psi-mpa-bar): Thru 1,000 psi (6.89 MPa) [68.9 bar]
- Bourdon Tube and Tip Material (all joints TIG welded except “A”): 316 Stainless Steel
- Socket Material: 316 stainless steel
- Sensing Element: 316 stainless steel bourdon tube
- Shipping Weight: 5 lbs 9 oz (2.5 kg)
- Shipping Dimensions: 9-1/2 x 9-1/4 x 5-3/4 in. (241 x 235 x 146 mm)
