PowerVision® P70 Display (78700712)

PowerVision® P70 Display (78700712)

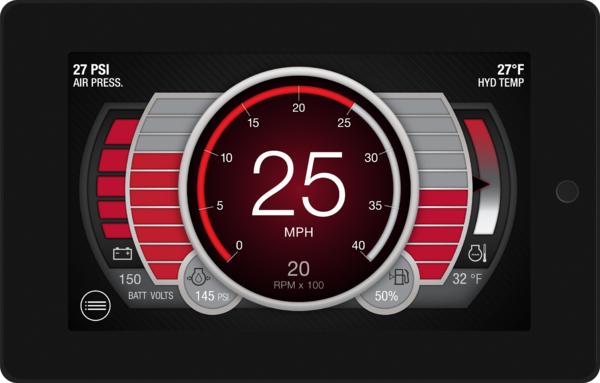

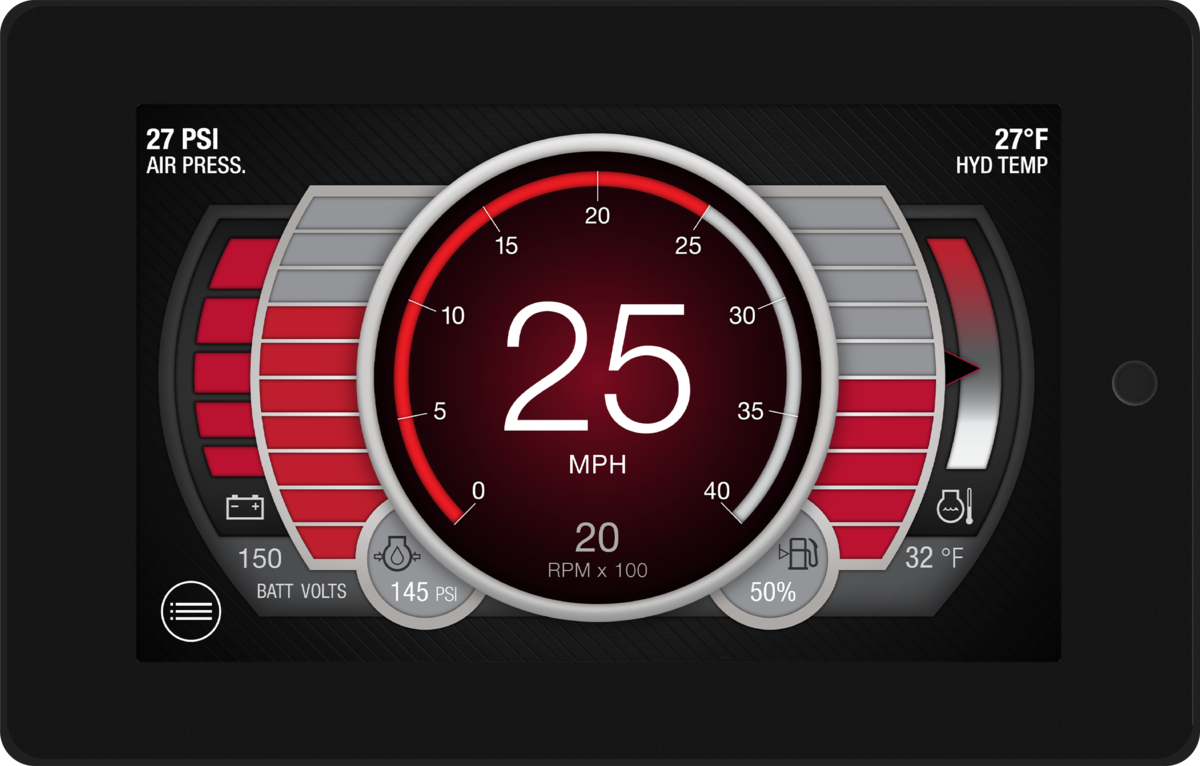

The PowerView P70 is next generation of premium rugged display controllers

The PowerView P70 is a full-colour 7-inch configurable display that combines the modern glass-front form factor of a PowerView 700 with the full I/O complement of the PowerView 485.

• Computing
  • Processor: Renesas® RZ/G1e Arm® Cortex®-A7 dual-core processor @ 1.0 GHz (32-bit)
  • Software: QNX^®Realtime Operating System
  • Storage: 8GB
  • RAM: 512MB DDR3-SDRAM
  • Graphics: Integrated graphics processor
• Display
  • Screen Size: 7-inch, 24-bit color
  • Resolution:800 x 480
  • Contrast Ratio: Typ. 600:1
  • Brightness:1000 cd/m²
  • Surface:Anti-glare finish
  • Touch Panel:Projected capacitive (PCAP) with glove touch
  • Polarize: Landscape at initial release with universal support coming soon
  • Ambient Light Sensor: Yes
• Audio/Video
  • Analog Video: (2) NTSC/PAL Video Inputs
  • Audio:
    • 2.5 Zone Audio Output (Front, Rear, & Sub)
    • Amp Turn-On (High side Vbatt out, 500mA max)
• Communication
  • CAN:(2) CAN 2.0B according to ISO 11898-2, J1939 & proprietary messaging
  • USB:(2) USB 2.0B full speed host - 1 on bulkhead type A & 1 in main connector
  • Wi-Fi: 2.4Ghz
  • Bluetooth: 2 Modules
• Electrical
  • Operating Voltage: 6 – 36 VDC, reverse polarity protected
  • Inputs:
    • (4) Digital (active-high)
    • (4) Analog (10 bit resolution, 0-5VDC, 4-20mA, resistive with 276 ohm pullup to 5Vdc)
  • Outputs:
    • (1) Analog Out (12 bit resolution, 0-5Vdc)
    • (1) Digital High Side (Vbatt, 10A) (Separate power connections are used for this circuit, two pins per Batt, Gnd, and Out connections)
    • (4) Digital Low side (500 mA )
• Environmental
  • Operating Temperature:-30°C to +88°C (-22°F to +176°F)
  • Protection:IP67 and IP69K, SAE/Enovation 1000hr QUV
  • Vibration:7.86 Grms (5–2000Hz), 3 axes
  • Shock:±50G in 3 axes
  • EMC/EMI:ISO 13766

Literature:

Installation Manual
