W0241: Special VM (30090520) *SPECIAL ORDER ITEM*
W0241: Special VM - 12V Shutdown Panel Kit; High Coolant/Oil Temp Swichgage; Low Lube Oil Pressure Swichgage Instrument; Start push button (30090520)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

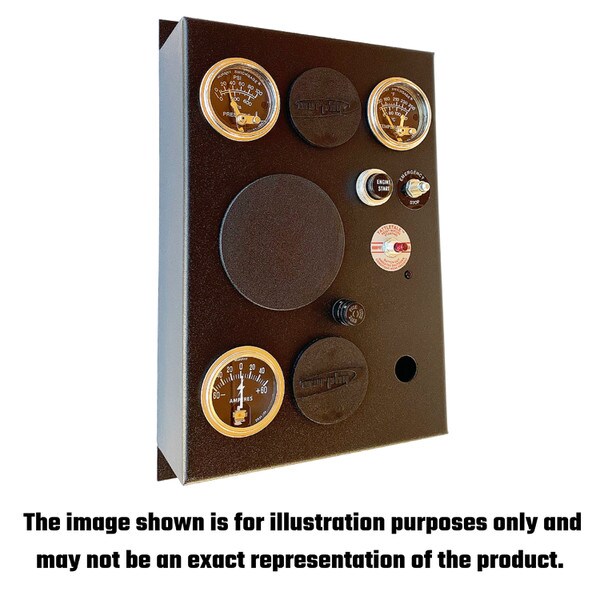

The Murphy Swichgage Shutdown Panel Kit 12V with Start Push Button W0241 is a universal- fit instrument panel for most industrial engines. This model includes Swichgage protection for low engine oil pressure and high coolant or high oil temperature.
PRODUCT FEATURES:
- Push button for start
- Universal Mounting Panel
- Operates on 12 VDC Systems
- Complete Kit Ready for Easy Installation
- Closed-loop Circuitry Ensures Proper Operation at All Times
- Protection Against Dangerously Low Oil Pressure or High Temperature
- Panel kit includes: Low Lube Oil Pressure Swichgage instrument • High Coolant/Oil Temperature Swichgage • 518PH Magnetic Switch • Emergency stop push button • Push button for start • Ammeter 60-0-60 • Provisions for additional Swichgage controls, such as irrigation pump pressure or engine oil temperature • Provisions for tachometer and throttle cable
PRODUCT SPECIFICATIONS:
- Murphy Part No.: W0241
- Low Lube Oil Pressure Swichgage Instrument: 0-100 psi (0-689 kPa) [0-6.89 bar] • 1/8 NPT process connection
- High Coolant/Oil Temperature Swichgage Instrument: 130-250°F (54-121°C) • 48 in. (1.2 m) capillary • 1/2 NPT process connection
- 518PH Magnetic Switch: 12V
- Ammeter: 60-0-60
- Shipping Weight: 8 lbs. 8 ozs. (3.9 kgs.)
- Shipping Dimensions: 16 x 11 x 5-1/2 in. (406 x 279 x 140 mm)
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
