Accessories



Current accessories include horizontal and vertical chambers, level gauges, gauge valves, and more. Beaumont Manufacturing continually adds more products to help their customers improve production and welcomes feedback. If you need a custom solution, contact us and we’ll explore the options.

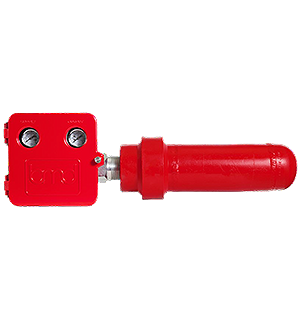

CH10 Chamber


bmd ch10 chamber

The CH10 Horizontal Chamber is designed to be used with the series LC10 Liquid Level Controller, but may also be used with other types of level switches and controllers. The CH10’s long external chamber offers the benefit of isolating the process fluid from the turbulence of the main vessel, making for a more accurate level measurement. It is also an excellent choice for situations where the main vessel’s internal geometry may block the direct installation of a level controller. This model has a 2” NPT controller connection, a 1” NPT process connection, a pressure rating of 2000 psi, and is offered in both carbon steel and stainless (optional).

National Competitors:  Norriseal 1006, Mallard 3208-H

Benefits of Choosing BMD:  External Chamber, Isolates Process Fluid from Turbulence, Increased Accuracy Level Measurements, Can be Used with Level Switches and Controllers

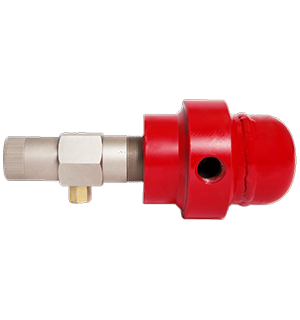

CH20 Chamber


bmd ch20 chamber

The CH20 Horizontal Chamber is designed to be used with the series LC10 Liquid Level Controller, but may also be used with other types of level switches and controllers. The CH20’s short external chamber offers the benefit of isolating the process fluid from the turbulence of the main vessel, making for a more accurate level measurement. It is also an excellent choice for situations where the main vessel’s internal geometry may block the direct installation of a level controller. This model has a 2” NPT controller connection, a 1” NPT process connection, a pressure rating of 2000 psi, and is offered in both carbon steel and stainless (optional).

National Competitors:  Norriseal 1006, Mallard 3208-H

Benefits of Choosing BMD:  External Chamber, Isolates Process Fluid from Turbulence, Increased Accuracy Level Measurements, Can be Used with Level Switches and Controllers

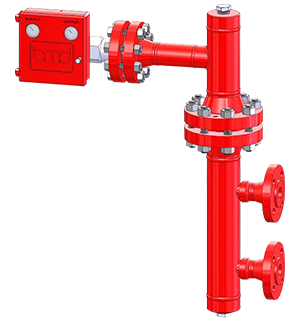

CH30 Chamber


bmd ch30 chamber

The CH30 Vertical Chamber is designed to be used with the series LC10 Liquid Level Controller, but may also be used with other types of level switches and controllers. The CH30’s vertical external chamber offers the benefit of isolating the process fluid from the turbulence of the main vessel, making for a more accurate level measurement. It is also an excellent choice for situations where the main vessel’s internal geometry may block the direct installation of a level controller. This model has a 3” or 4” chamber, a 2” NPT or flanged controller connection, either a 1”, 1.5” or 2” NPT process connection, a pressure rating of 600 psi on the threaded and 1500 psi on the flanged controller connection, and is offered in both carbon steel and stainless (optional).



National Competitors:  Norriseal 1006, Mallard 3208-V/3208-D

Benefits of Choosing BMD:  Fully Customizable, Dome Only Option, External Chamber, Isolates Process Fluid from Turbulence, Increased Accuracy Level Measurements

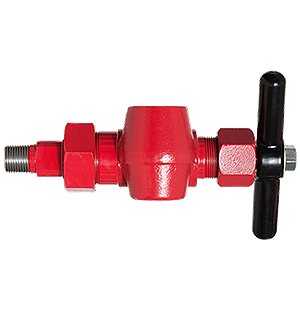

GV20 Gauge Valve


bmd gv20 gauge valve

The GV20 Gauge Valves are designed to be used with BMD’s LG20 Level Gauges, but are also compatible with all armored flat-glass level gauges. Union tank connections make for easy installation and removal. This model’s Glass Connection is 1/2” FNPT, and its Tank Connection is 1/2” or 3/4” Union. Features include a safety shutoff, ergonomic tee handle, an offset design, and all wetted parts conform to NACE MR-01-75 for sour gas service.

National Competitors:  Inferno, Pentberthy, Questtec, Jerguson

Benefits of Choosing BMD:  Designed to be used with all Armored Flat-Glass Level Gauges, Union Tank Connections for Easy Installation and Removal

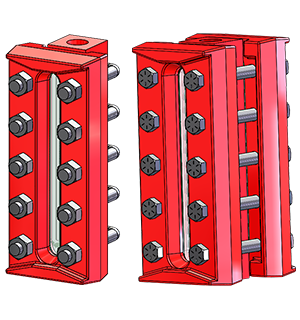

LG20 Glass Liquid Level Gauges


bmd lg20 glass liquid level gauges

The LG20 Glass Liquid Level Gauges are rugged flat glass gauges for mid-range pressure temperature applications. Standard construction includes a solid one-piece chamber machined from carbon steel with covers, toughened glass and chrome-molybdenum bolts and nuts. All metal parts are rustproofed. A recessed gasket seat prevents movement and insures leak-free service. Features include 1/2” FNPT top-bottom connections, no-leak designs, liquid-gas or liquid-liquid interface applications, and both reflex and transparent gauge styles.

National Competitors:  Inferno R100/T100, Pentberthy RM/TM, Questtec RM/TM, Jerguson R20/T20

Benefits of Choosing BMD:  Solid One Piece Chamber, Rustproof, Mid-Range Pressure





Literature


CH10-30 Brochure  (01.14.19)
GV20 Brochure  (01.14.19)
LG20 Brochure  (07.31.20)
Chamber Cross Reference Guide
