Magnetic Pick-ups


The magnetic pickup (MPU) is the communication link between the engine and the electronic controller. The MPU is installed next to the drive shaft gear made of a material which reacts to a magnetic field. As the flywheel rotates it interrupts the MPU’s magnetic field and produces an AC signal corresponding to the engine speed.

CRE’s magnetic pickups detect steel sensing gears, produce electrical frequency, easily install on engines and are available in different sizes with different connectors. The range of pick-ups allows you to choose the best product to fit your application and offers the most effective speed sensor for speed reading and overspeed protection.

MurCal presently offers the following CRE magnetic pickups:


MPU with 5/8" SAE Threads

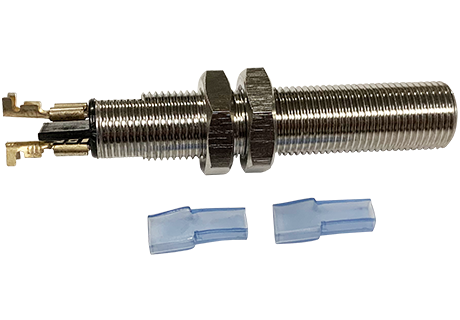

cre magnetic pickup CO 5/8-70S

Magnetic Pick-up CO 5/8-70S

Insert length 70mm, threads 5/8” - 18 UNF, connecting two (2) 1/4” spade faston cable lugs (supplied), two (2) nuts.

Click here to purchase the CO5/8-70S Magnetic-Pick-Up in the MurCal web store.




MPU with 3/8" SAE Threads

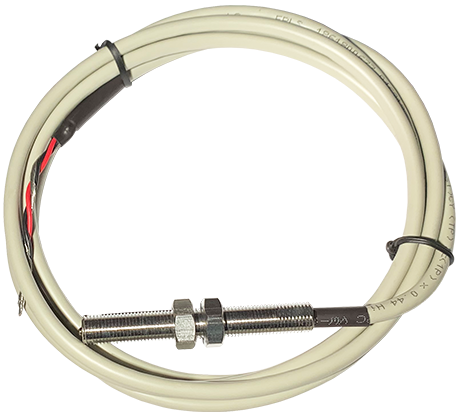

cre magnetic pickup CO 3/8-60W

Magnetic Pick-up CO 3/8-60W

Insert length 60mm, threads 3/8” - 24 UNF, connecting two (2) meter shielded cable, two (2) nuts.

Click here to purchase the CO3/8-60W Magnetic-Pick-Up in the MurCal web store.




Literature



cre magnetic pick-up bulletin



Sales Bulletin

CRE Magnetic Pick-ups

(EN_A2018)
