Trombetta 12 Volt DC Contactor (114-1211-020)

(0)No Reviews yet
$52.99
SKU: Trombetta 114-1211-020

This item is IN STOCK

Current Stock: 437

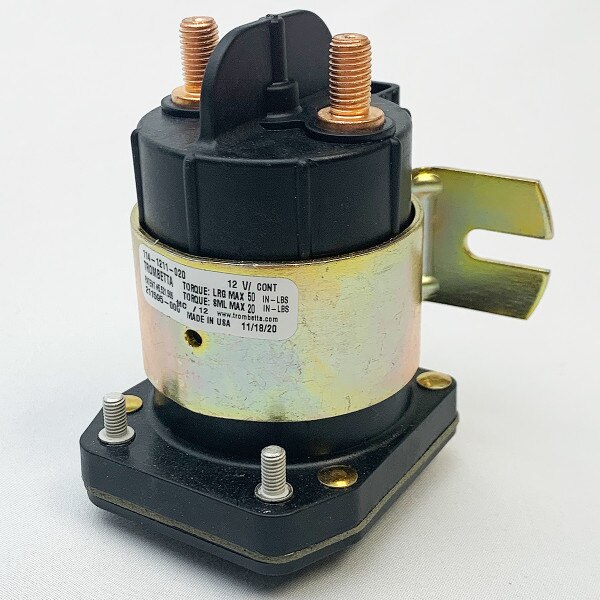

Trombetta - Bear Family: 12 Volt DC Contactor; (2) non-grounded 10-32 studs, & (2) 5/16-24 contact studs; continuous duty; silver alloy contacts, flat-bracket (114-1211-020)


From the Bear DC Contactor Family, the 114-1211-020 earned the name the "Bear" because of its strong construction and high current carrying capability. While it is large in size, the Bear provides an economical solution to high current switching applications.

Coil Terminals: Two (2) non-grounded 10-32 studs; Two (2) 5/16-24 contact studs
Flat Bracket Type, Standard Bracket Location
Duty Cycle: 100% Continuous
Contact Material: Silver Alloy
Voltage: 12 Volts

The 114-1211-020 is equivalent to Camdec 18226-WR.


Additional information:

Trombetta builds a similar model, the 114-1211-010, that has copper contacts. This model is NOT designed for connecting batteries for charging. MurCal does not sell it.

RV manufacturers typically want to keep their costs low, however, Winnebago chose not to upgrade to the 114-1211-020 and asked Trombetta to modify the housing:



They drilled 4 holes in the top of the housing to let moisture out of the housing.  The 4 holes also allows moisture into the housing too.

We recommend stating silver alloy contacts, they are more robust than copper contacts and they will last longer.

Refer to page #2 in the Sales Bulletin in the Coils/Contact table showing 25K cycles for copper & 50K cycles for silver alloy.

Silver alloy contacts are the best choice for your RV.


Literature:

  1. Sales Bulletin: Bear Family
  2. Bear Contactor Installation Instructions

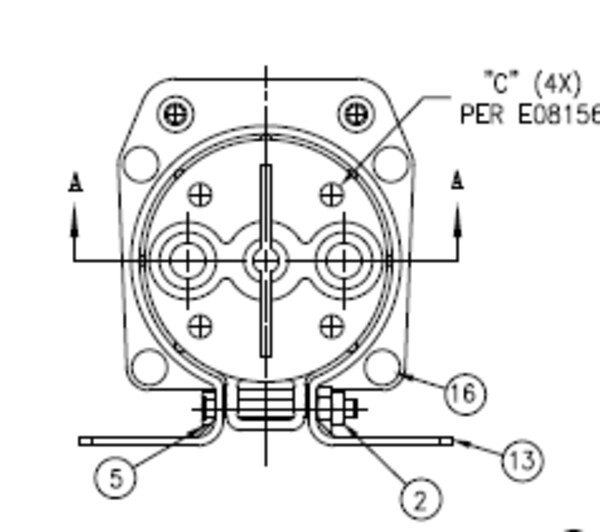

  3. Bear Contactor Dimensional Drawing
  4. Old Part Number Conversion Chart
  5. How To Order This Part



MurCal is an Authorized Distributor of Trombetta products.


MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
