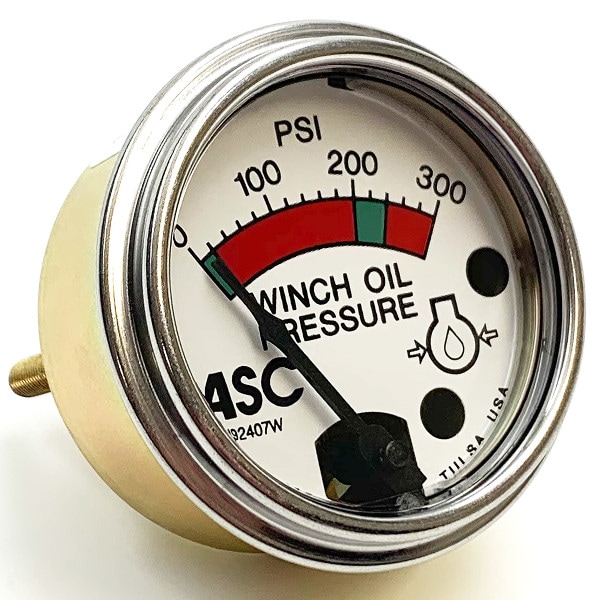

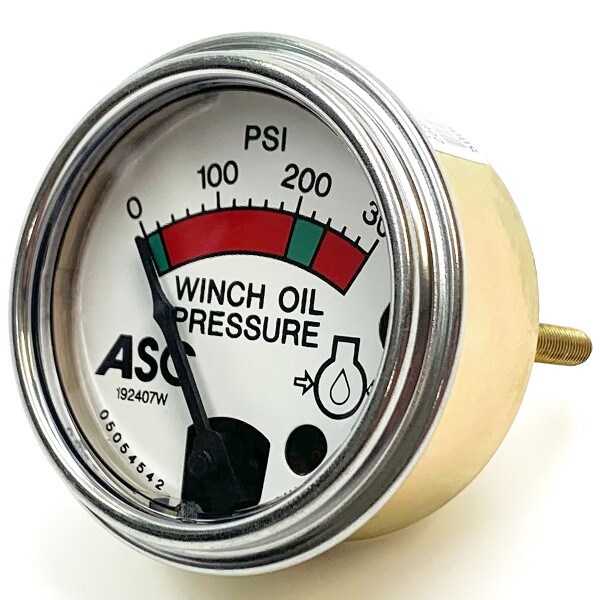

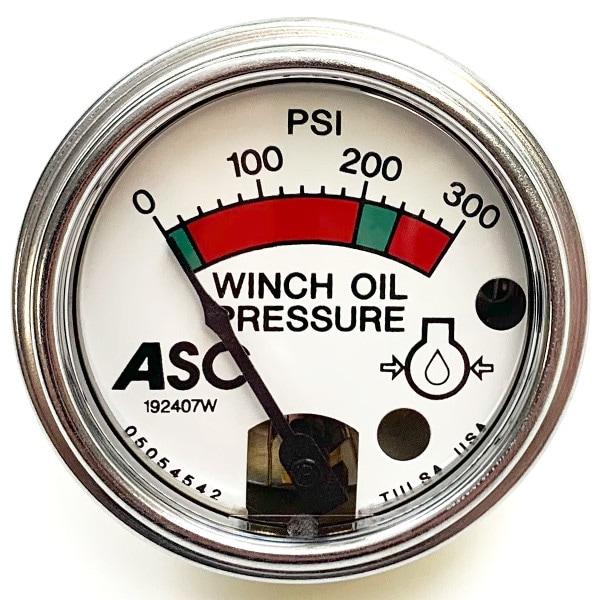

20BPG-300-D4542 B-Series Winch Oil Pressure Gauge, Custom for ASC (05351270)
20BPG-300-D4542: B-Series Winch Oil Pressure Gauge, Custom for ASC
The 20BPG-300-D4542 B-Series Pressure Murphygage® is a custom gauge built specifically for ASC (Part # 192407W). This replacement gauge works with Allied Hyster Winch Models: W6E/D6E, W6F, W8K, W8L, W12D/D89D, and W12E.
This is a high quality, diaphragm-actuated indicating gage, with a pressure range of 0-300 psi. Built with the same heavy-duty design as the standard 20-Series Swichgage® instrument, the B-gage is more compact and is the optimum instrument for gage-only applications.

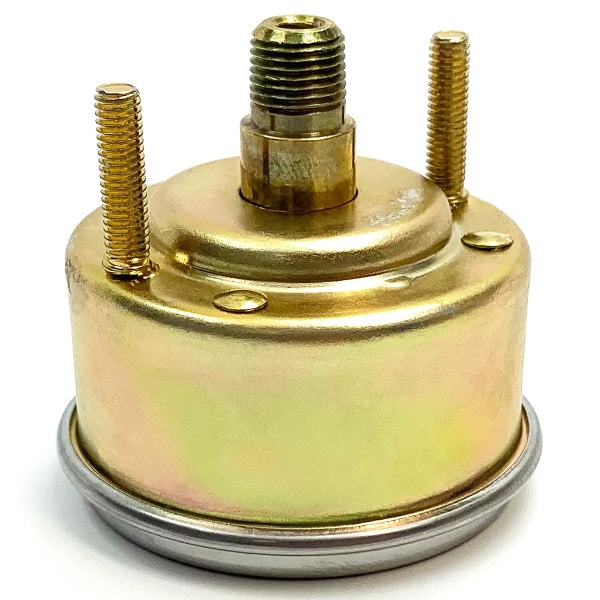

The 20BPG-300-D4542 has a high-impact polycarbonate lens, a sturdy environmentally sealed steel case, and a polished, low-profile stainless steel bezel. Accuracy and protection from moderate over-pressure are assured by a unique, unitized diaphragm chamber, superior quality materials, and the design of the gage movement. Pressure changes at the beryllium copper diaphragm convert to accurate mechanical movements that are indicated on a 2", easy to read, single-scale analog dial. A pulsation dampener in the pressure port helps eliminate pointer flutter; it can be removed for cleaning to maintain the Murphygage® response and accuracy.
