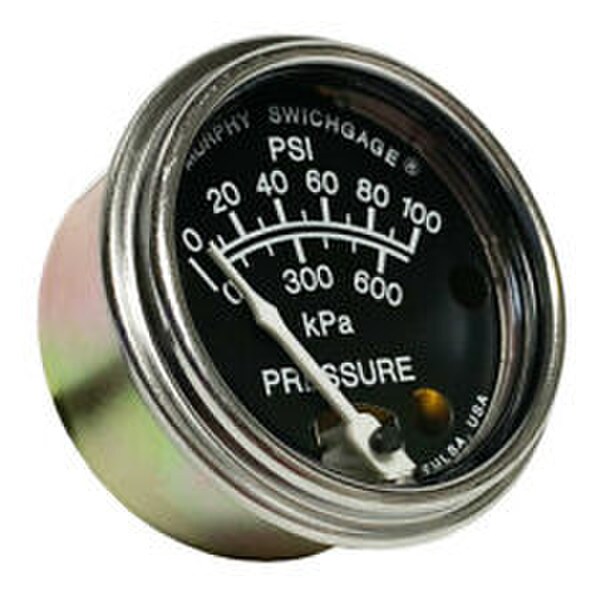

20BPG-D-100 Pressure Murphygage® (05703169)
20BPG-D-100: B-Series Pressure Murphygage®; direct-mount; "gage-only"; 0-100 psi (05703169)
The B-Series 0-100 PSI Direct Mount Mechanical Pressure Murphygage 20BPG-D-100 by Murphy is a high quality, diaphragm-actuated indicating gage. Built by Murphy with the same heavy-duty design as the standard 20 series and 25 series Swichgage instrument, the B-gage is more compact and is the optimum instrument for gage-only applications. It has a high impact polycarbonate lens, sturdy steel case, and a polished, low-profile stainless steel bezel. Accuracy and protection from moderate over-pressure/over-temperature are assured by a unique, unitized diaphragm chamber, superior quality materials, and the design of the gage movement.
Pressure changes at the diaphragm convert to accurate mechanical movements that are indicated on an easy to read analog dial. A pulsation dampener in the pressure port helps eliminate pointer flutter; it can be removed for cleaning to maintain the gage’s response and accuracy.
FEATURES:
- 2 in. (51 mm) Dial Gage
- Heavy-duty Rated
- Environmentally Sealed
- High Impact Polycarbonate Lens
- Plated Steel Case
- Polished Stainless Steel Bezel
- D = Direct Mount
Literature
