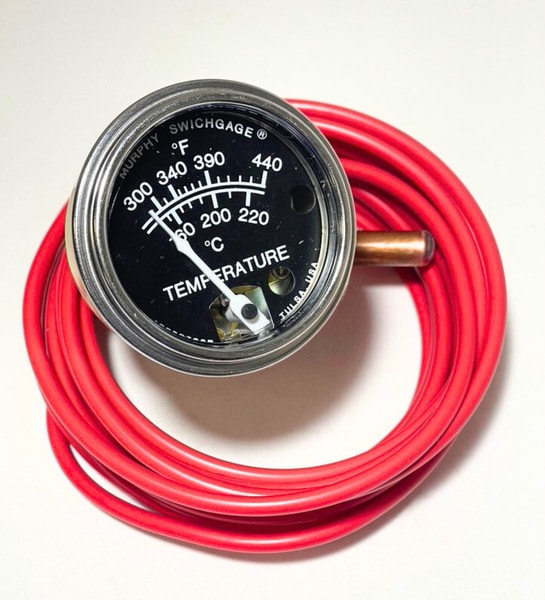

20BTG-440-12-1/2 B-Series Temperature Murphygage® (10704173)

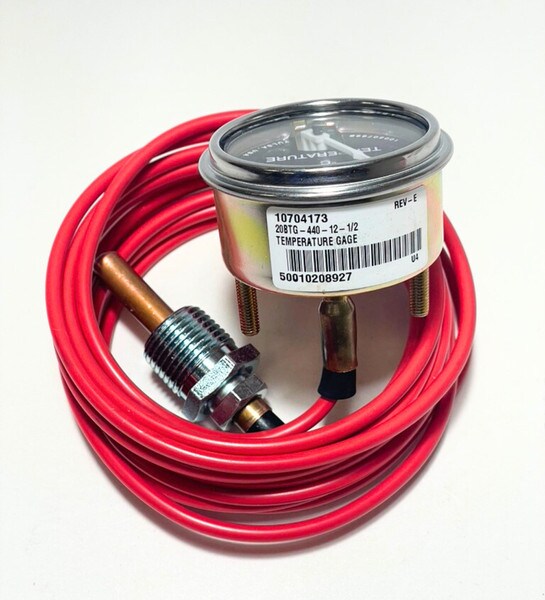

20BTG-440-12-1/2: 2" B-Series Temperature Murphygage®, 300-440°F temp range, 12 ft capillary length. (10704173)
The B-Series MURPHYGAGE® is a high quality, diaphragm-actuated indicating gage. Built by Murphy with the same heavy-duty design as the standard 20 series and 25 series SWICHGAGE®, the B-gage is more compact and is the optimum instrument for gage-only applications. It has a high impact polycarbonate lens, sturdy steel case, and a polished, low-profile stainless-steel bezel. Accuracy and protection from moderate over-pressure/over-temperature are assured by a unique, unitized diaphragm chamber, superior quality materials, and the design of the gage movement.
The temperature MURPHYGAGE® operates on the same mechanical principle as the pressure instrument. As temperature rises, the fluid in the sensing bulb vaporizes to apply pressure on the diaphragm; the movement translates this vapor pressure to a calibrated reading of temperature on the dial.
Applications
Industrial engines and equipment in Oil Field, Marine, Irrigation, Construction and Trucking industries. Monitoring Engine Coolant, Crankcase Oil, Transmission Oil
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
