20P-B3I-100 Pressure Swichgage® (05704477)
20P-B3I-100 Pressure Swichgage® (05704477)
B3 = Bezel 05051836 (was “HBB”)
I = Illumination
Range: 0-100 psi (0-689 kPa)

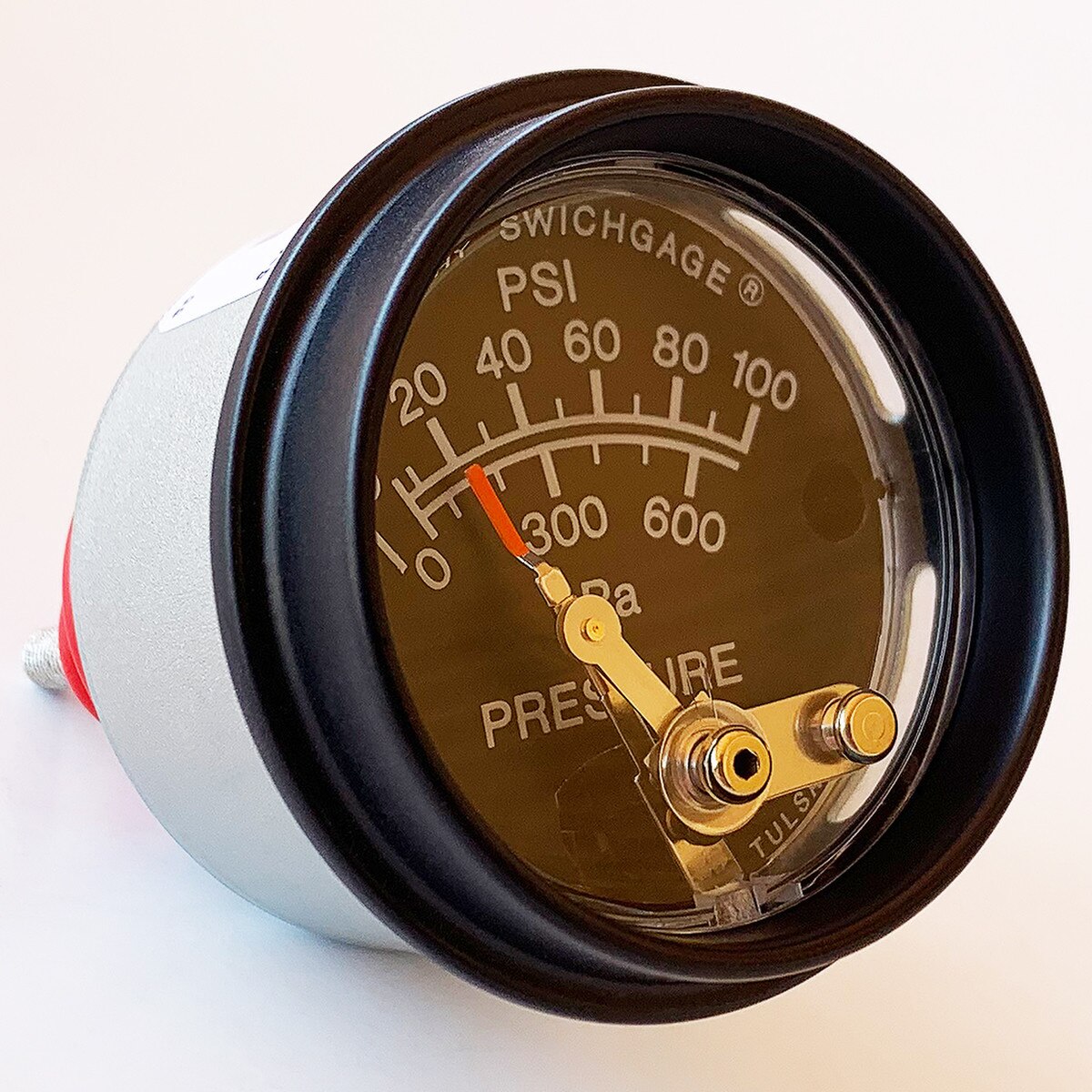

The 20P-B3I-100 is a 2" Pressure Swichgage with a Black Bezel and an Illumination option. This pressure instrument has a range of 0-100 psi.
The 20 Series (2 inch/51 mm dial) SWICHGAGE® models are diaphragm-actuated, pressure-indicating gages, with built-in electrical switches. These switches are used for tripping alarms and/or shutdown devices.
The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, breakresistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument.
Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
For models 20P the gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the SWICHGAGE® case and have self-cleaning motion to ensure electrical continuity.
