20P-I-75 Pressure Swichgage® (05703230)
20P-I-75: Pressure Swichgage® (05703230)

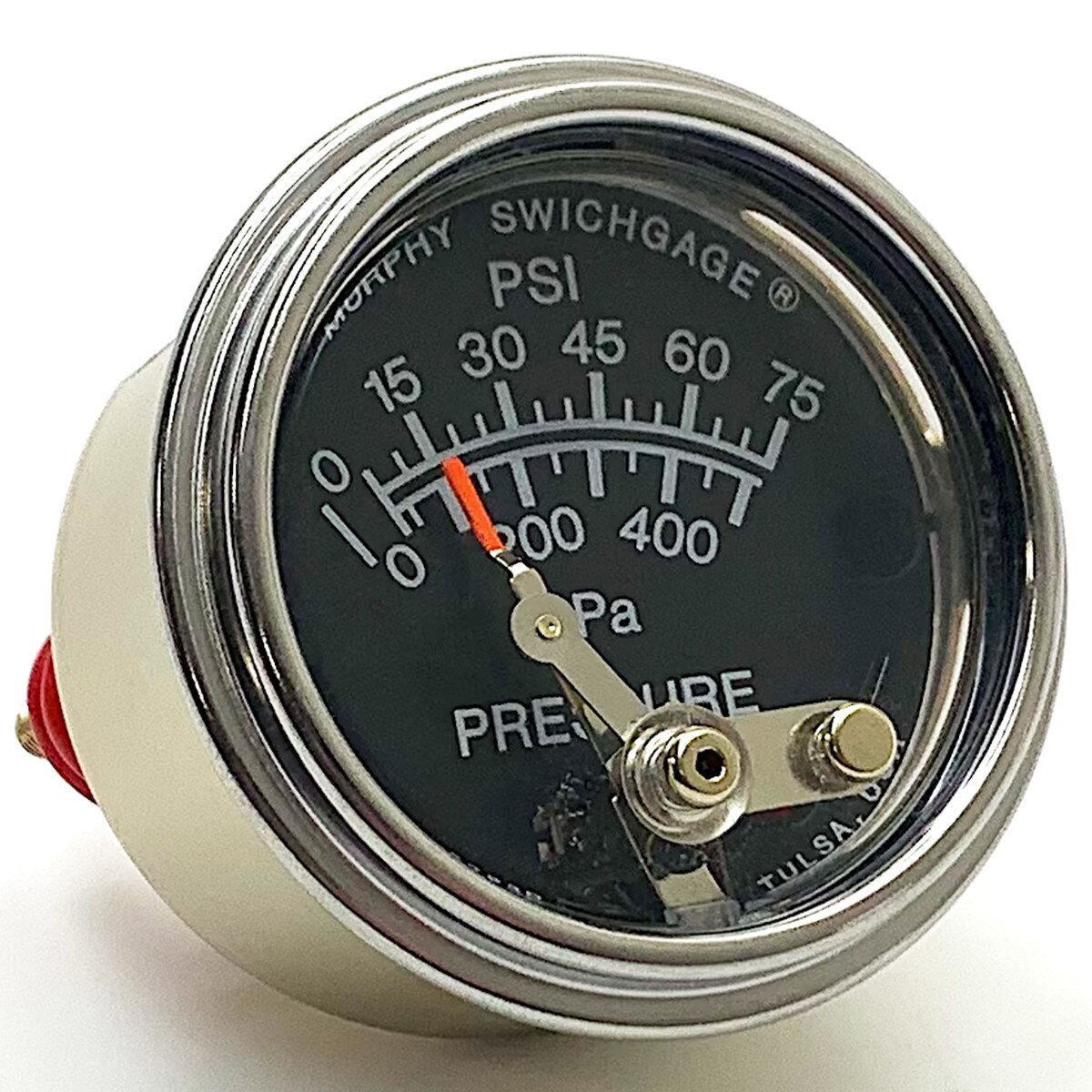

The 20P-I-75 (2 inch/51 mm dial) Swichgage® model is a diaphragm-actuated, pressure-indicating gage with a built-in electrical switch. This model features an illuminated dial and a pressure range of 0-75 psi (517 kPa) [5.0 bar]. This electrical switch exceeds SAE standards and is used for tripping alarms and/or shut-down devices.

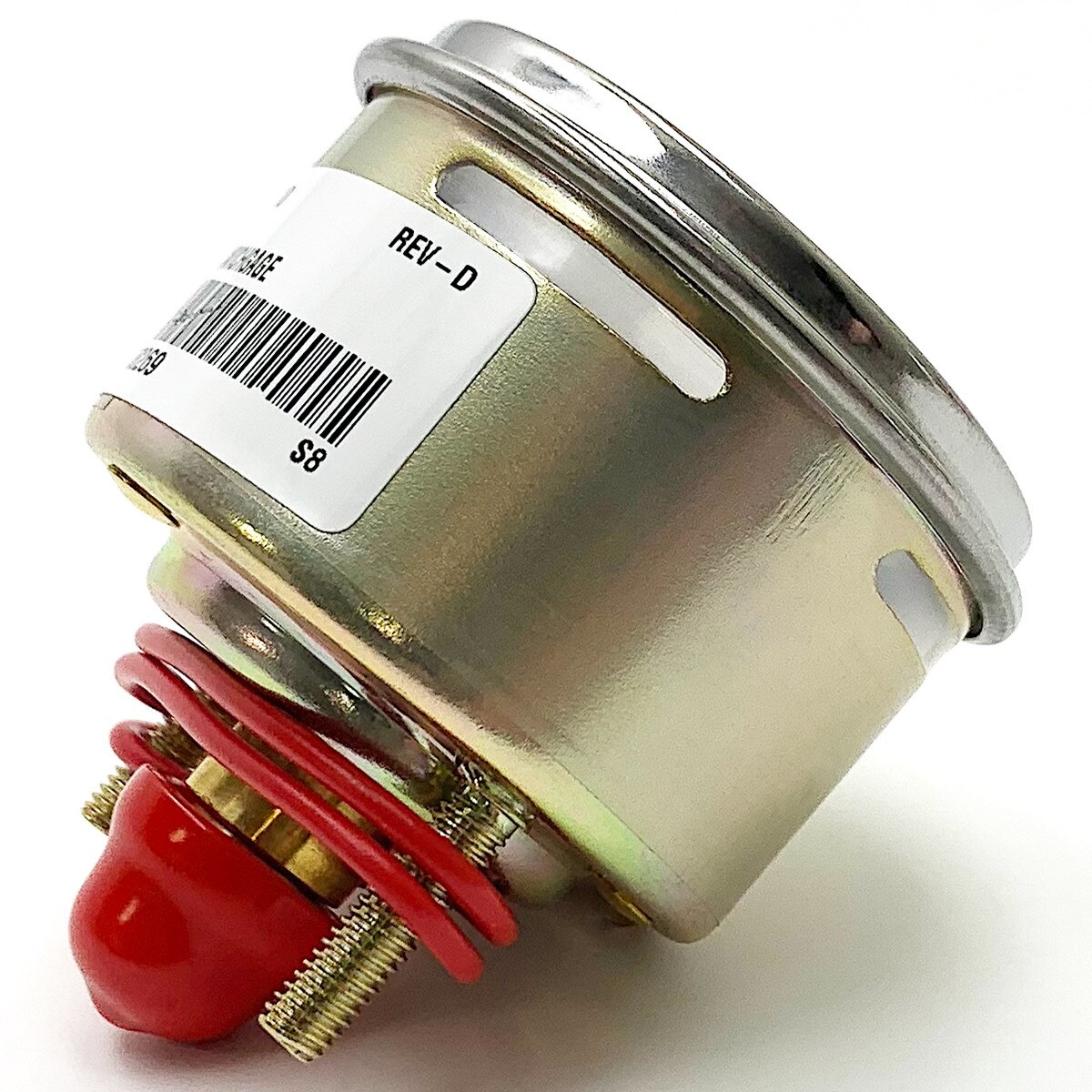

The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber.
A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning. The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the case and have self-cleaning motion to ensure electrical continuity.
The Pressure Swichgage® was specifically designed to protect engines/equipment in oil field, marine, irrigation, construction and trucking applications to monitor engine lube pressure, water pump pressure, hydraulic pressure, and air pressure.
