20P7-300 Pressure Swichgage® (05703210) *SPECIAL ORDER ITEM*
20P7-300: 2" Pressure Swichgage® w/lockout; 0-300 psi (05703210)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product.
———

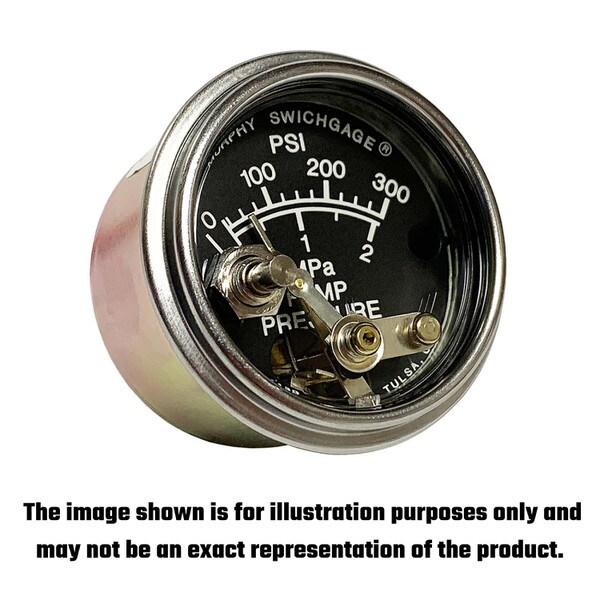

The Murphy 0-300 PSI Mechanical Lockout Pressure Swichgage 20P7-300 is a diaphragm-actuated, pressure-indicating gage with a built-in electrical switch. This swichgage is used for tripping alarms and/or shutdown devices. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning. This unit includes a front, semi-automatic lockout for startup override. This built-in device holds the pointer away from the contact on startup. When pressure exceeds the set point, the lockout is automatically disengaged.
The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the Swichgage case and have self-cleaning motion to ensure electrical continuity. The gage pointer makes with an adjustable contact to complete a pilot-duty circuit.
Specifically designed to protect engines/equipment in Oil Field, Marine, Irrigation, Construction and Trucking applications to monitor engine lube pressure, water pump pressure, hydraulic pressure and air pressure.
FEATURES:
- 2 inch/51 mm dial
- Combination Indicating Gage and Limit Switch
- Switch Can Activate Alarms and/or Shutdown Equipment
- Exceeds SAE Standards
- Semi-Automatic Lockout
