20PE-100 Pressure Swichgage® (05703176)

(0)No Reviews yet
$105.49
SKU: 20PE-100 (05703176)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

20PE-100: 2" Pressure Swichgage® w/ internal snap switches; 0-100 psi (05703176)

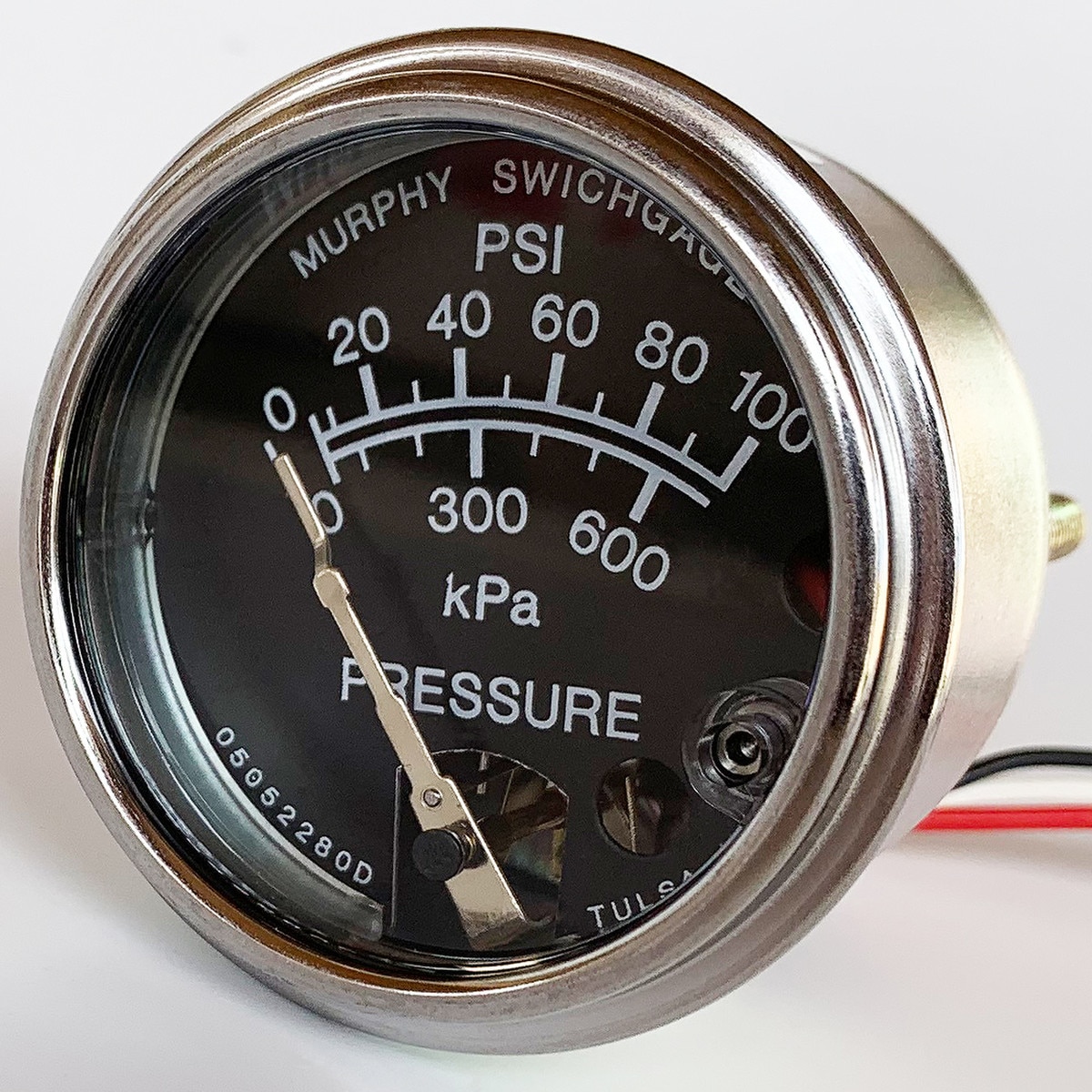

The 20PE-100 Pressure Swichgage® is a 2" dial, diaphragm-actuated pressure-indicating gage, with an internal snap-acting SPDT switch. This dual-scale instrument has a range of 0-100 psi. When the switch closes on falling pressure, it becomes set, as pressure rises the switch resets. SPDT, 3 A@ 30 VDC inductive; 4 A @ 125 VAC inductive. Snap-Switch Wire Leads: 20 AWG (0.75 mm2) x 12 in. (305 mm).
These rugged instruments are face sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel and O-ring seals. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.

Literature

  1. Sales Bulletin
  2. Installation Instructions


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
