20PE-150 Pressure Swichgage® (05703178)

(0)No Reviews yet
SKU: 20PE-150 (05703178) *RATIONALIZED*
For Price & Availability Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

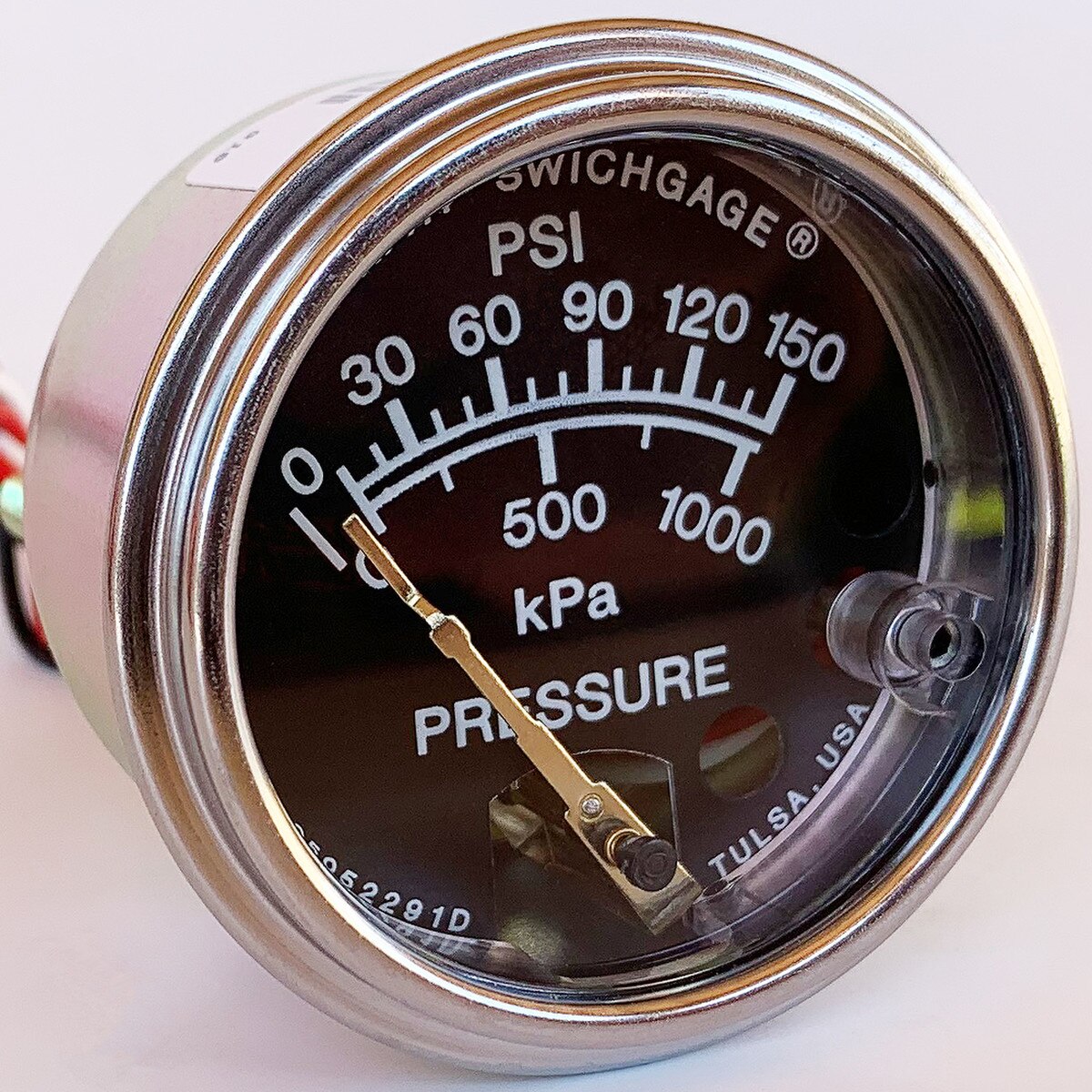

20PE-150: 2" Pressure Swichgage® w/ internal snap-switches; 0-150 psi (05703178)


The 20PE-150 Pressure Swichgage® is a 2" dial, diaphragm-actuated pressure-indicating gage, with an internal snap-acting SPDT switch.
This dual-scale instrument has a range of 0-150 psi. When the switch closes on falling pressure, it becomes set, as pressure rises the switch resets. SPDT, 3 A@ 30 VDC inductive; 4 A @ 125 VAC inductive. Snap-Switch Wire Leads: 20 AWG (0.75 mm2) x 12 in. (305 mm).
These rugged instruments are face sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel and O-ring seals.
Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.

Literature

  1. Sales Bulletin
  2. Installation Instructions


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.

For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
