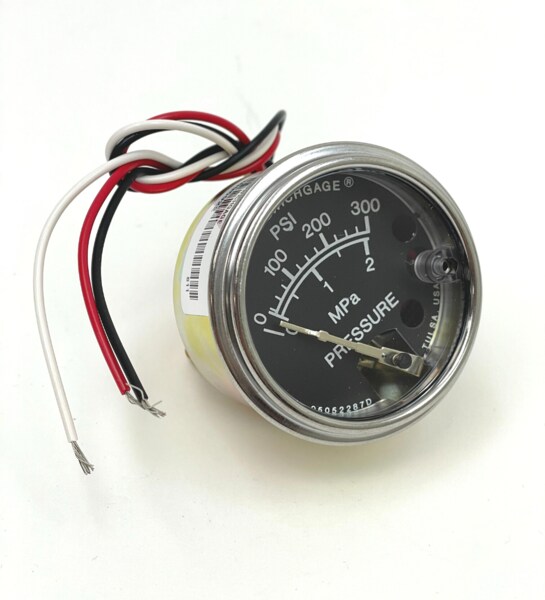

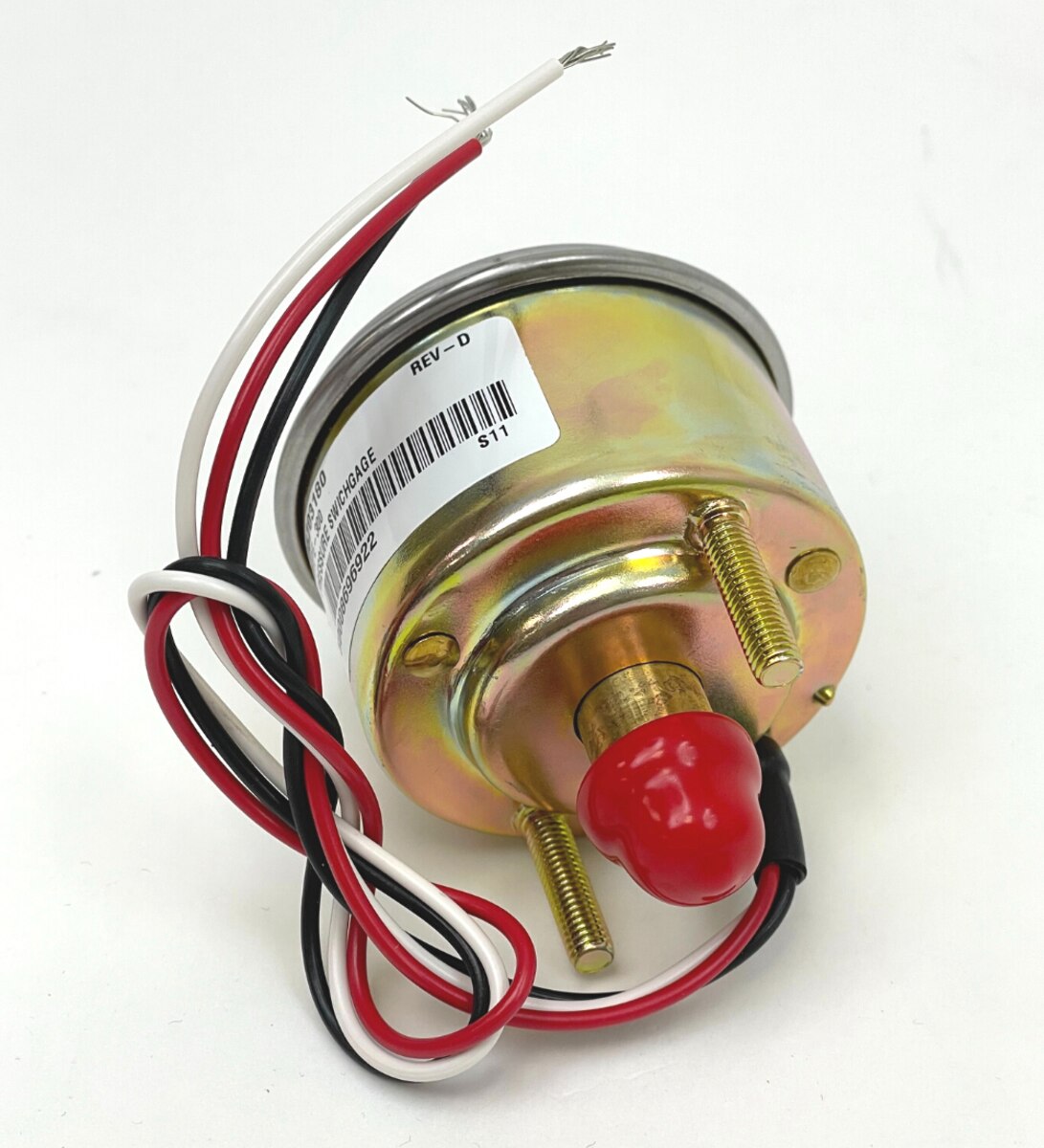

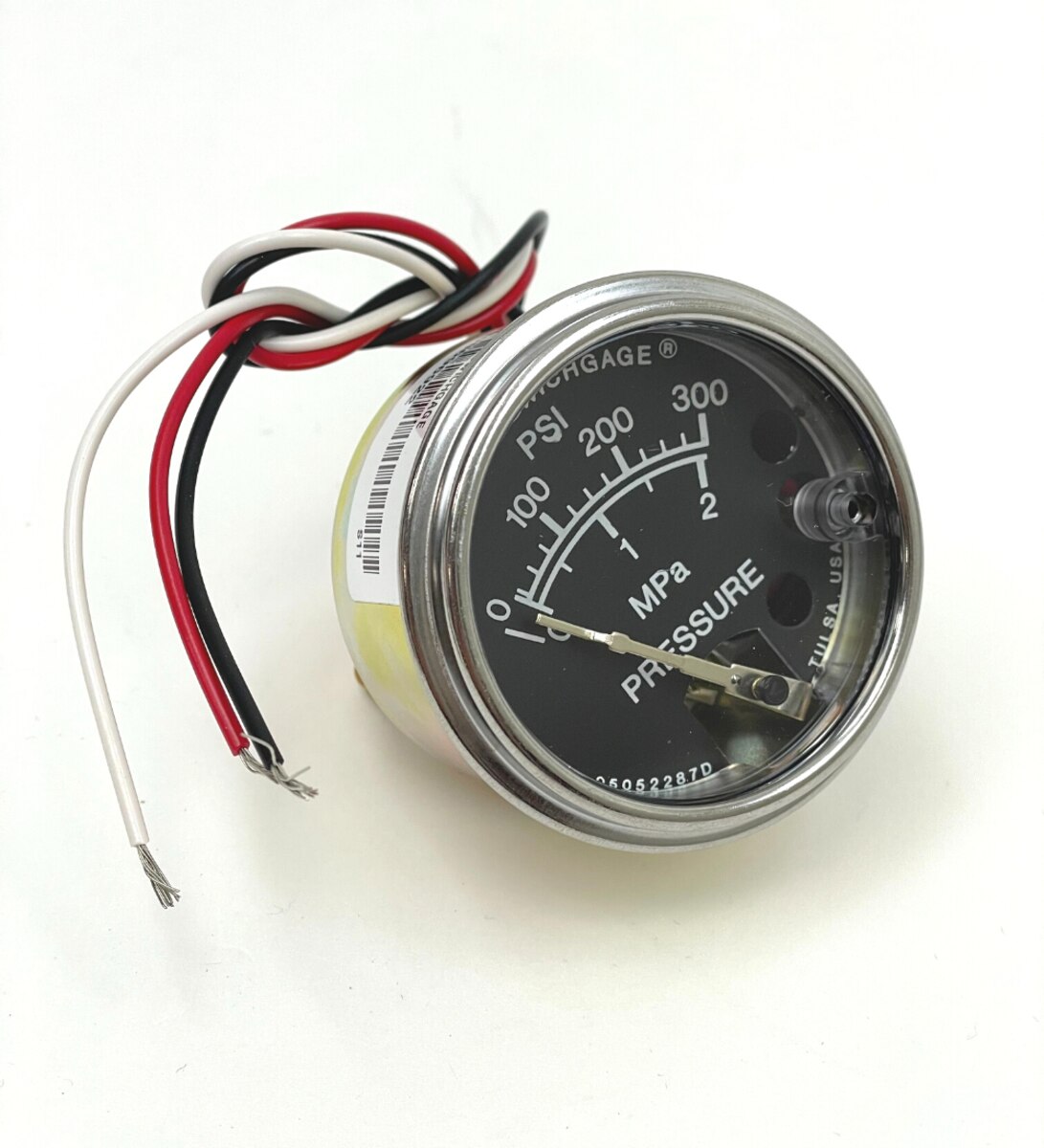

20PE-300 Pressure Swichgage (05703180)
20PE-300: 2" Pressure Swichgage w/ internal snap switches; 0-300 psi (05703180)
The 20 Series (2 inch/51 mm dial) Swichgage models are diaphragm-actuated, pressure-indicating gages with built-in electrical switches. These switches exceed SAE standards and are used for tripping alarms and/or shut-down devices.
The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
The 20PE model has internal snap-acting SPDT switches.
The Swichgage® was specifically designed to protect engines/equipment in oil field, marine, irrigation, construction and trucking applications to monitor engine lube pressure, water pump pressure, hydraulic pressure, air pressure, etc.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
