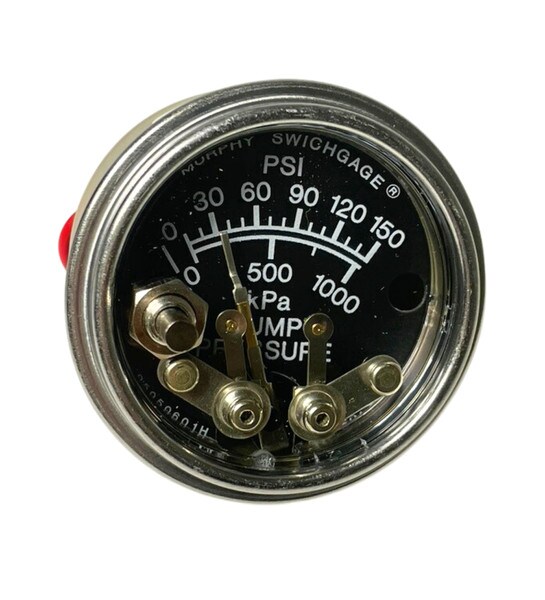

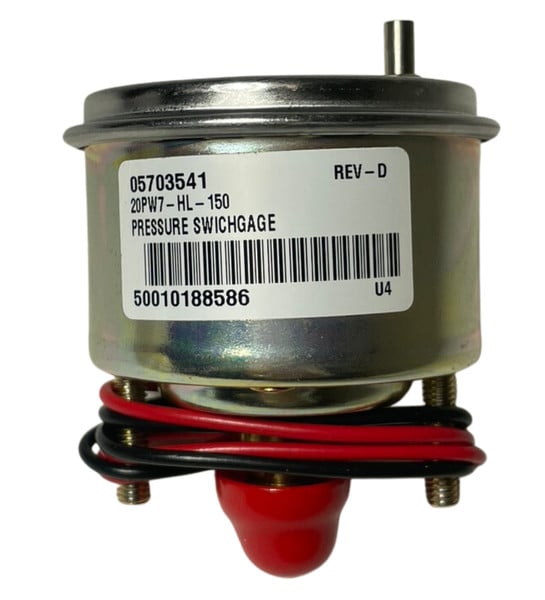

20PW7-HL-150 Water Pressure Swichgage® (05703541)

20PW7-HL-150: 2" Water Pressure Swichgage® w/lockout; 0-150 psi (05703541)

This swichgage is used for tripping alarms and/or shutdown devices. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.

This unit includes a front, semi-automatic lockout for startup override. This built-in device holds the pointer away from the contact on startup. When pressure exceeds the set point, the lockout is automatically disengaged. The low limit contact can be by-passed on start-up by pushing the lockout button. It holds the pointer away from the shutdown contact while the engine starts. The lockout will disengage automatically on rising pressure.

The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the case and have a self-cleaning motion to ensure electrical continuity. Specifically designed to protect engines and equipment in oil field, marine, irrigation, construction and trucking applications to monitor water pump pressure. Exceeds SAE standards.

Literature:

Installation Instructions
