20SD-220-1/2 Temperature Swichgage® (10702498) *SPECIAL ORDER ITEM*
20SD-220-1/2: 2" Direct Mount Temperature Swichgage®; no capillary tube; 130-220° F. temp range; 1/2-14 NPT threading (10702498)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product.
———

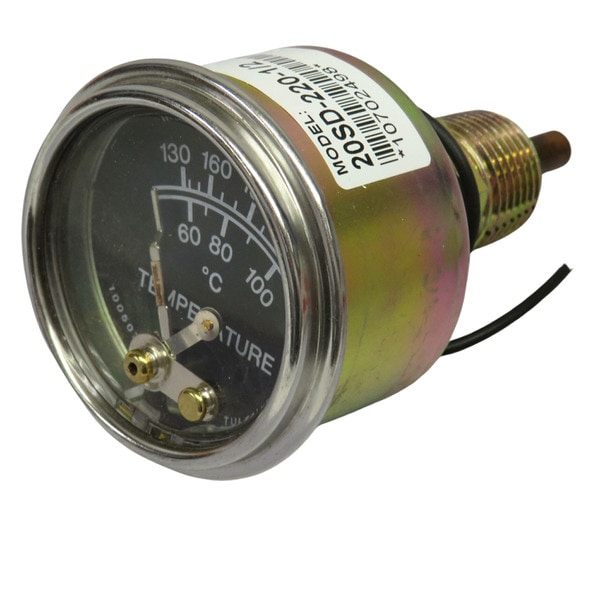

The Murphy 130-220F Direct Mount Temperature Swichgage 2 inch 20SD-220-1/2 is a diaphragm-actuated, temperature-indicating gage with a built-in electrical switch for tripping alarms and/or shutdown devices. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. This Swichgage features a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
The gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are isolated through ground. This gage has a self-cleaning motion to enhance electrical continuity. This model has no capillary tube.
FEATURES:
- 2 inch/51 mm Dial
- Polycarbonate, High-Impact Lens
- Polished Stainless Steel Bezel
- Contact Grounds Through Case
- Combination Indicating Gage and Limit Switch
- Switch Can Activate Alarms and/or Shut Down Equipment
- Enclosed in a Steel Case Coated to Resist Corrosion

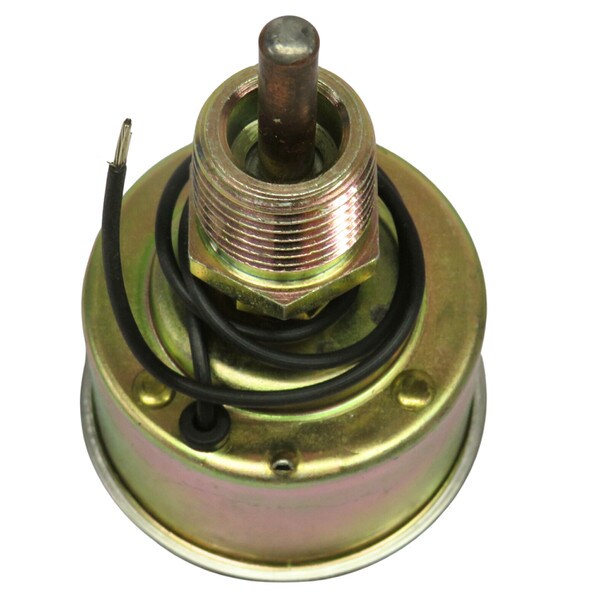

- Includes 11/32 x 1-1/2 in. (9 x 38 mm) sensing bulb
- Applications: Industrial engines and equipment in Oil Field, Marine, Irrigation Construction and Trucking industries. Monitoring Engine Coolant, Crankcase Oil and Transmission Oil
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
