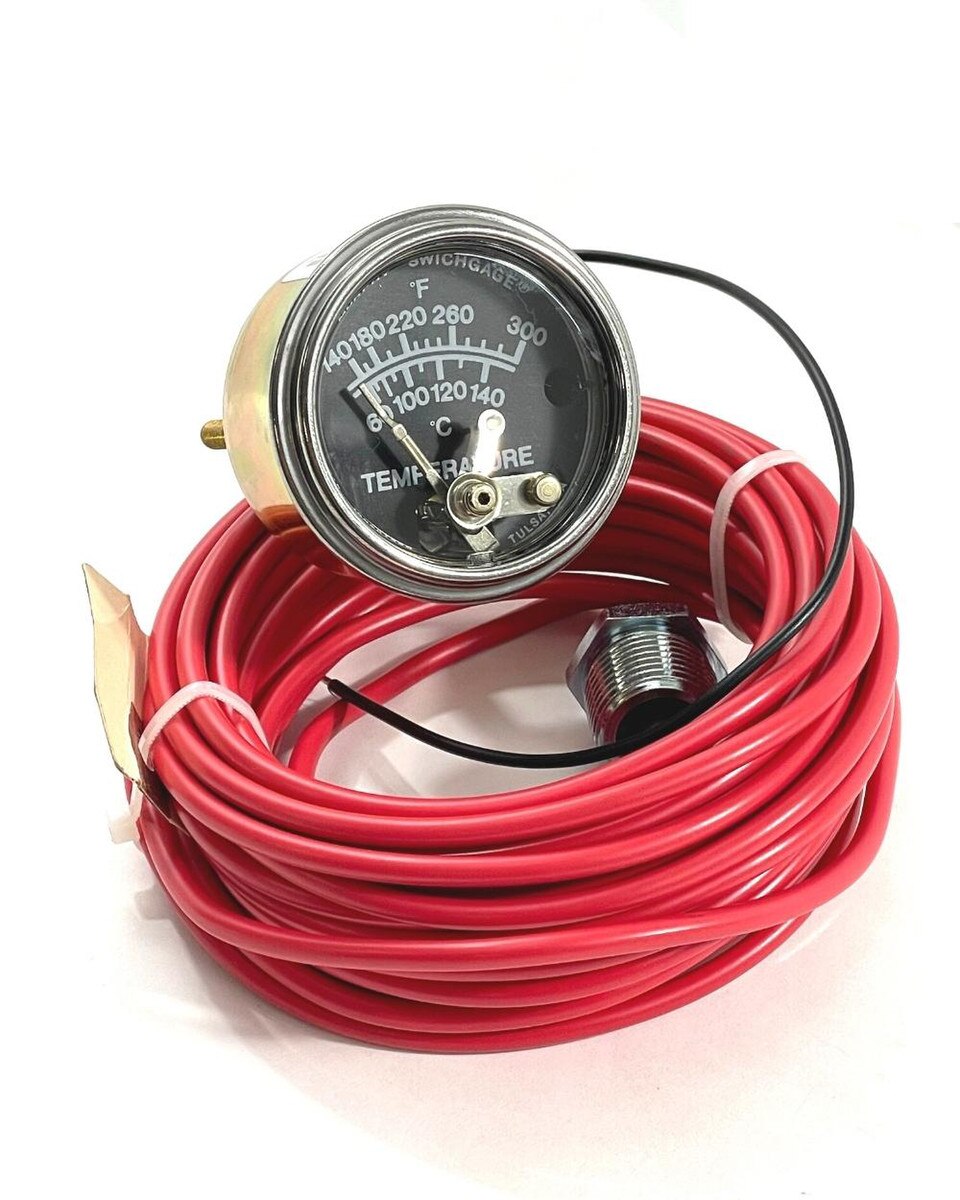

20T-300-25-1/2 Temperature Swichgage® (10702075)

20T-300-25-1/2: 2" Temperature Swichgage®; 140-300° F. temp range; 25 ft. capillary length (10702075)

—————————
*RATIONALIZED*

Lead Time: 6-8 Weeks

Due to market volatility and tariffs, pricing for Rationalized products is set at the time of order. While in-stock items are priced as shown, additional quantities or backorders are determined based on current manufacturer costs to ensure you receive the most accurate market rate. For current pricing and availability, contact us at sales@murcal.com

—————————

The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. This vapor actuated gage features a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading. The gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgage® case. This gage has a self-cleaning motion to enhance electrical continuity.

Specifications:

• Dial: White on black; U.S.A. standard scale is dual scale °F/°C; others available (see How to Order)
• Case: Plated steel; mounting clamp included (except direct mount models)
• Bezel: Polished stainless steel, standard; others available (see How to Order)
• Pointer: Tempered nickel silver
• Lens: Polycarbonate, high-impact
• Sensing Element: Beryllium copper diaphragm
• Capillary: PVC armored copper; 4 ft. (1.2 m). Stainless steel armor optional
• Sensing Bulb: Copper*
• Maximum Ambient Temperature: -40°F (-40°C) through 150°F (66°C)
• Adjustable Limit Contact: SPST contact; pilot duty only, 2 A @ 30 VAC/ VDC; Ground path through encasement. Normally Closed (NC) when the high limit is met. Normally Open (NO) when pointer is in normal operating range. Contacts are gold flashed silver.
• Limit Contact Adjustment: By a 1/16 in. hex wrench through 100% of the scale
• Limit Contact Wire Leads: 18 AWG (1.0 mm) 2 x 12 in. (305 mm)
• Snap-Switch Wire Leads: 20 AWG (0.75 mm2) x 12 in. (305 mm)
• Unit Weight: 20 Series: 12.7 oz. (0.39 kg);
• Unit Dimensions: 4-3/4 x 4-3/4 x 2-3/4 in. (121 x 121 x 70 mm)

Literature:

1. Sales Bulletin
2. Installation Instructions
3. Sensing Bulb/Scale/Capillary Length Combinations
4. Thermowell Specifications
