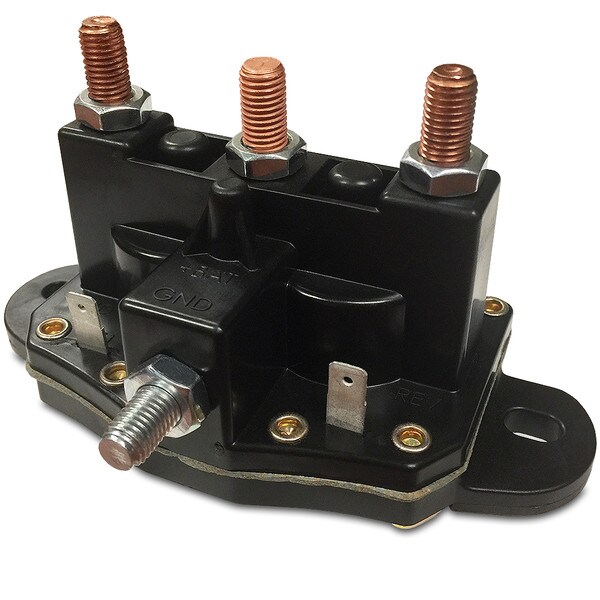

Trombetta Reversing Polarity Family: 12 Volt DC Contactor (214-1211-A11-06)

(0)No Reviews yet
$36.49
SKU: Trombetta 214-1211-A11-06

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Trombetta Reversing Polarity Family: 12 Volt DC Contactor (214-1211-A11-06)


By integrating two DC Contactors into a single housing unit, Trombetta has eliminated many costly materials and streamlined final product assembly and wire connection. Installation involves mounting a single contactor, then making six easy lead connections.

This model is popular in the Recreational Vehicle industry for service replacement use on slide-out hydraulic power units and hydraulic leveling systems, as this model reverses a permanent magnetic motor.

The "-06" suffix to the model number is for a different internal head spring which allows for a greater inrush.


Features:

  • Coil Terminals: Two (2) grounded coils. Each coil has (1) 1/4" spade and a common 5/16-24 central ground
  • Duty Cycle: 20% sustained (2 min. max on time)
  • IMPORTANT: 2 minutes (120 seconds) “ON TIME” requires a MINIMUM of 2.5 minutes (150 seconds) OFF before energizing the coil again
    IMPORTANT: 2-1/2 minutes (150 seconds) “ON TIME” requires a MINIMUM of 47.5 minutes OFF before energizing the coil again
  • Contact Material: Copper
  • Voltage: 12 Volt
  • Hose Clamp Mount Bracket
  • Seal is resistant to dust and liquid
  • PLEASE NOTE: To protect your coil terminals from the weather, consider adding the mounting hardware and insulator boot kit shown below.
  • Used to replace: LIPPERT COMPONENTS #136046.



Literature:

  1. Sales Bulletin: Reversing Polarity Family
  2. Dimensional Assembly D03924: 214 Series RP Contactor with Hose Clamp Mount Bracket
  3. Image of the Hose Clamp Mount Bracket
  4. Installation Instructions: Reversing Polarity Contactor
  5. Old Part Number Conversion Chart
  6. How To Order This Part





MurCal is an Authorized Distributor of Trombetta products.


MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
