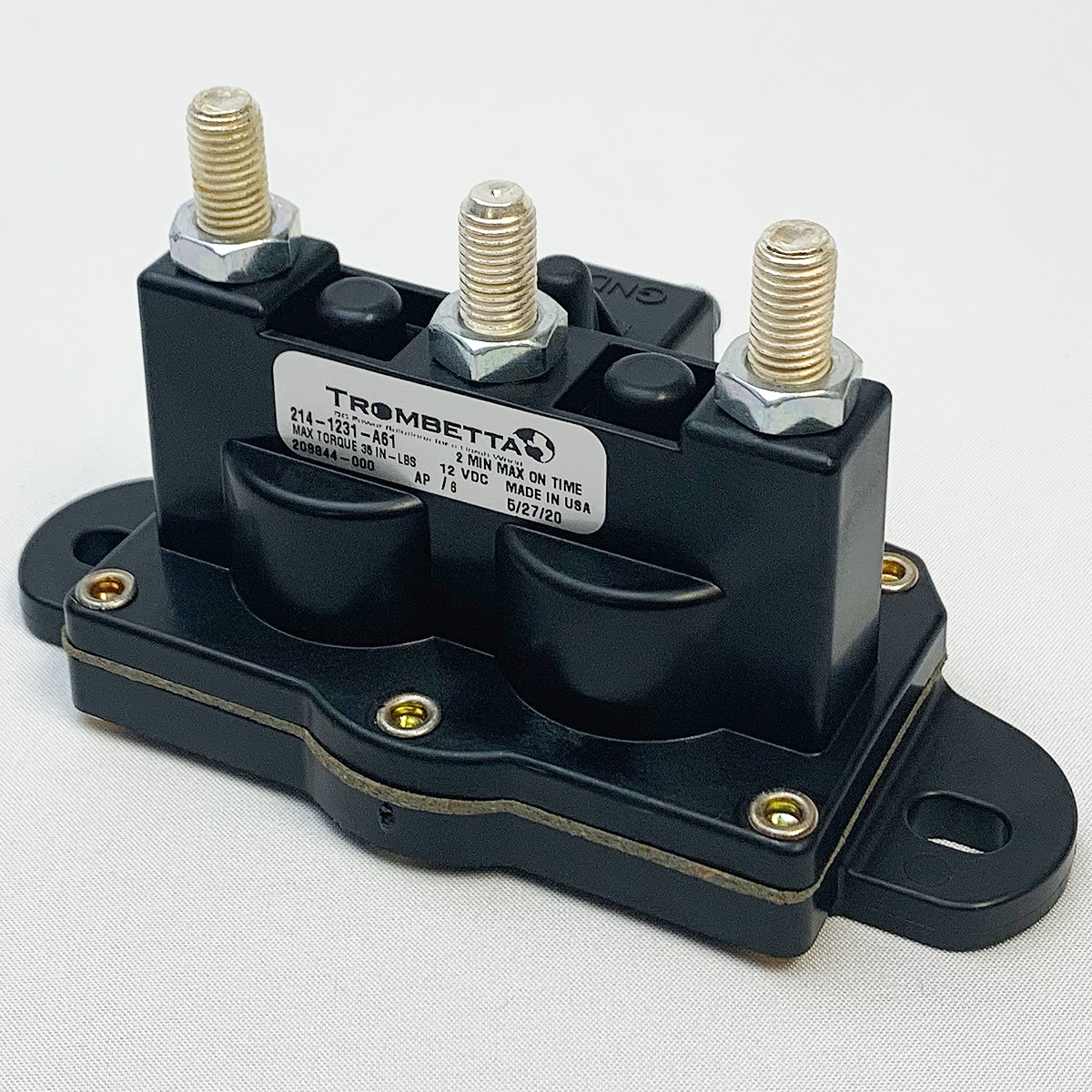

Trombetta Reversing Polarity Family: 12 Volt DC Contactor (214-1231-A61)

 By integrating two DC Contactors into a single housing unit, Trombetta has eliminated many costly materials and streamlined final product assembly and wire connection. Installation involves mounting a single contactor, then making six easy lead connections.
This model is popular in the Recreational Vehicle industry for service replacement use on slide-out hydraulic power units and hydraulic leveling systems, as this model reverses a permanent magnetic motor.

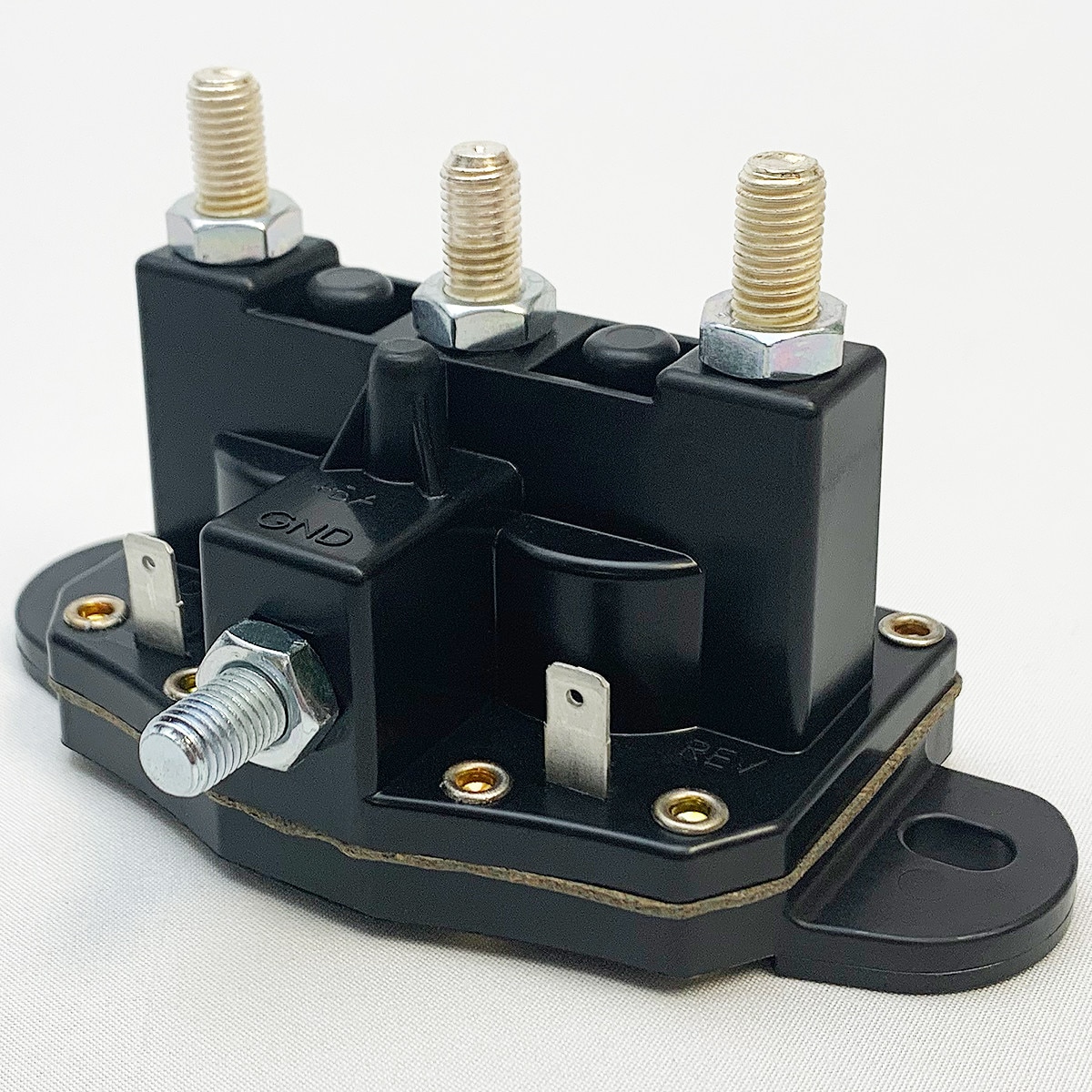

•  Coil Terminals: Two (2) grounded coils. Each coil has (1) 1/4" spade and a common 5/16-24 central ground

•  Duty Cycle: 20% sustained (2 min. max on time)

    •  IMPORTANT: 2 minutes (120 seconds) “ON TIME” requires a MINIMUM of 2.5 minutes (150 seconds) OFF before energizing the coil again

    •  IMPORTANT: 2-1/2 minutes (150 seconds) “ON TIME” requires a MINIMUM of 47.5 minutes OFF before energizing the coil again

•  Contact Material: Alloy Silver Contacts and Contact Bars

•  Voltage: 12 Volt

•  Molded Bracket

•  Seal is resistant to dust and liquid


PLEASE NOTE: To protect your coil terminals from the weather, consider adding the mounting hardware and insulator boot kit shown below.



  1. Sales Bulletin: Reversing Polarity Family
  2. Dimensional Assembly D03508: 214 Series RP Contactor
  3. Dimensional Assembly D04139: 214 Series RP Contactor
  4. Installation Instructions: Reversing Polarity Contactor
  5. How To Order This Part
