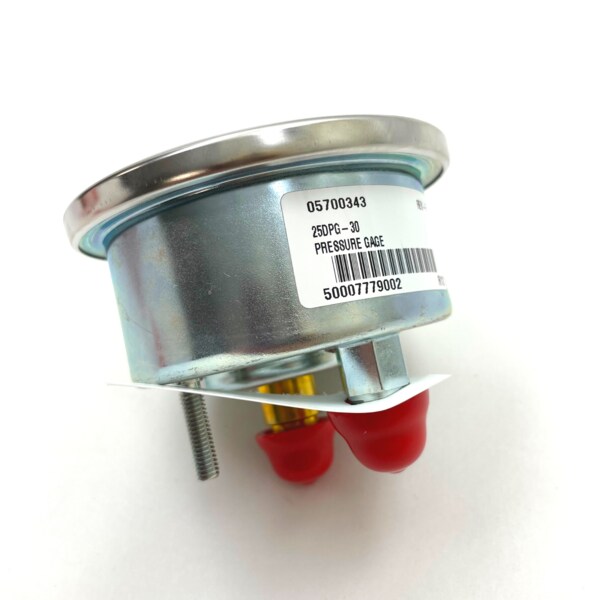

25DPG-30 Differential Pressure Murphygage® (05700343)
25DPG-30: 2.5" Differential Pressure Murphygage®; "gage-only"; 0-30 psi (05700343)
The 25DP Series (2-1/2 inch/64 mm dial) SWICHGAGE® models are diaphragm-actuated, differential pressure-indicating gages, with a built-in electrical switch. This switch is used for tripping alarms and/or shutting down equipment. These gages are intended to monitor and indicate oil, fuel or water filter restriction and can reduce the risk of dangerously high pressure which may rupture the filter, resulting in contaminants entering the system.

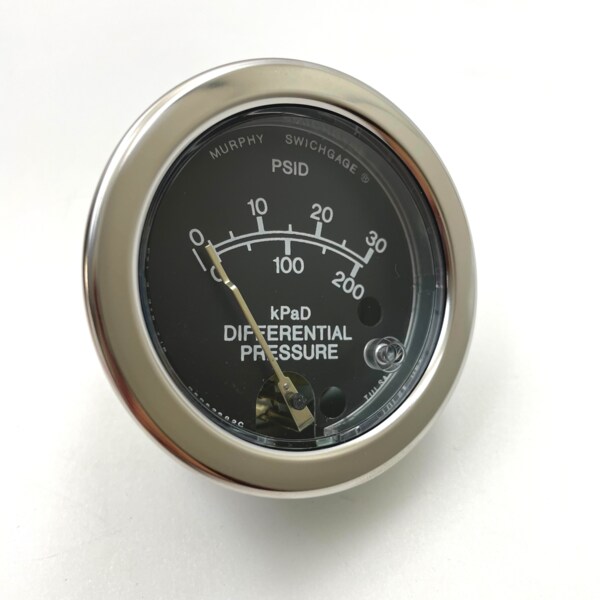

The 25DP series mechanism is enclosed in a steel case coated to resist corrosion. All feature a polycarbonate, break-resistant lens and a polished, stainless-steel bezel to help protect these rugged, built-to-last instruments. The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts have self-cleaning motion to ensure electrical continuity.
The 20DPG MURPHYGAGE® is a Gage without contact(s).
