25P-OS-100 Pressure Swichgage (05704049) *Rationalized
25P-OS-100: 2.5" Pressure Swichgage; Oil Sealed; 0-100 psi (05704049)
*Rationalized-must be quoted every time.

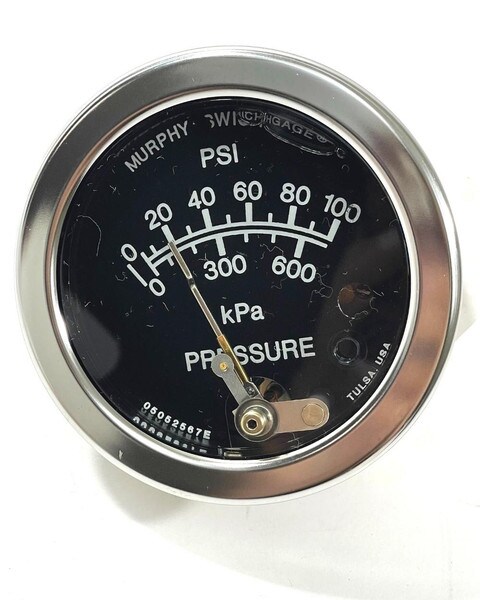

The 25 Series (2-1/2 inch/64 mm dial) SWICHGAGE® models are diaphragm-actuated, pressure-indicating gages, with built-in electrical switches. These switches are used for tripping alarms and/or shutdown devices.

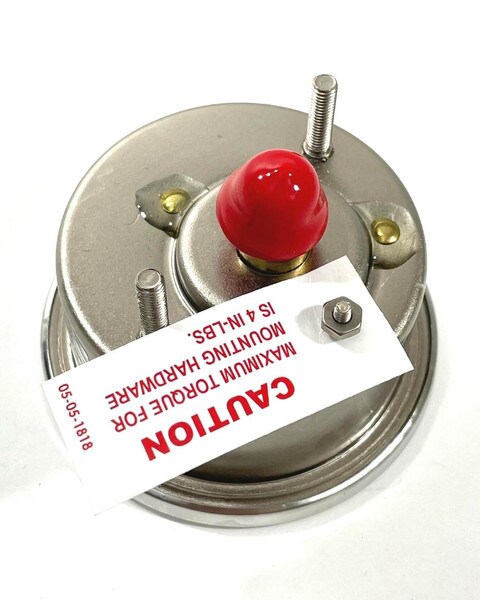

The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure are assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
For model 25P, the gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the SWICHGAGE® case and have self-cleaning motion to ensure electrical continuity.
OS = Oil sealed (Silicone Oil)
100 = 0-100 (psi) 0-689 (kPa/MPa)
Literature:
