2FB53-73/TABS Switch (00009168) *SPECIAL ORDER ITEM*
Details

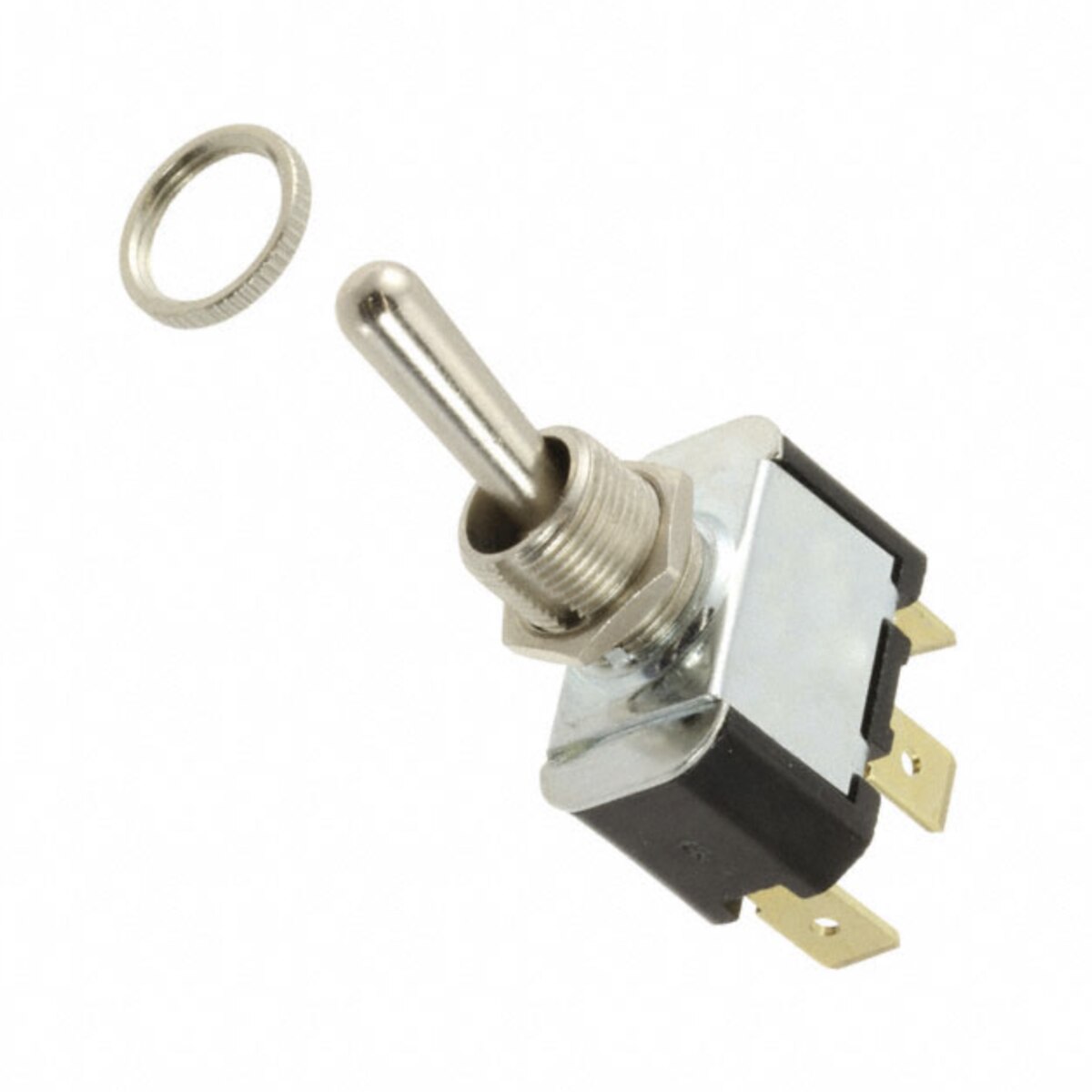

Carling Technologies: Switch 2FB53-73/TABS (00009168)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 6 Weeks For Delivery Of This Product
———
Carling F Series — Heavy Duty AC Rated Toggle Switches:
The F-Series single toggle switches feature a slow-make, slow-break contact mechanism. They are AC rated and are also suitable for low voltage DC rated applications. They fit the industry standard .500 diameter mounting hole. These switches are available in a wide range of momentary and maintained single or double throw circuits, terminations, and bushing/toggle configurations.
Features:
- Ratings to 20A
- Suitable for low voltage 12/24V DC
- Variety of termination options
- Consult factory for large choice of bushing/toggle length combinations
- Dialectic Strength: 1000V — live to dead metal parts
- Electrical Life: 50,000 cycles — maintained, 25,000 cycles — momentary
- Mechanical Life: 100,000 cycles
- Operating Temperature: 0 F to 150 F (-17.8 C to +65.6 C)
Applications: - Marine
- Food Service
- Generator
- Industrial Control
- Office Automation
