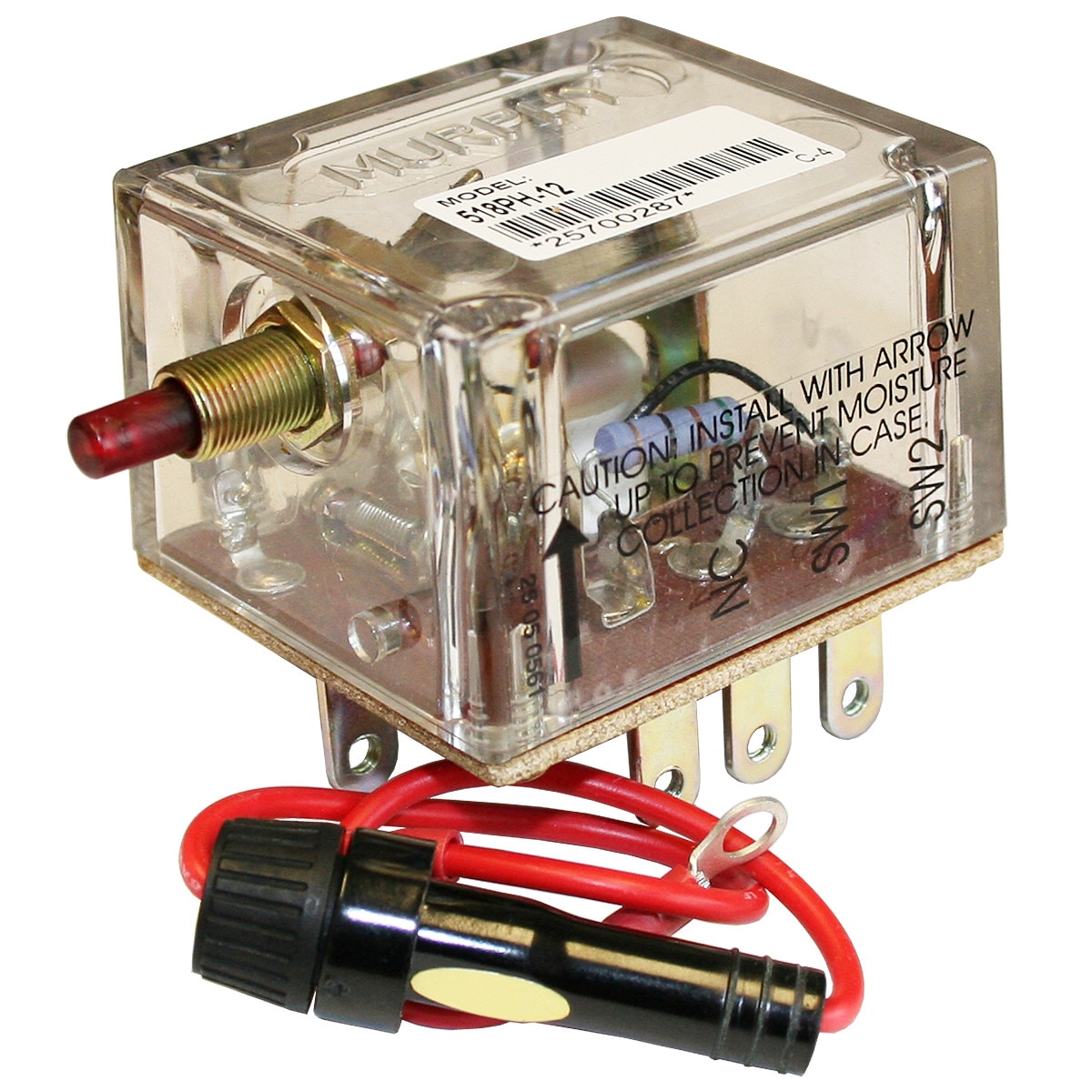

518PH-12 12 Volt Tattletale® (25700287)
518PH-12 12 Volt Tattletale® (25700287)
The Murphy 518PH-12 Tattletale® allows for Swichgage® and/or N.C. contacts to be wired "Closed Loop" (in series). Any contact open or Swichgage® contact close in the circuit shunt trips the 518PH-12.
The 518PH-12 is a 12-volt model which features a manual indicating reset type. The control circuit output contact is NCH. In the latched position the NCH contact has a "hot" output. The latch type is energized to latch. Contacts are rated for 10 amps 12V. A 14-amp fuse is included. Use for distributor ignition or diesel engines.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
