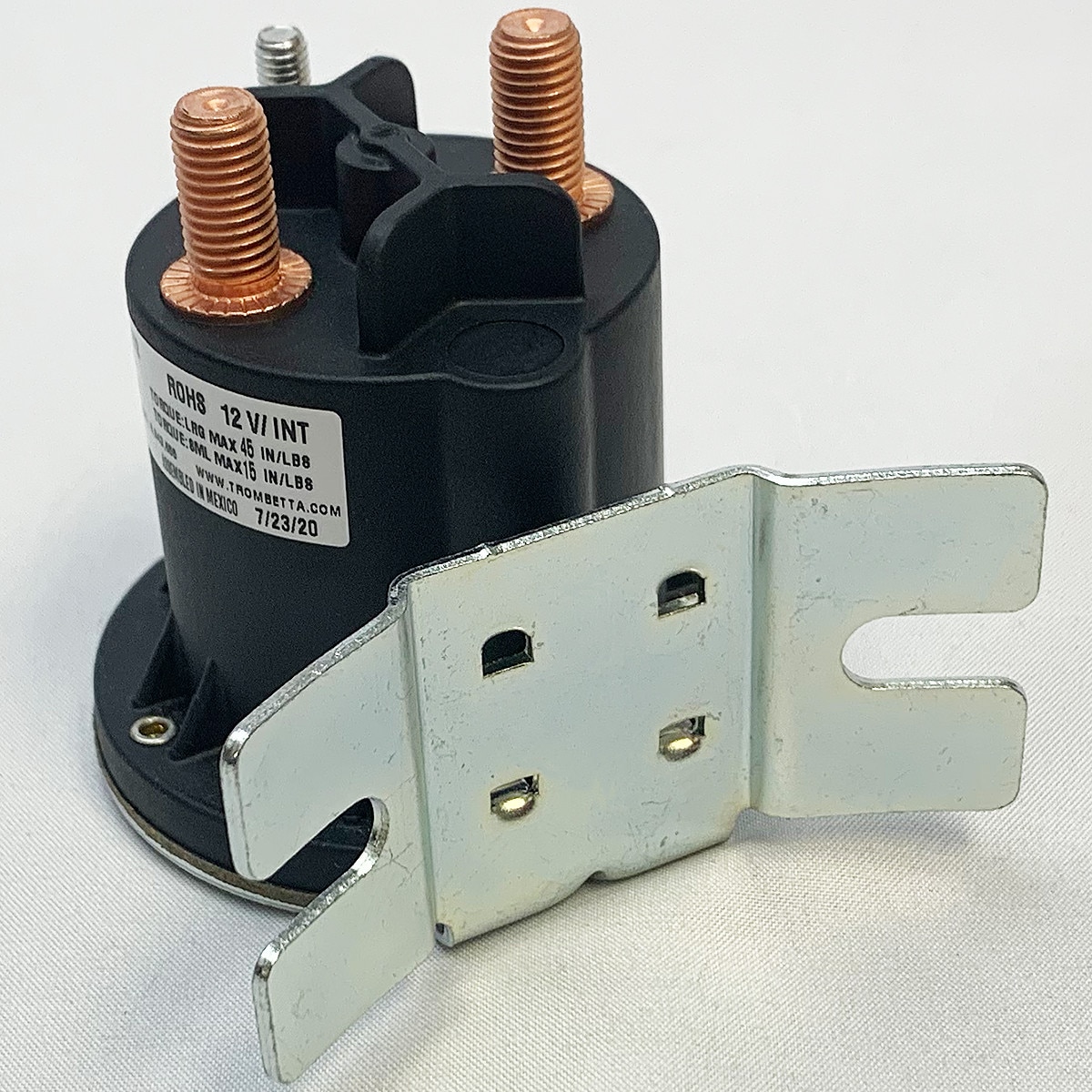

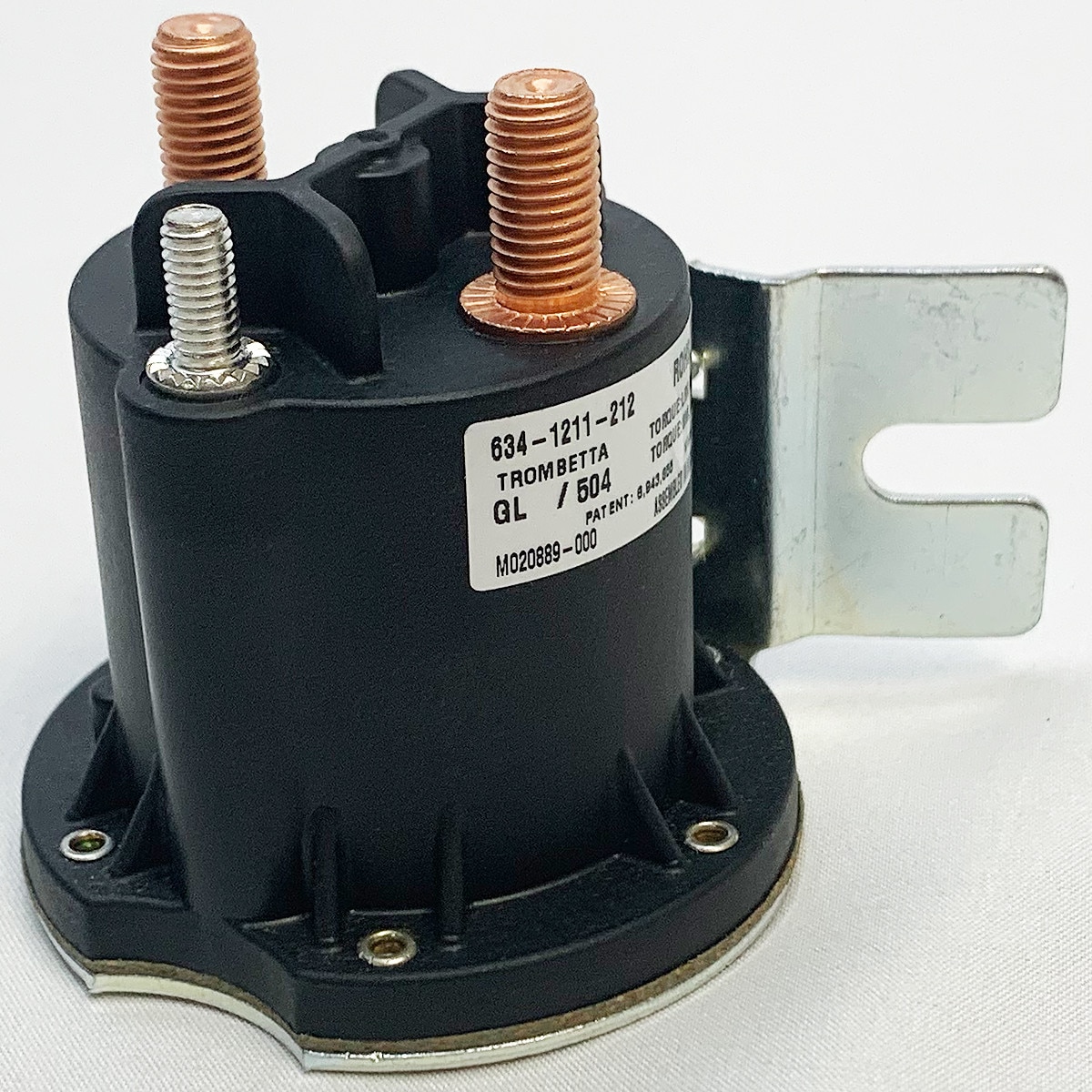

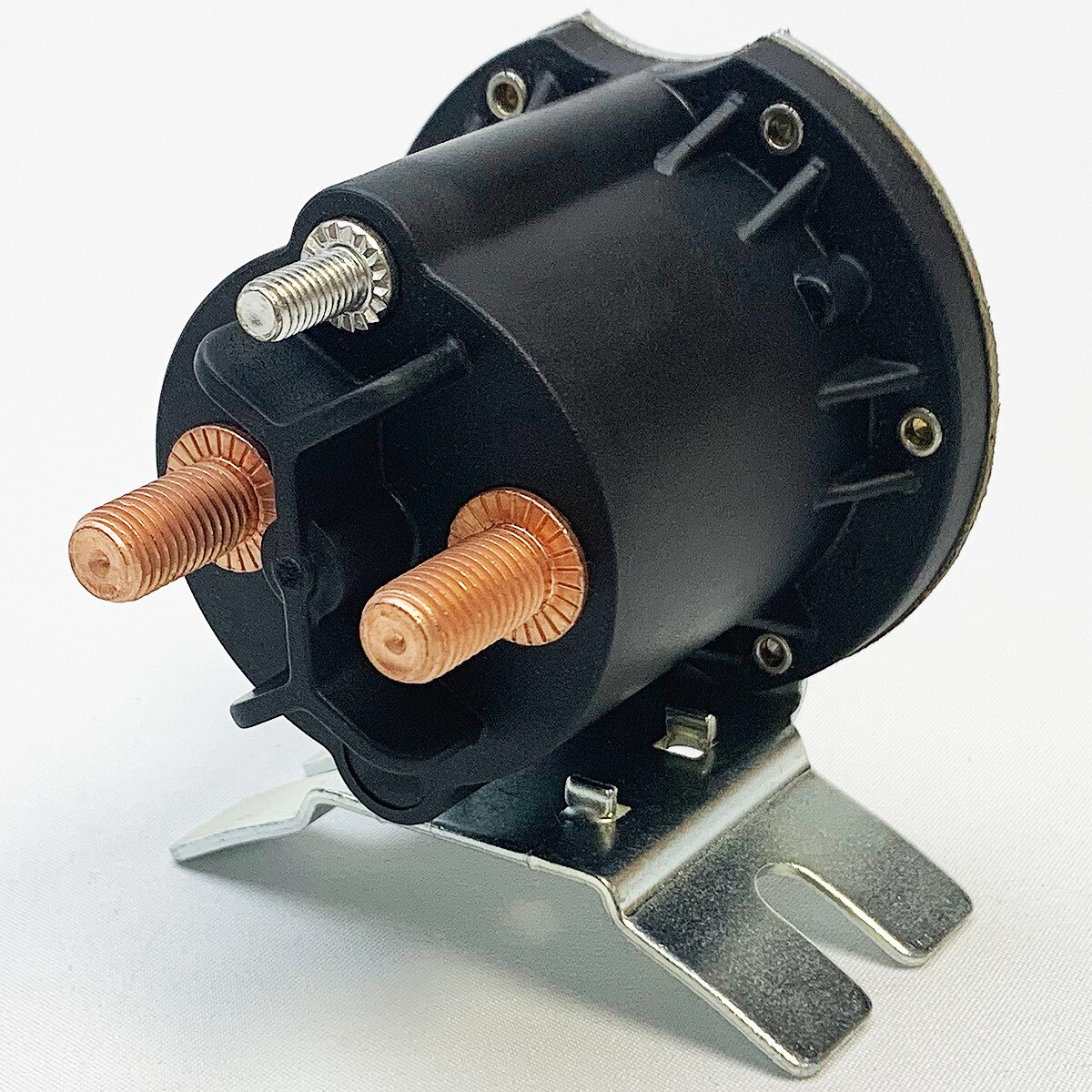

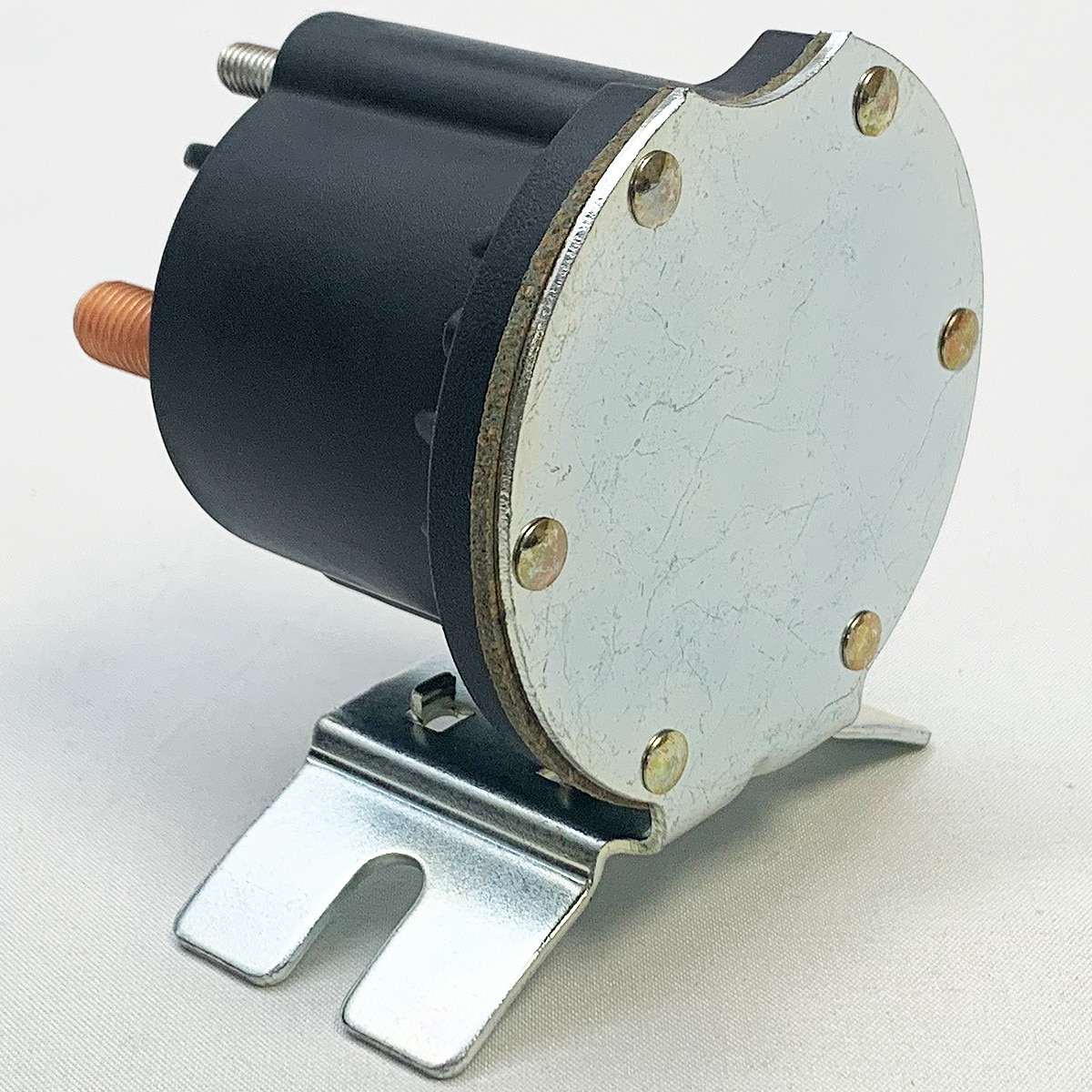

Coil terminals: grounded, one (1) 10-32; Contact studs: two (2) 5/16-24; Duty cycle: 25% sustained duty (6 min. max on time); Contact material: copper; curved "L" mounting bracket; Voltage: 12V; Sealed design protects against dust and water jets.
The PowerSeal?s IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.
Sales Bulletin: Intermittent Duty PowerSeal Family
Sales Bulletin: Continuous Duty PowerSeal Family
Dimensional Drawing: 634-XX11 (E08393)
Installation Instructions: Grounded PowerSeal Contactor
How To Order This Part
