Trombetta 12 Volt DC Contactor (634-1261-212)

(0)No Reviews yet
$13.75
SKU: Trombetta 634-1261-212

This item is IN STOCK

Current Stock: 651

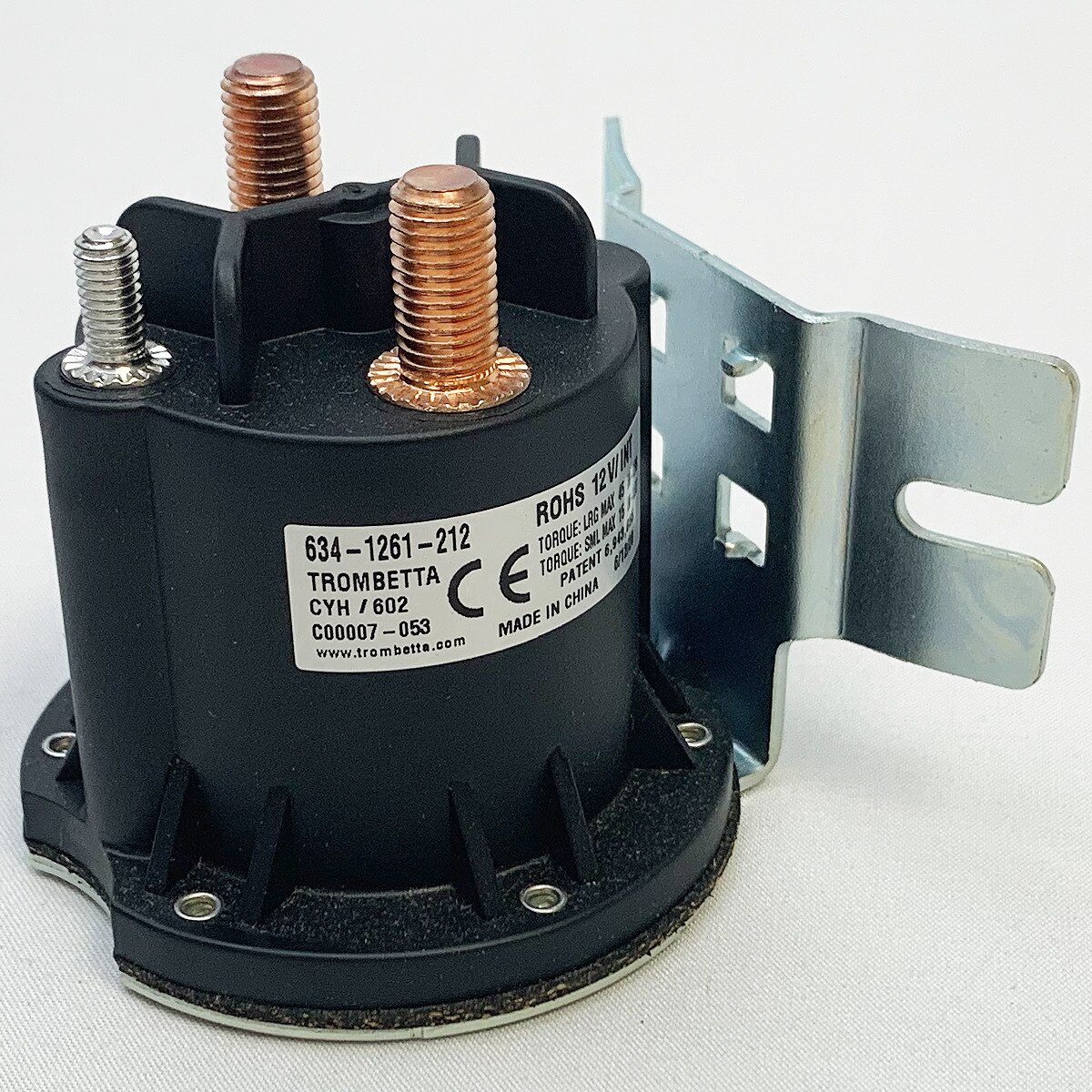

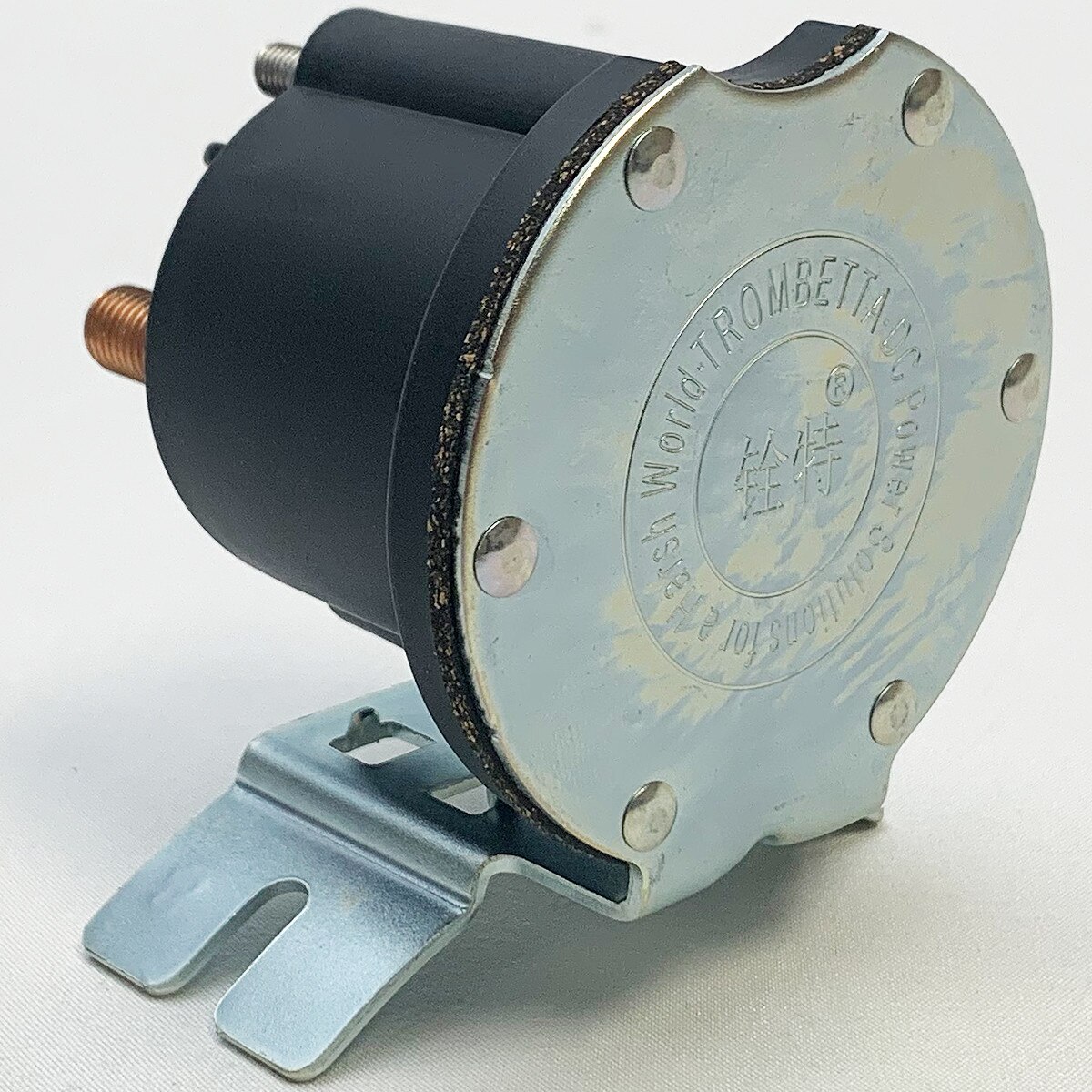

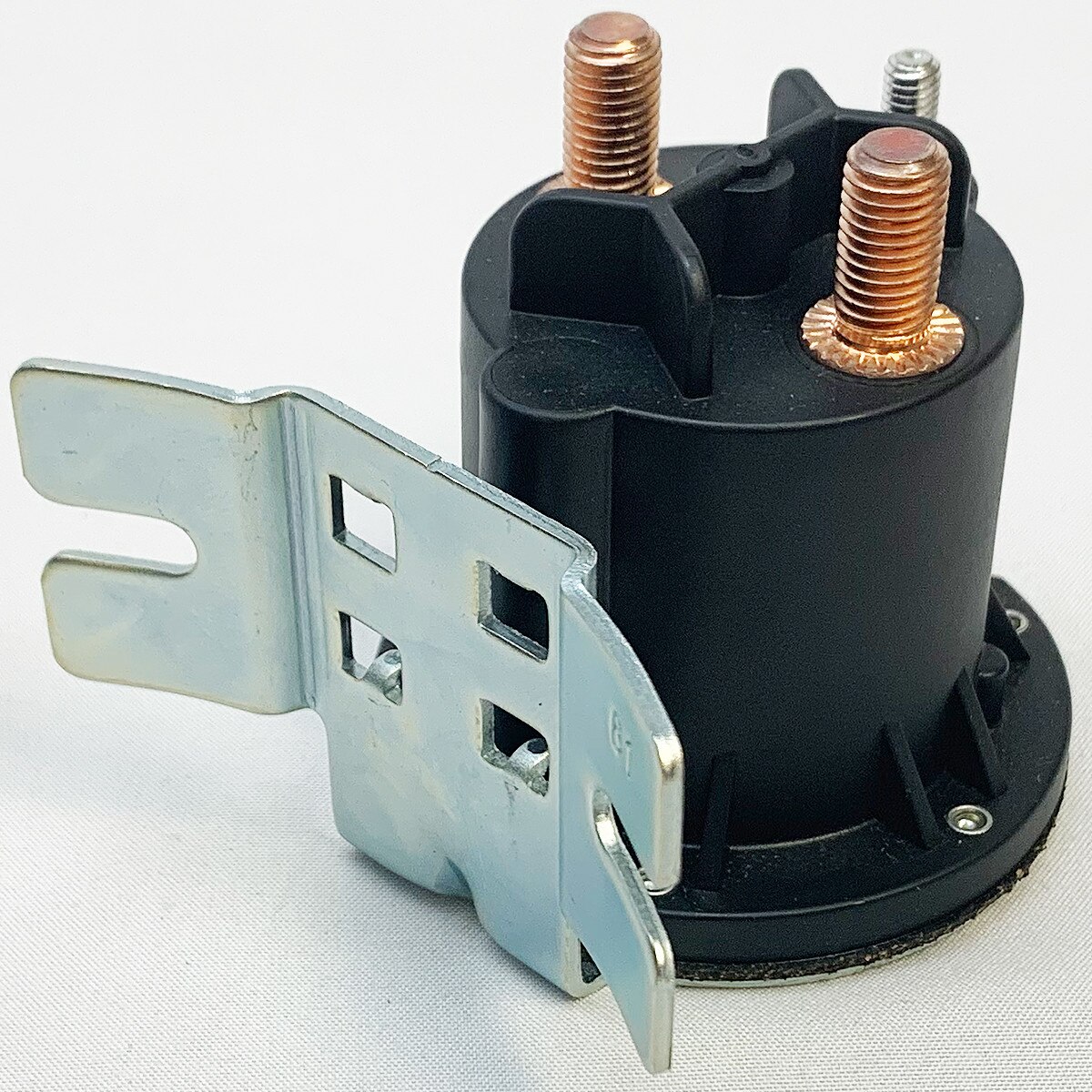

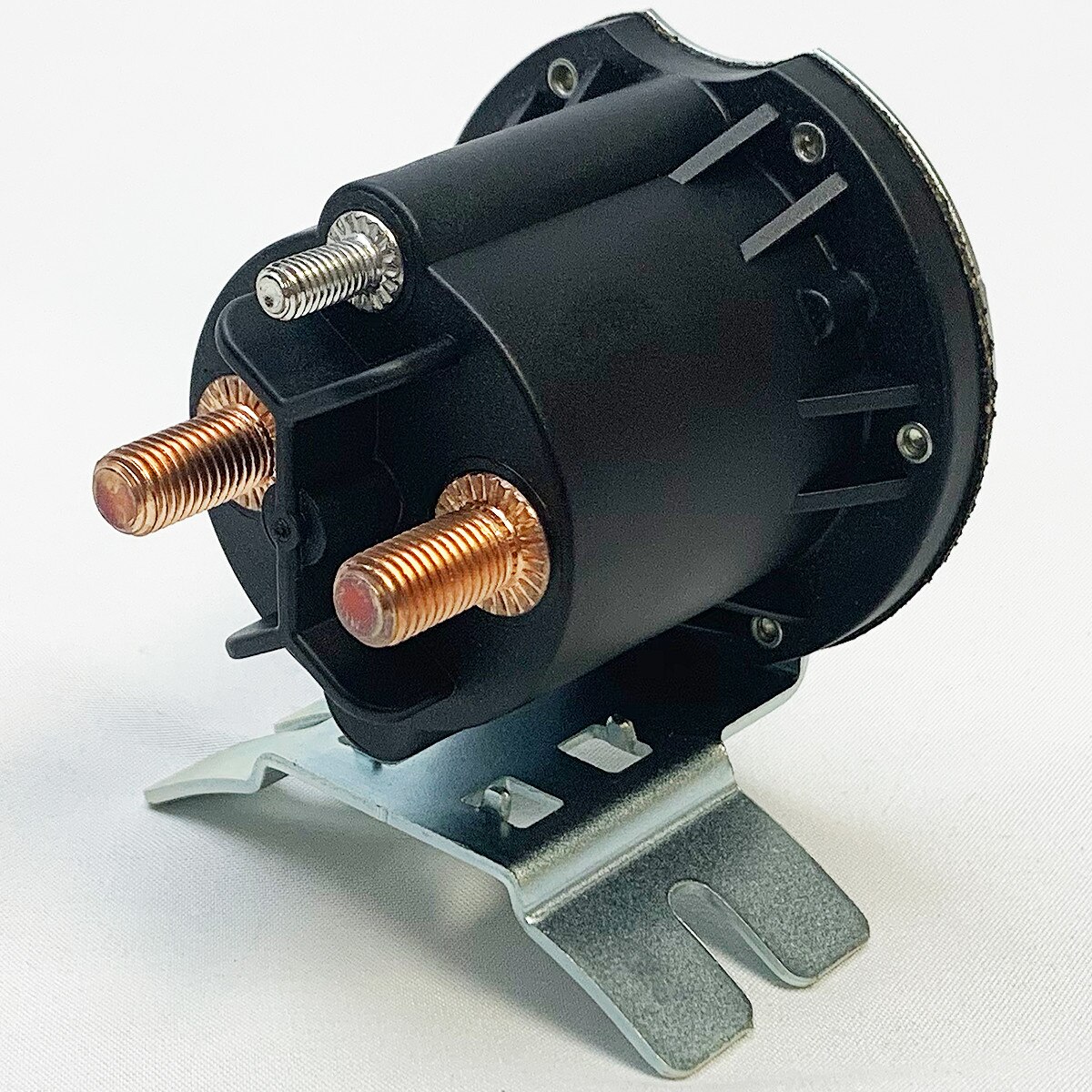

Trombetta PowerSeal Family: 12 Volt DC Contactor; 3-terminals w/ (2) 5/16-24 & (1) grounded 10-32 stud; intermittent duty; copper contacts; sealed design; narrow curved L-bracket (634-1261-212)


The unique design of the Trombetta 634-1261-212 PowerSeal DC Contactor allows it to be used in tough environmental conditions. If your application requires a sealed or submersible design, you must have the PowerSeal.
The PowerSeal's IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.

Features:
  • Three Coil terminals: grounded, one (1) 10-32;
  • two (2) contact studs: 5/16-24;
  • Duty cycle: 25% sustained (6 min. max on time);
  • Contact material: copper; narrow, curved L- bracket.
  • Sealed design protects against dust and water jets.

NOTE:

For those looking for a previous version of this product, the 634-12C1-212-09 and the 634-1261-212 are electrically and dimensionally identical, except for the height of the bracket slot which is .28 vs .20.
Here's some drawings with both connections.

634-12C1-212-09 below



634-1261-212 below




The installer may need narrower mounting screws to accommodate the slot height in the 634-1261-212.


Literature:
  1. Sales Bulletin: Intermittent Duty PowerSeal Family
  2. Sales Bulletin: Continuous Duty PowerSeal Family
  3. Dimensional Drawing: 634-XX61 (E08515)
  4. Installation Instructions: Grounded PowerSeal Contactor
  5. How To Order This Part
