Trombetta PowerSeal Family: 24 Volt DC Contactor (684-2411-212)

(0)No Reviews yet
$15.49
SKU: Trombetta 684-2411-212

This item is IN STOCK

Current Stock: 53

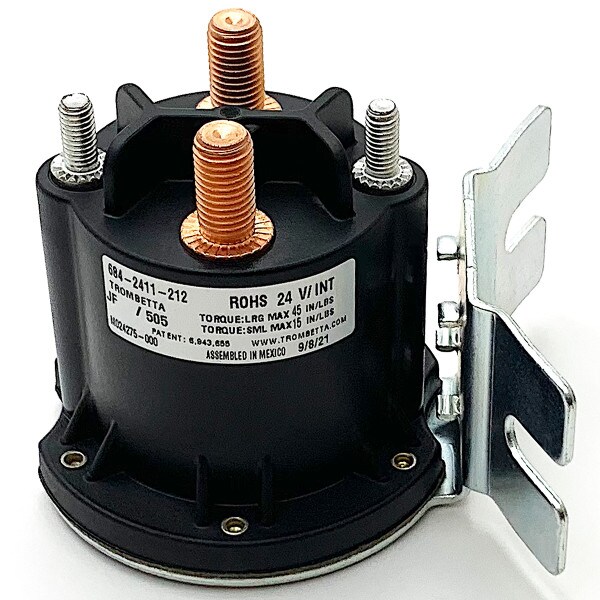

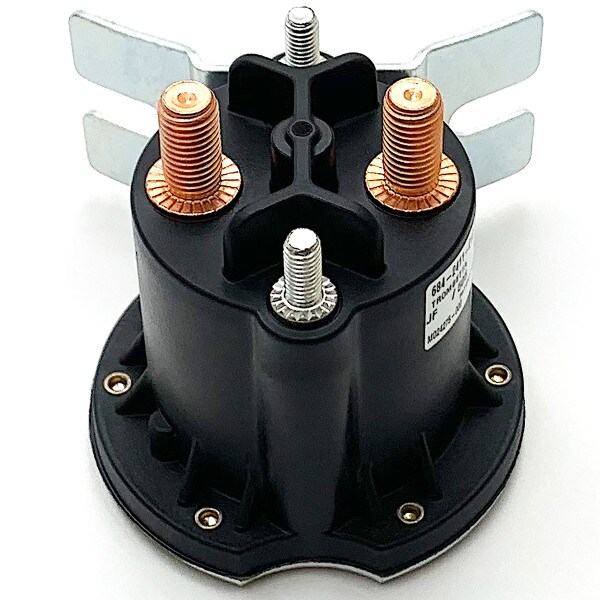

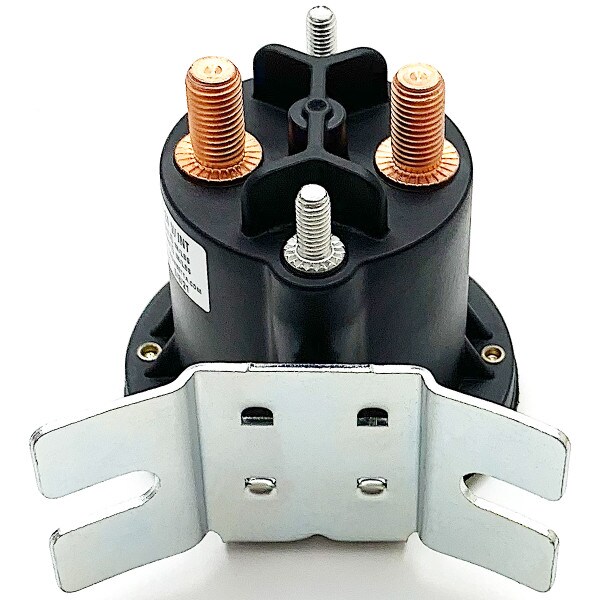

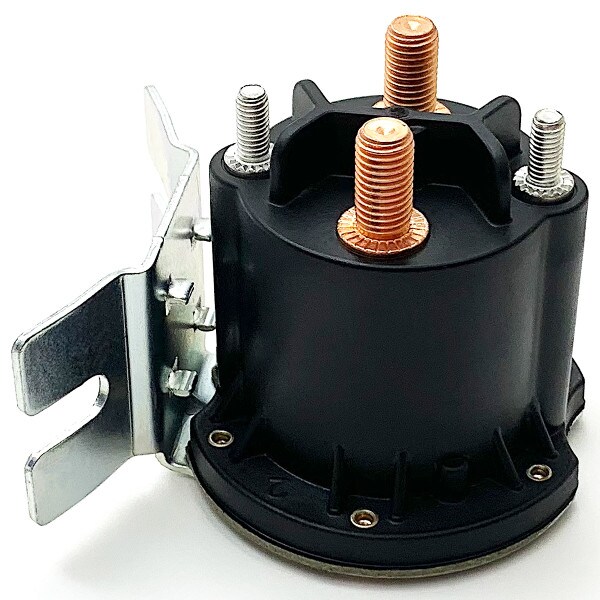

Trombetta PowerSeal Family: 24 Volt DC Contactor; 4-terminals: (2) 5/16-24 high current studs; (2) non-grounded 10-32 studs; 25% intermittent duty; copper contacts; sealed design; curved L-bracket (684-2411-212)



The unique design of the Trombetta 684-2411-212 PowerSeal 24 Volt DC Contactor allows it to be used in tough environmental conditions. If your application requires a sealed or submersible design, you must have the PowerSeal.

Coil terminals: Non-grounded, two (2) 10-32; Contact studs: two (2) 5/16-24; Duty cycle: 25% intermittent; Contact material: copper; Curved "L" mounting bracket; Voltage: 24V. Sealed design protects against dust and water jets.

The PowerSeal’s IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.



Literature:

  1. Sales Bulletin: Intermittent Duty PowerSeal Family
  2. Dimensional Drawing: 684-XX11 (E08498)
  3. Installation Instructions: Non-Grounded PowerSeal Contactor
  4. How To Order This Part


MurCal is an Authorized Distributor of Trombetta products.


MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
