684-1221-012

(0) No Reviews yet
$13.49
SKU: Trombetta 684-1221-012

This item is IN STOCK

Current Stock: 27

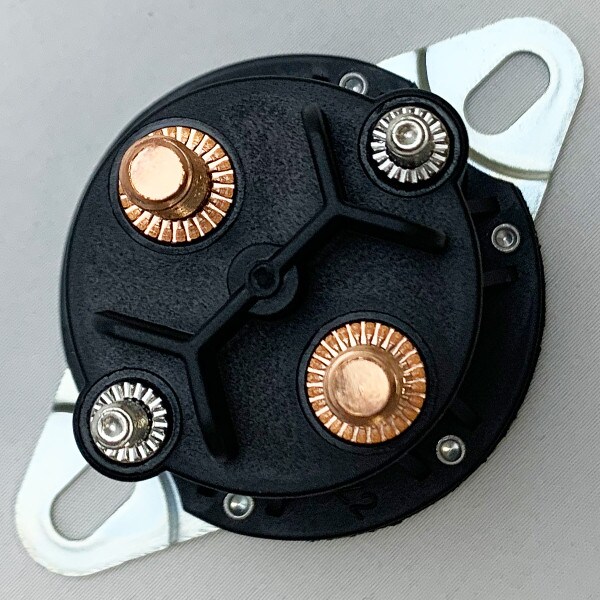

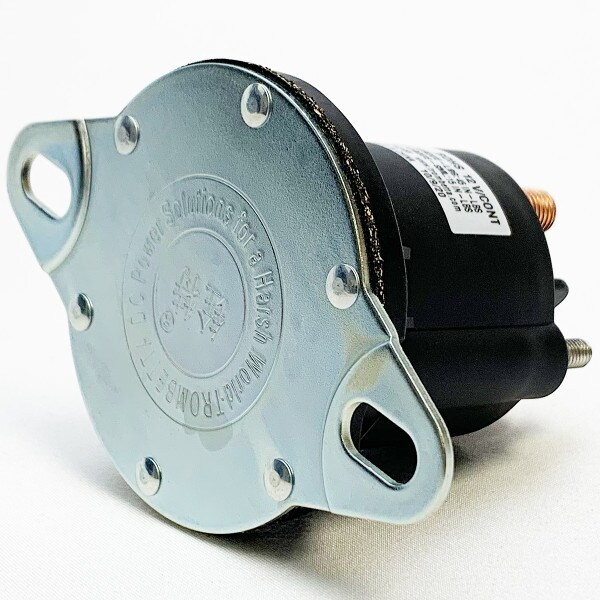

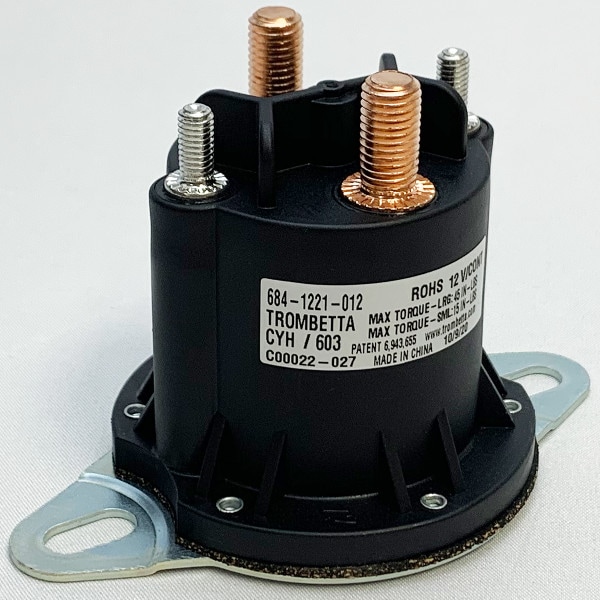

The unique design of the Trombetta 684-1221-012 PowerSeal DC Contactor allows it to be used in tough environmental conditions. If your application requires a sealed or submersible design, you must have the PowerSeal. Coil terminals: non-grounded, two (2)10-32; Contact studs: 5/16-24; Duty cycle: 100% continuous duty; Contact material: copper; 180 degree flat mounting bracket. Sealed design protects against dust and water jets.ÿ The PowerSeal?s IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again. Sales Bulletin: Continuous Duty PowerSeal FamilyDimensional Drawing: 684-XX21 (E08525)Installation Instructions: Non-Grounded PowerSeal ContactorHow To Order This Part



For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.



PowerSeal Family: 12 Volt DC Contractor Coil terminals: (2) non-grounded 10-32 studs; (2) 5/16-24; 100% continuous duty; copper contacts; flat bracket; sealed design.
