684-1241-212

(0) No Reviews yet
$13.49
SKU: Trombetta 684-1241-212

This item is IN STOCK

Current Stock: 64

Details

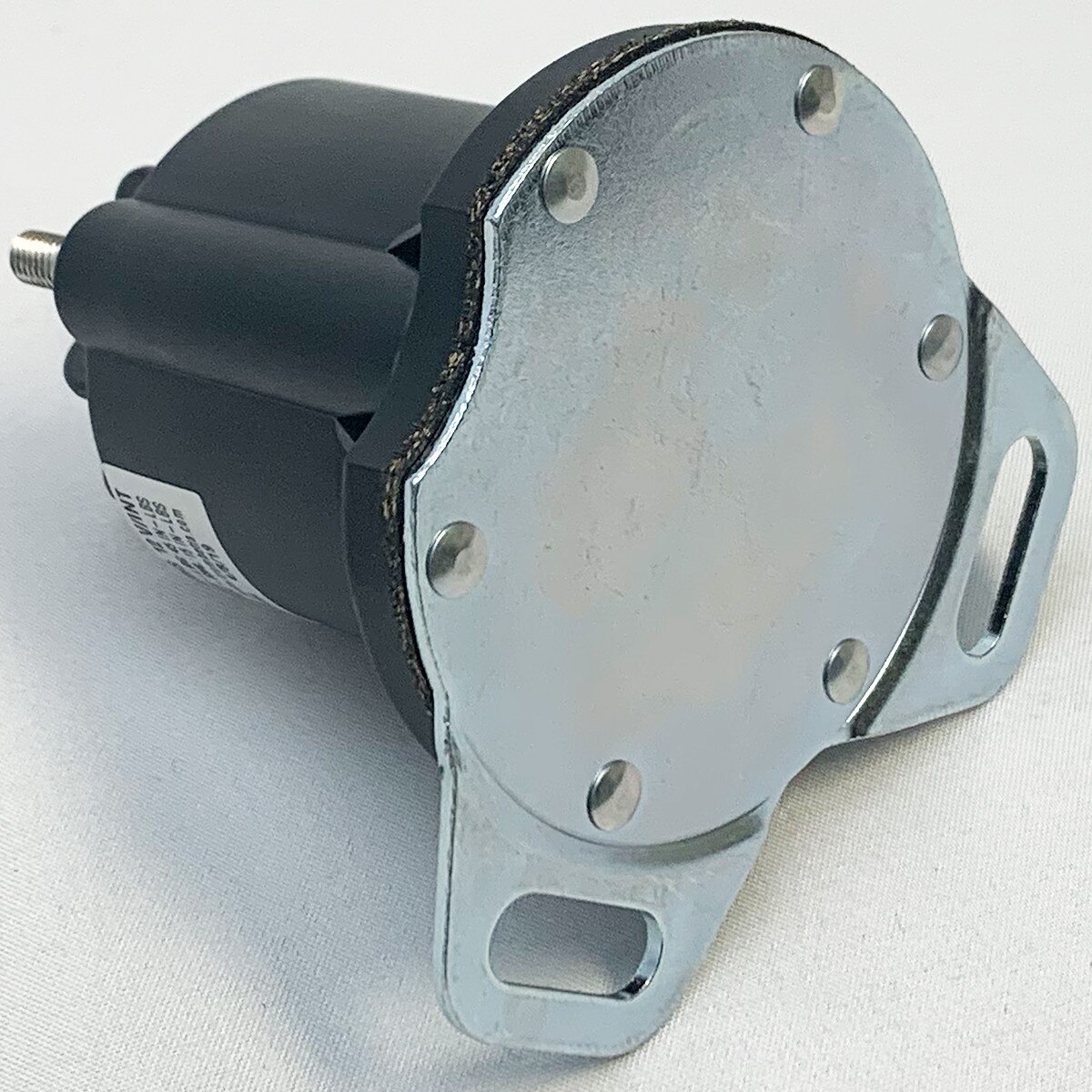

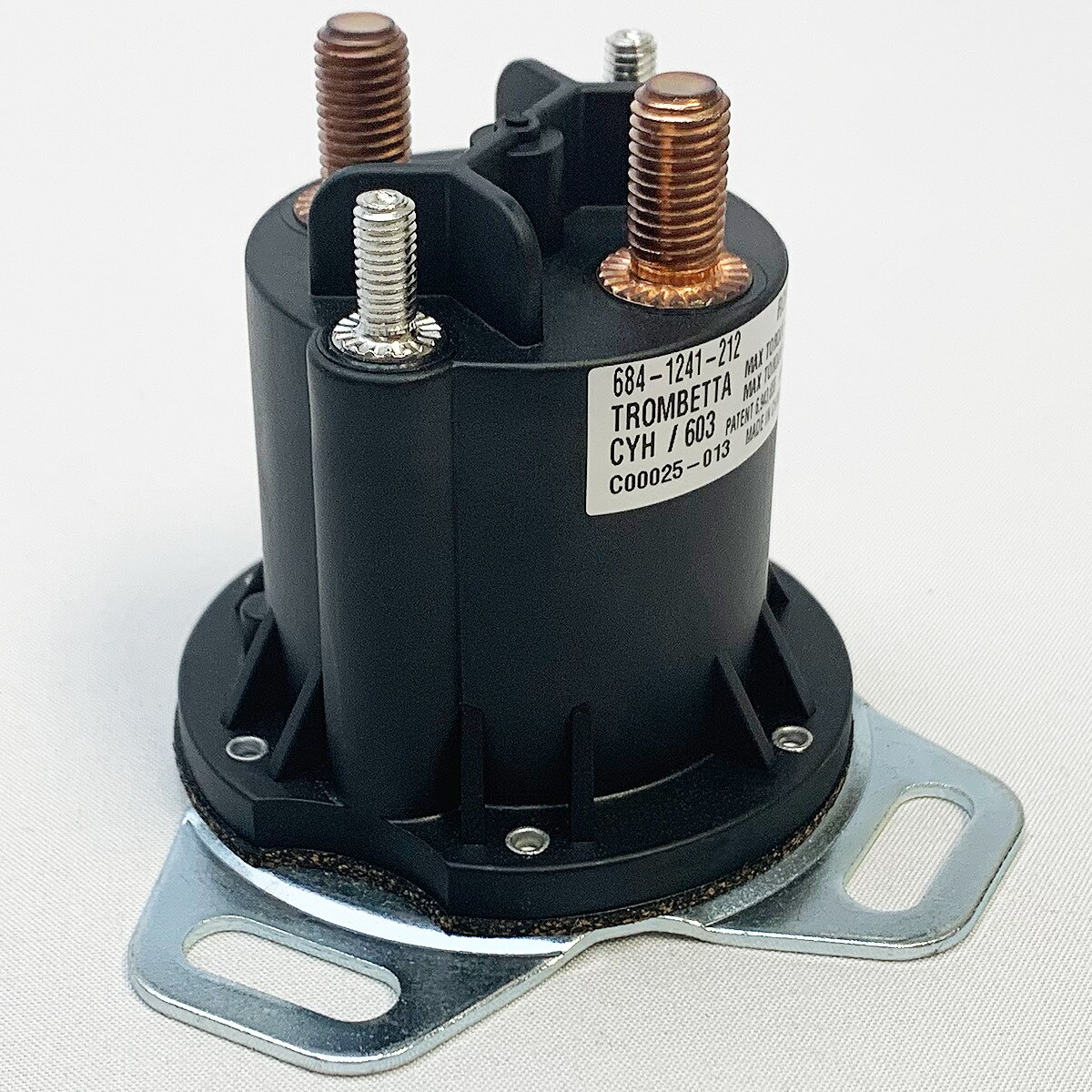

The unique design of the Trombetta 684-1241-212 PowerSeal DC Contactor allows it to be used in tough environmental conditions. If your application requires a sealed or submersible design, you must have the PowerSeal.

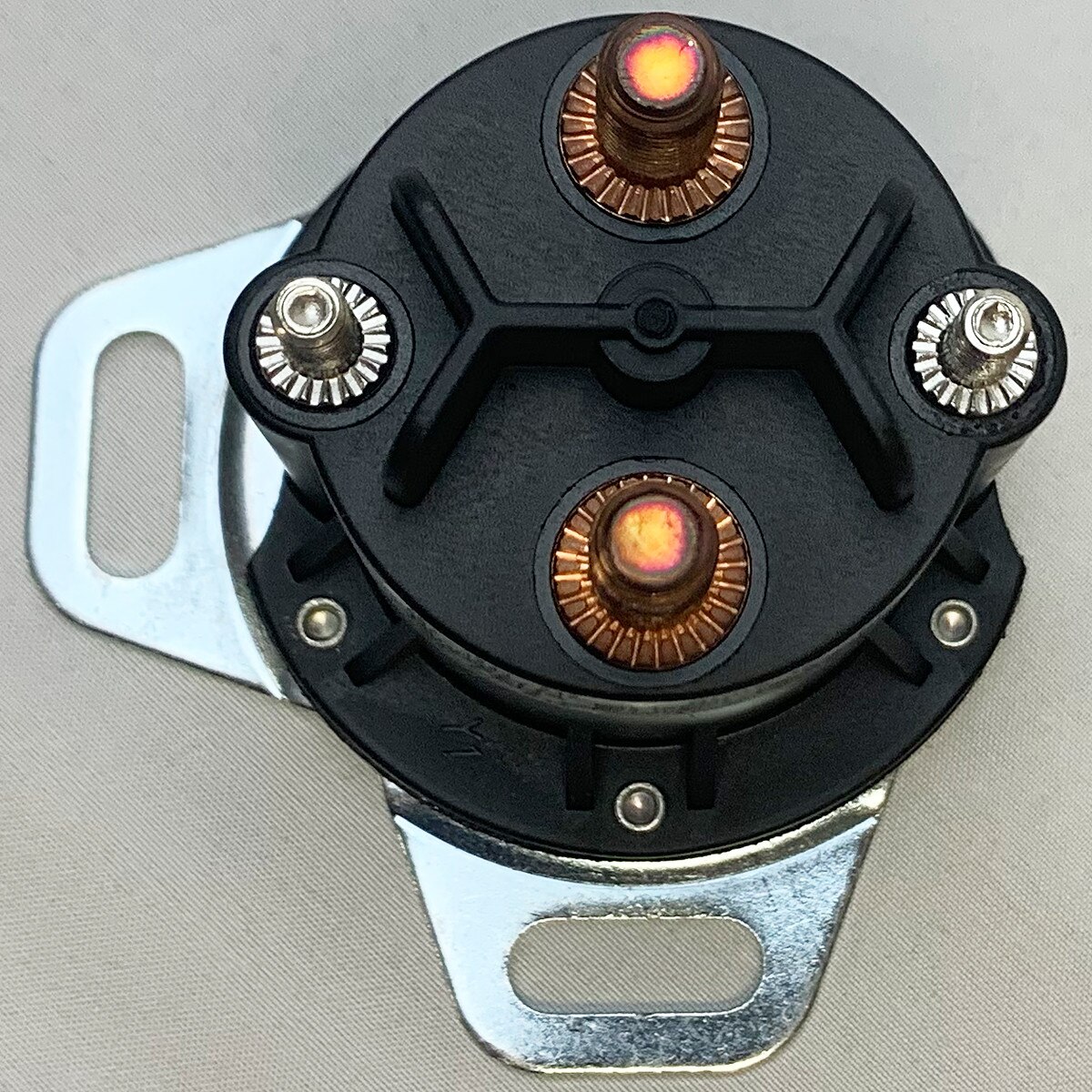

Coil terminals: non-grounded, two (2)10-32; Contact studs: 5/16-24; Duty cycle: 25% sustained (6 min. max on time); Contact material: copper; 90 degree mounting bracket. Sealed design protects against dust and water jets.

The PowerSeal?s IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.



Sales Bulletin: Intermittent Duty PowerSeal Family


Sales Bulletin: Continuous Duty PowerSeal Family


Dimensional Drawing: 684-XX41 (E08526)


Installation Instructions: Non-Grounded PowerSeal Contactor
