Trombetta PowerSeal Family: 12VDC Contactor (684-1241-212-06)

(0)No Reviews yet
$15.99
SKU: Trombetta 684-1241-212-06

This item is IN STOCK

Current Stock: 72

Trombetta PowerSeal Family: 12VDC Contactor; 4-terminals: (2) 5/16-24 high current studs; (2) non-grounded 10-32 studs, with spades; 25% intermittent duty; copper contacts; sealed design; 90 degree bracket (684-1241-212-06)


The unique design of the Trombetta 684-1241-212-06 PowerSeal DC Contactor allows it to be used in tough environmental conditions. If your application requires a sealed or submersible design, you must have the PowerSeal. Coil terminals: (2) 5/16-24 high current studs; (2) non-grounded 10-32 studs, with spades; 25% intermittent duty; copper contacts; sealed design; 90 degree bracket. Sealed design protects against dust and water jets.

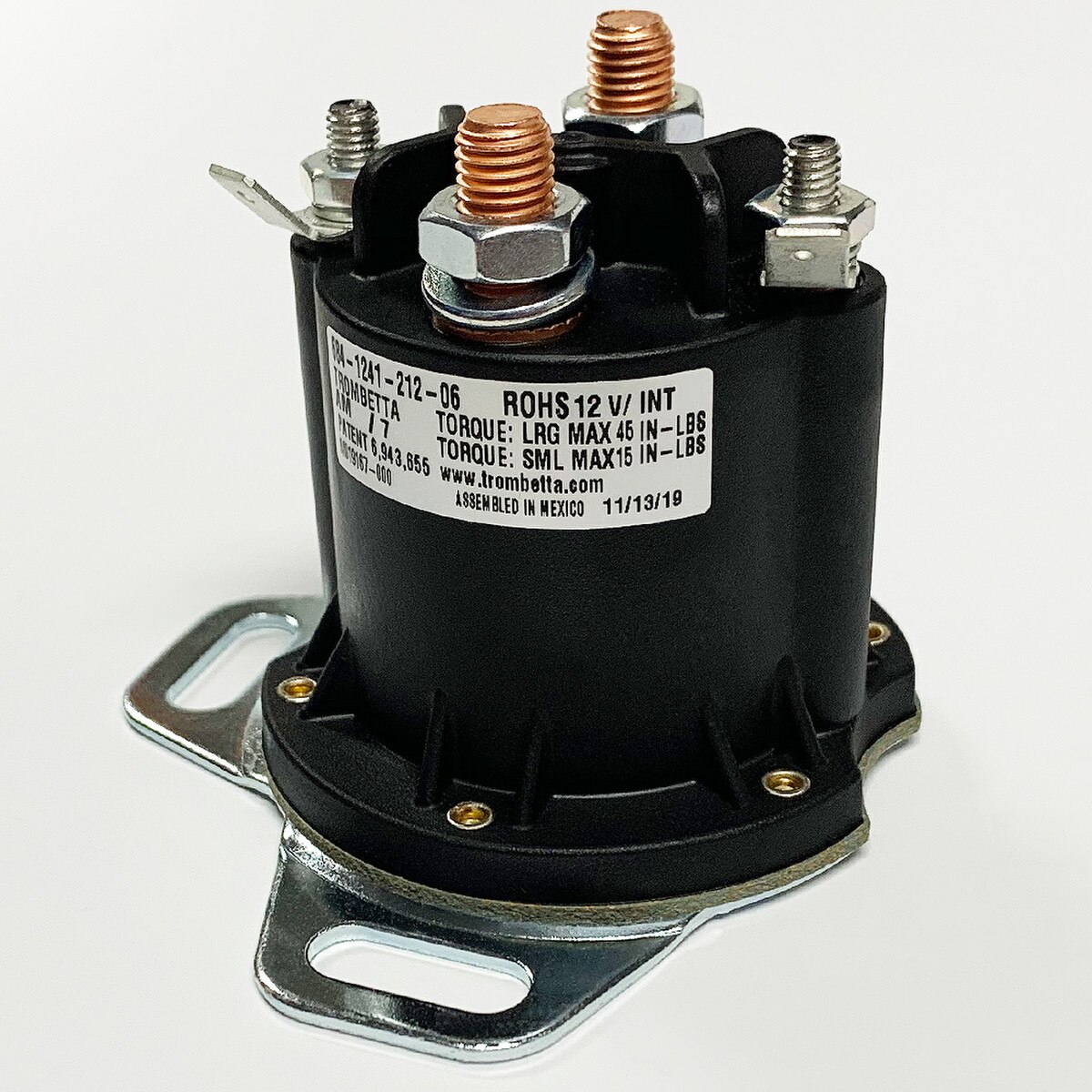

Image: Larger Front View

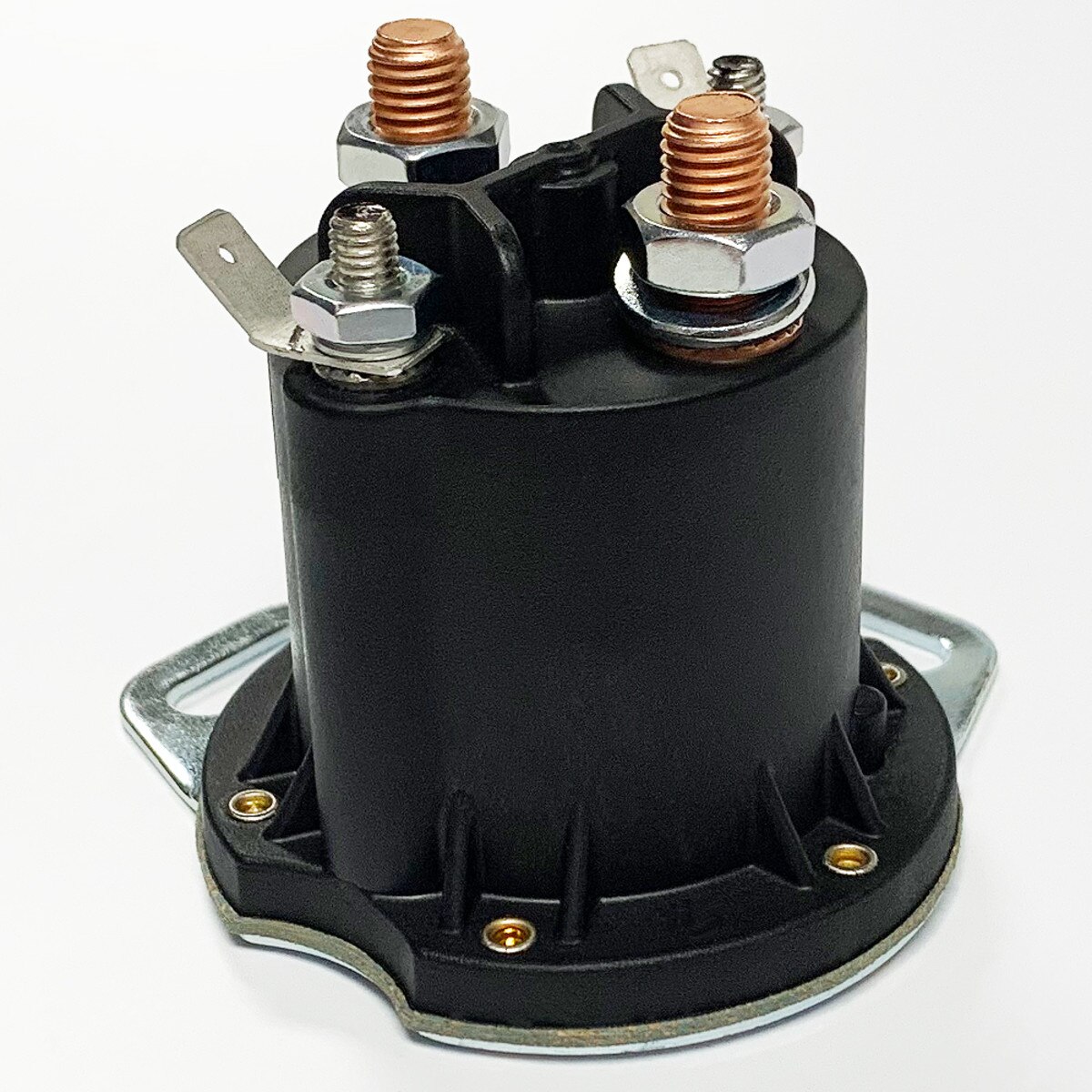

Image: Larger Rear View


The PowerSeal's IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.


Literature:


  1. Sales Bulletin: Intermittent Duty PowerSeal Family
  2. Dimensional Drawing: 684-XX41 (E08526)
  3. Installation Instructions: Non-Grounded PowerSeal Contactor
  4. How To Order This Part



MurCal is an Authorized Distributor of Trombetta products.


MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
